Exhaust Manifold: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: The exhaust manifold sealing surfaces are soft metals. Do not use abrasive grinding discs to remove gasket material; use only plastic manual scrapers. Do not scratch or gouge the aluminum sealing surfaces.
  1. Carefully clean both sealing surfaces.
    • Position a new gasket.
  2. Install the exhaust manifold and tighten using the sequence shown.

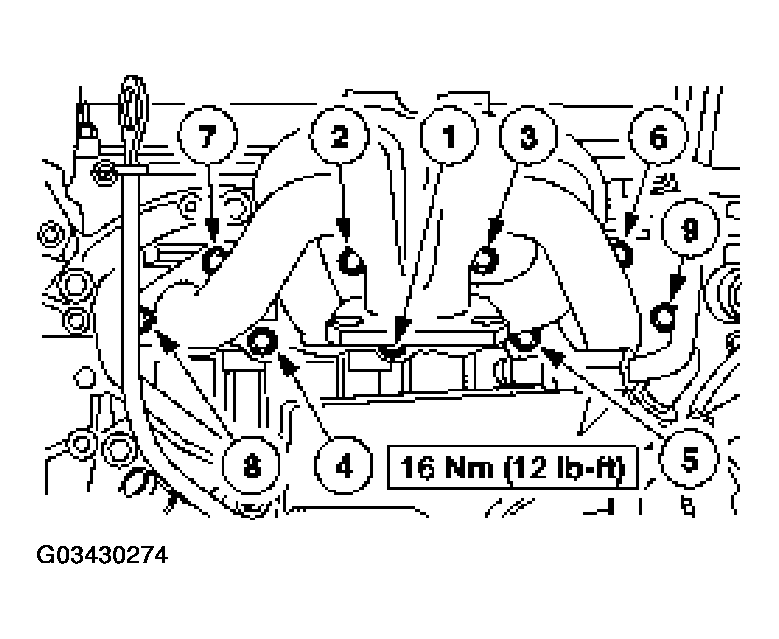

    Fig 1: Exhaust Manifold Nuts & Bolts Installation Sequence
    G03430274Courtesy of FORD MOTOR CO.
  3. Install the oil level indicator and tube.

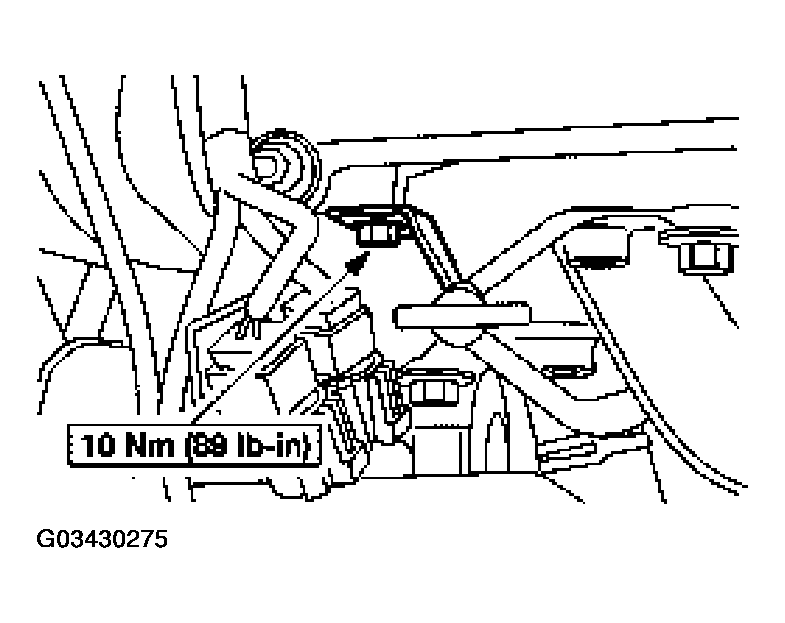

    Fig 2: Installing Oil Level Indicator & Tube
    G03430275Courtesy of FORD MOTOR CO.
  4. Install the catalytic converter.
