Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

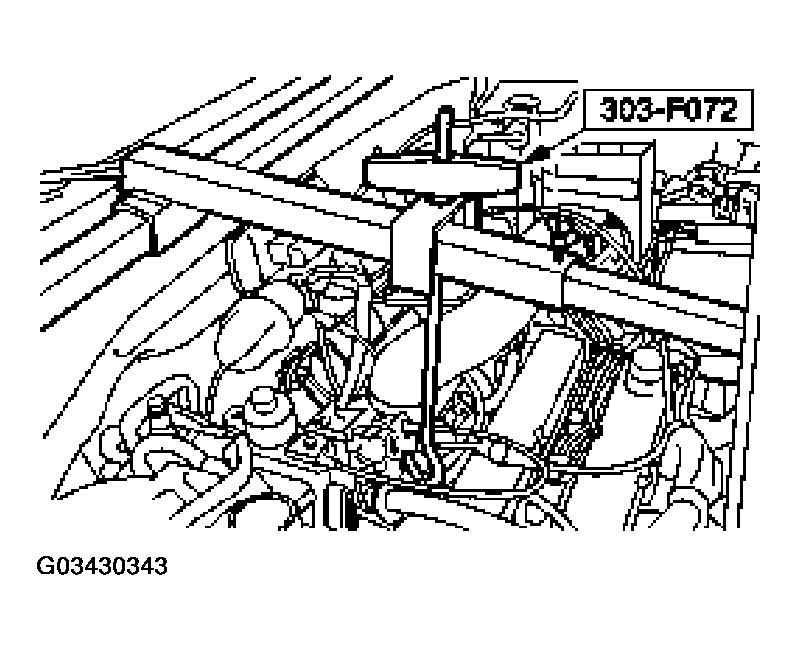

Install the special tool.

Fig 1: Installing Special Tool
Courtesy of FORD MOTOR CO.

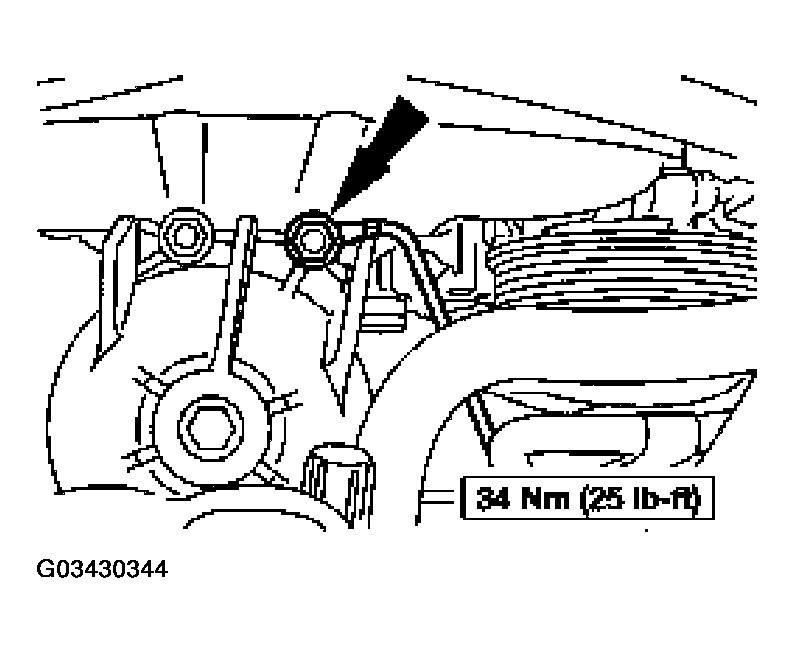

Disconnect the ground strap.

Fig 2: Disconnecting Ground Strap
Courtesy of FORD MOTOR CO.

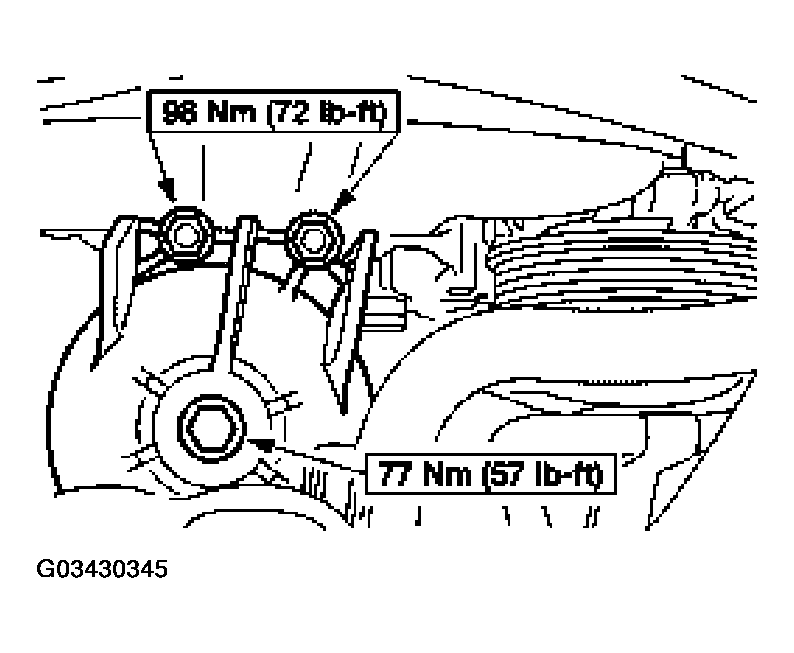

Remove the engine mount upper bracket.

Fig 3: Removing Engine Mount Upper Bracket
Courtesy of FORD MOTOR CO.
Disconnect the ground wire.

Fig 4: Disconnecting Ground Wire
Courtesy of FORD MOTOR CO.
Disconnect the power steering line bracket.

Fig 5: Disconnecting Power Steering Line Bracket
Courtesy of FORD MOTOR CO.
Disconnect the power steering line bracket and position the line aside.

Fig 6: Disconnecting Power Steering Line Bracket
Courtesy of FORD MOTOR CO.

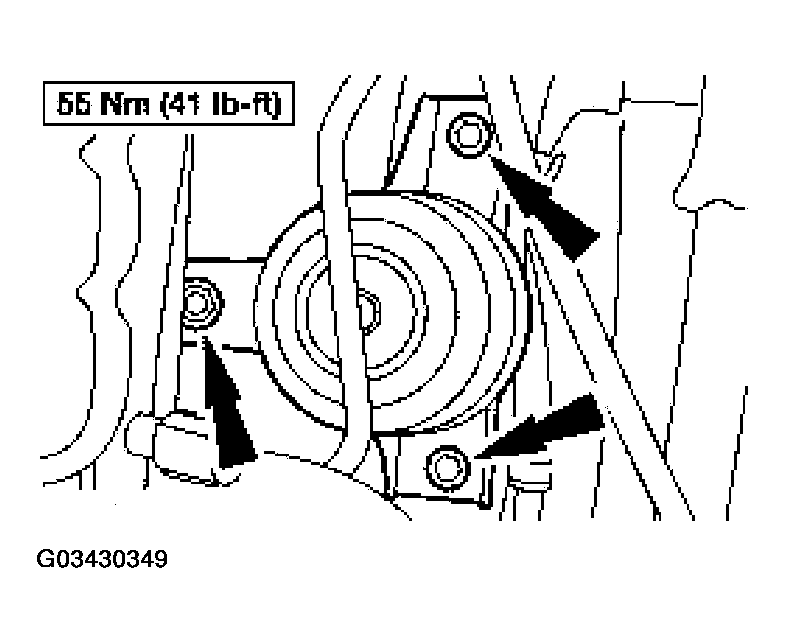

Remove the engine mount.

Fig 7: Removing Engine Mount
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
