Cylinder Head: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine coolant. For additional information, refer to ENGINE COOLING .
  2. Relieve the fuel system pressure. For additional information, refer to REMOVAL, OVERHAUL & INSTALLATION .
  3. Remove the valve tappets. For additional information, refer to VALVE TAPPETS .
  4. Remove the generator. For additional information, refer to GENERATORS & REGULATORS .
  5. Disconnect the vacuum hose.

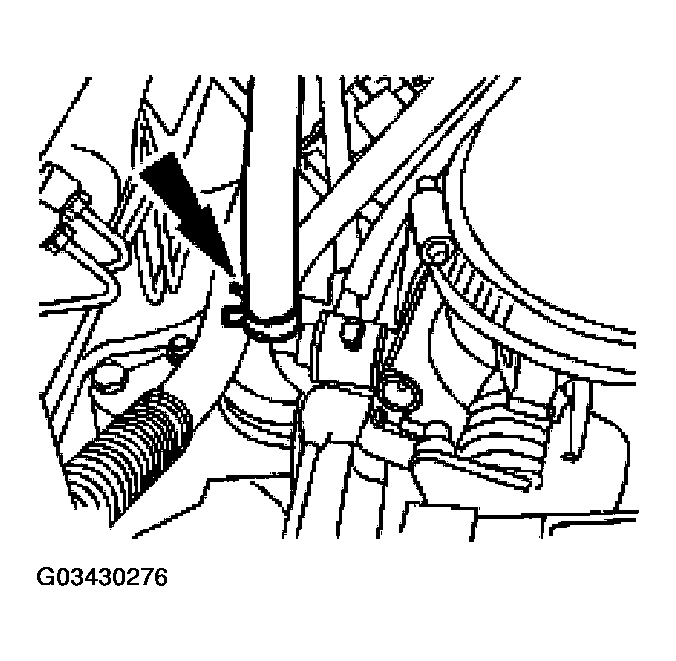

    Fig 1: Removing Generator
    G03430276Courtesy of FORD MOTOR CO.
  6. Disconnect the vacuum hose.

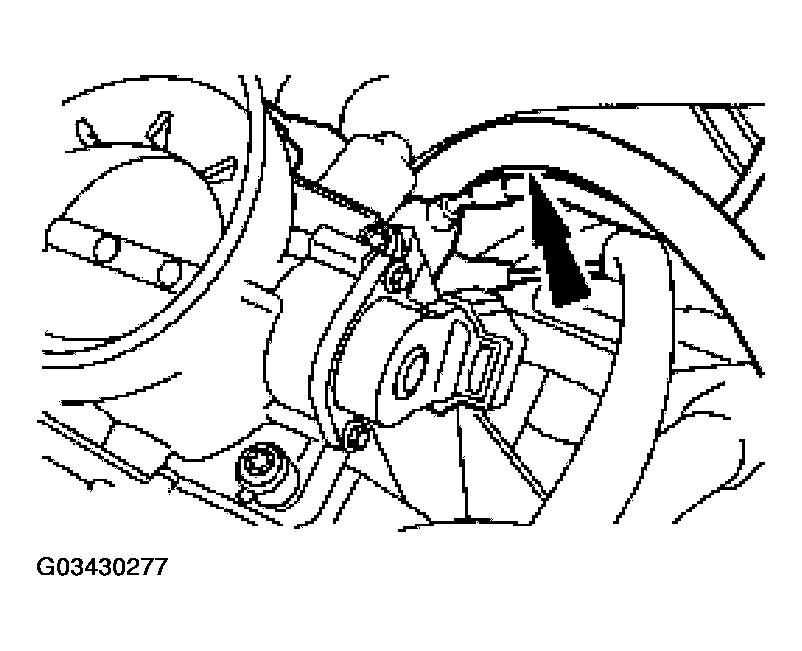

    Fig 2: Disconnecting Vacuum Hose
    G03430277Courtesy of FORD MOTOR CO.

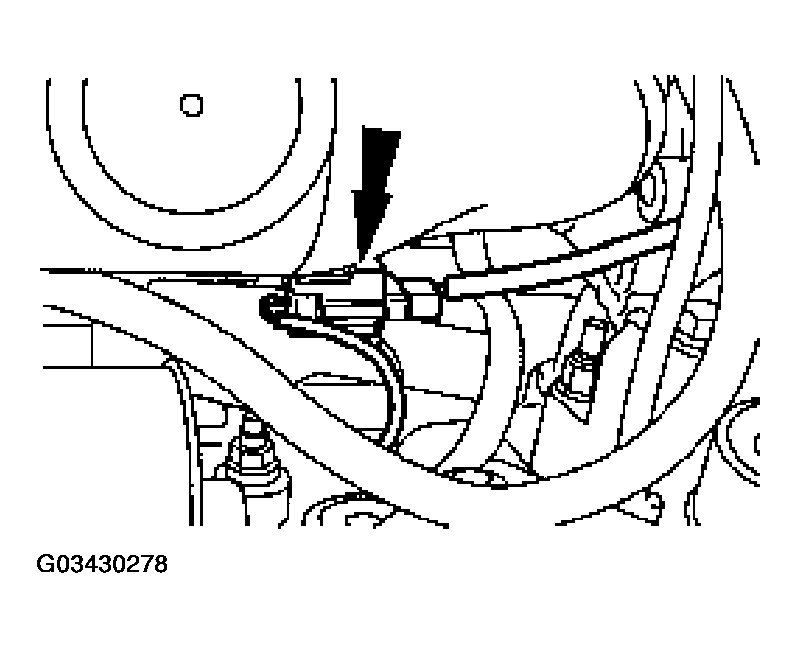

  7. Disconnect the knock sensor (KS) electrical connector.
    Fig 3: Disconnecting Knock Sensor (KS) Electrical Connector
    G03430278Courtesy of FORD MOTOR CO.
  8. Disconnect the cylinder head temperature (CHT) sensor electrical connector.

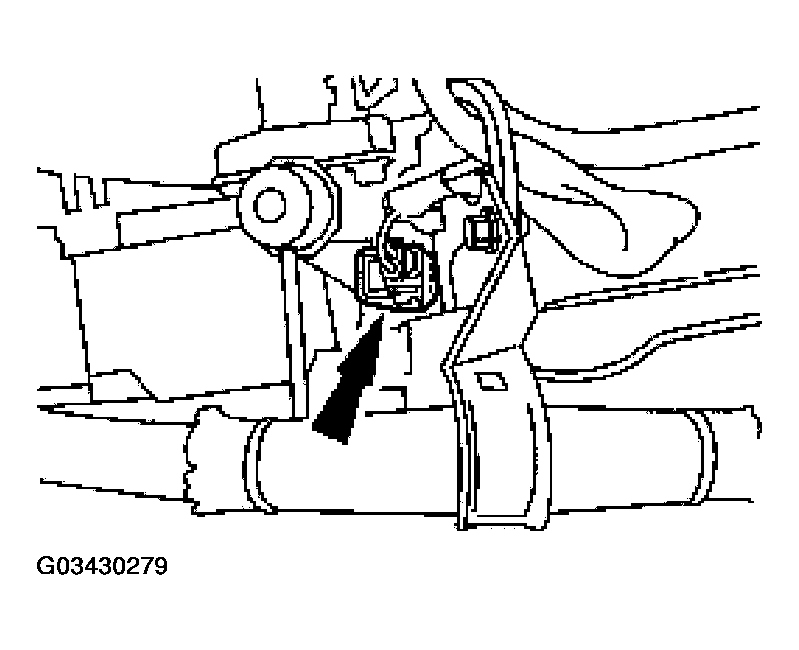

    Fig 4: Disconnecting Cylinder Head Temperature (CHT) Sensor Electrical Connector
    G03430279Courtesy of FORD MOTOR CO.

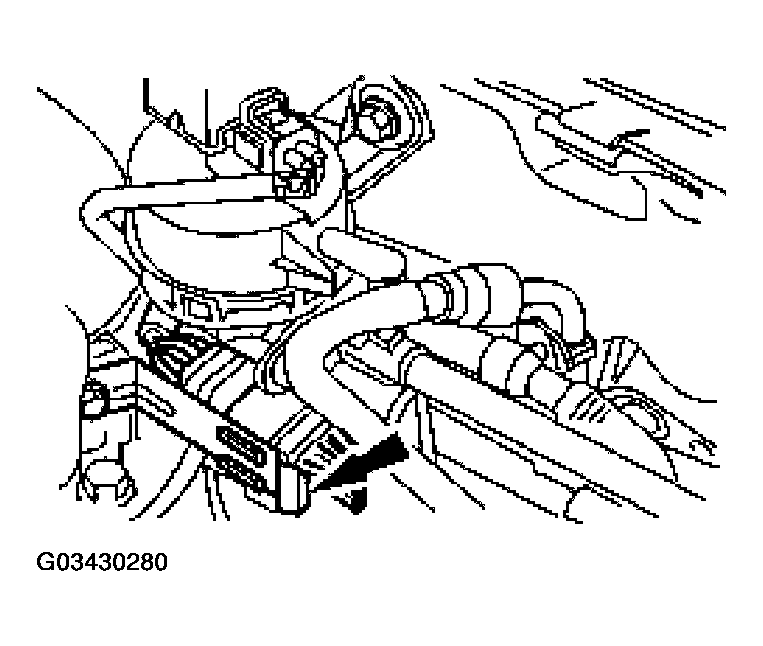

  9. Detach the fuel charging wiring harness.
    Fig 5: Detaching Fuel Charging Wiring Harness
    G03430280Courtesy of FORD MOTOR CO.
  10. Remove the bolt from the accelerator cable support bracket.

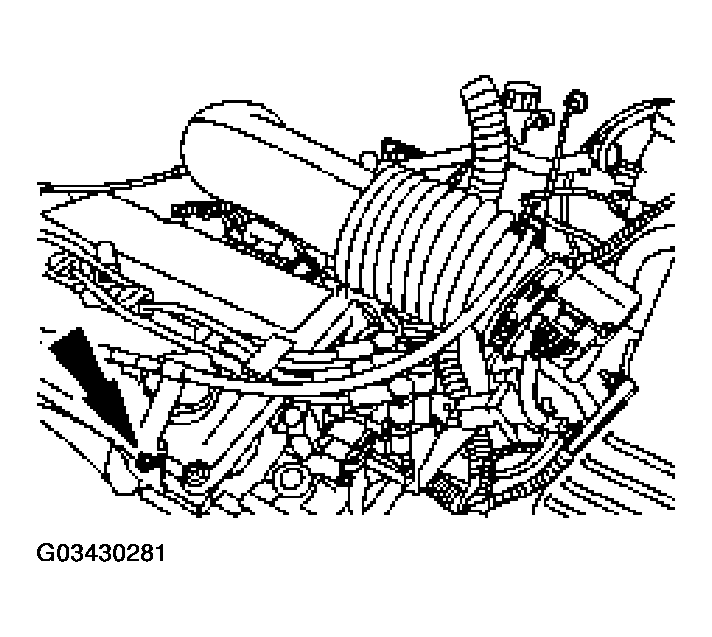

    Fig 6: Removing Bolt From Accelerator Cable Support Bracket
    G03430281Courtesy of FORD MOTOR CO.
  11. Remove the bolt from the generator mounting bracket.
    Fig 7: Removing Bolt From Generator Mounting Bracket
    G03430282Courtesy of FORD MOTOR CO.

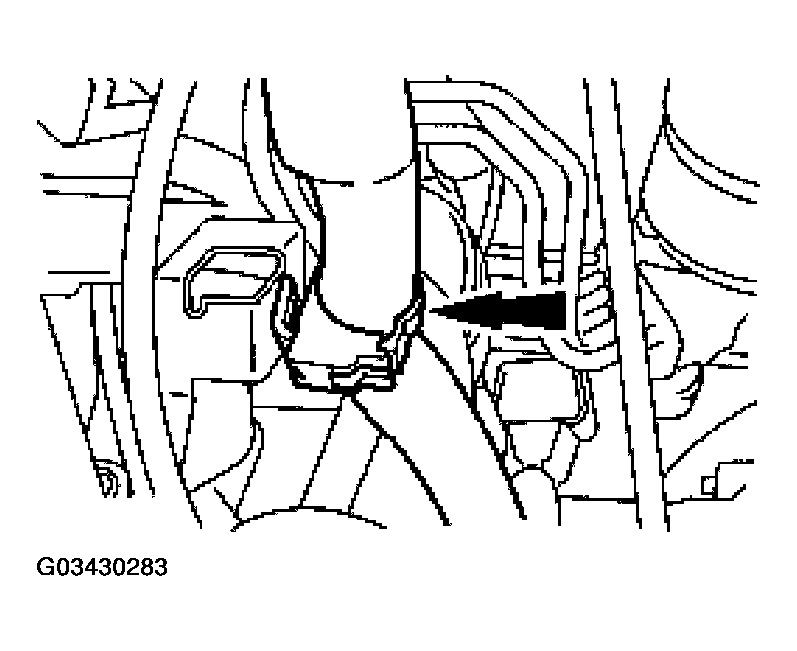

  12. Disconnect the wiring harness retainer from the intake manifold.
    Fig 8: Disconnecting Wiring Harness Retainer From Intake Manifold
    G03430283Courtesy of FORD MOTOR CO.

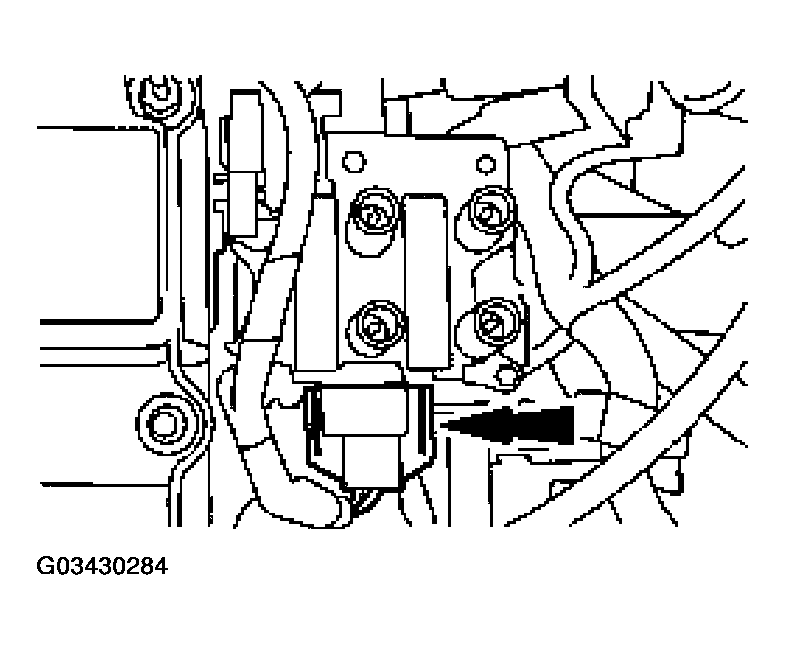

  13. Disconnect the ignition coil and the radio interference suppressor electrical connectors.
    Fig 9: Disconnecting Ignition Coil
    G03430284Courtesy of FORD MOTOR CO.
  14. Remove the bolt from the power steering pressure hose support bracket.

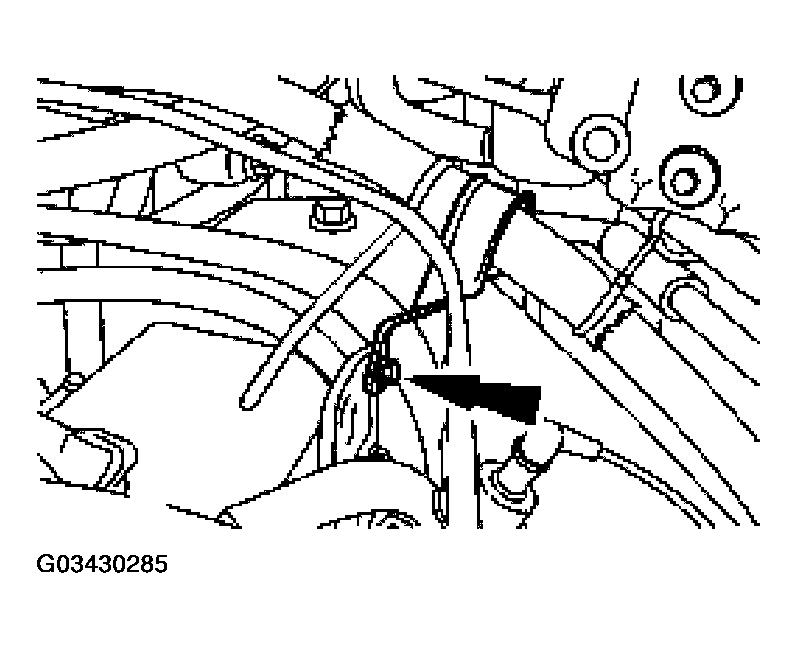

    Fig 10: Removing Bolt From Power Steering Pressure Hose Support Bracket
    G03430285Courtesy of FORD MOTOR CO.

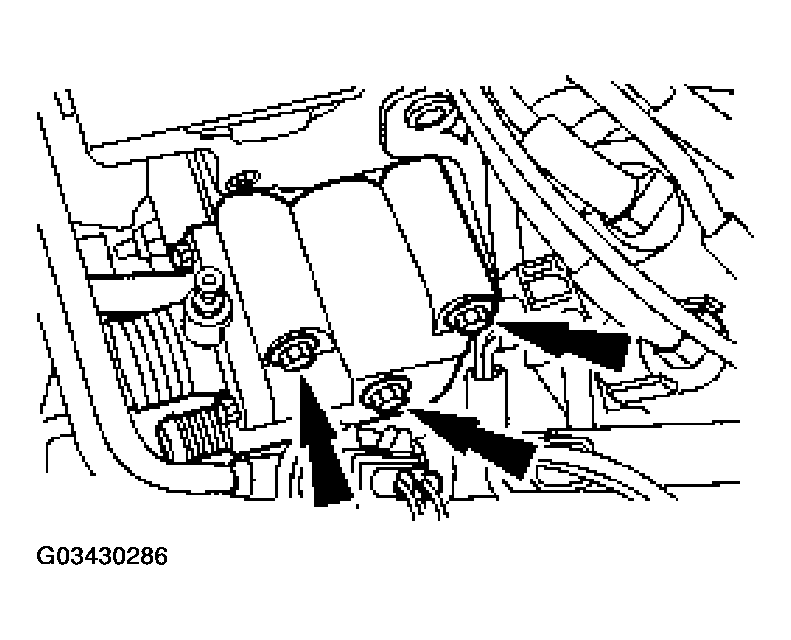

  15. Position the thermostat housing aside.
    • Disconnect the electrical harness retainer.
    • Remove the bolts.
    Fig 11: Disconnecting Electrical Harness Retainer
    G03430286Courtesy of FORD MOTOR CO.

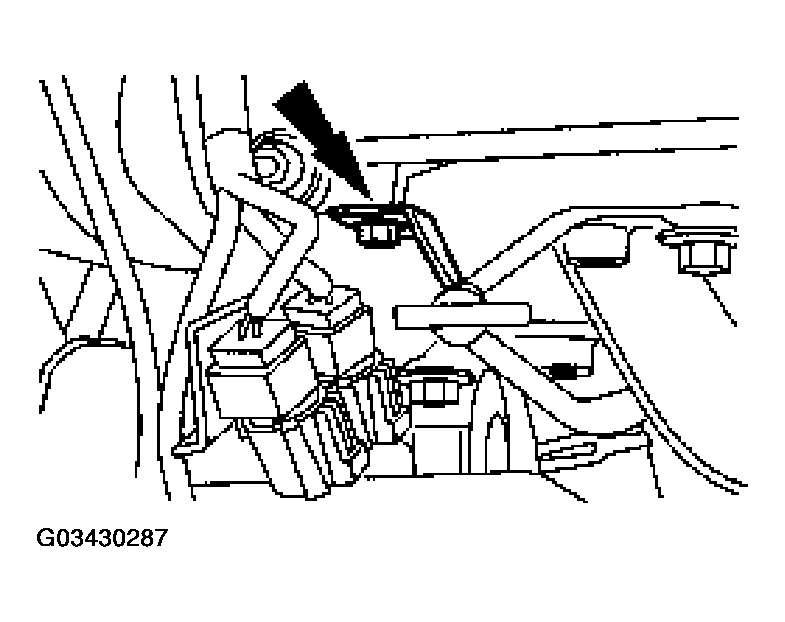

  16. Remove the bolt and the oil level indicator tube.
    Fig 12: Removing Bolt & Oil Level Indicator Tube
    G03430287Courtesy of FORD MOTOR CO.
  17. Using the special tool, disconnect the fuel lines.

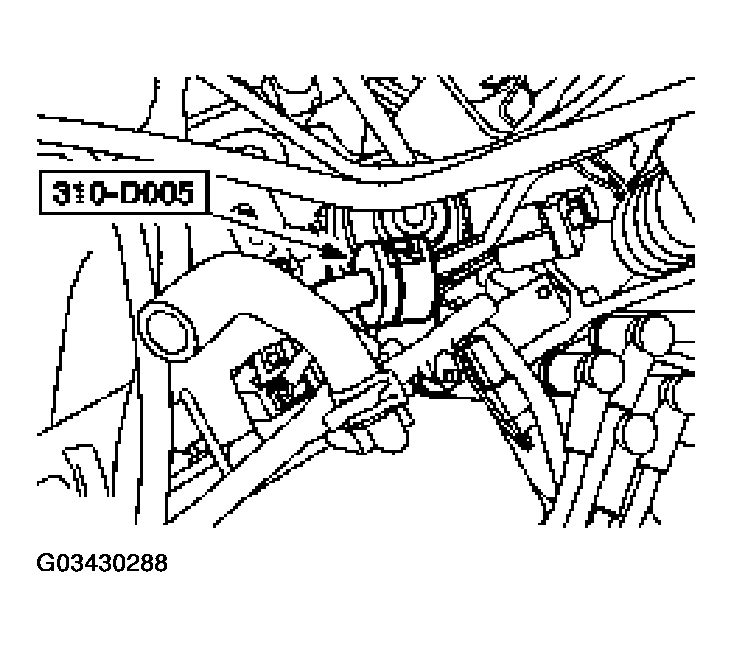

    Fig 13: Disconnecting Fuel Lines
    G03430288Courtesy of FORD MOTOR CO.

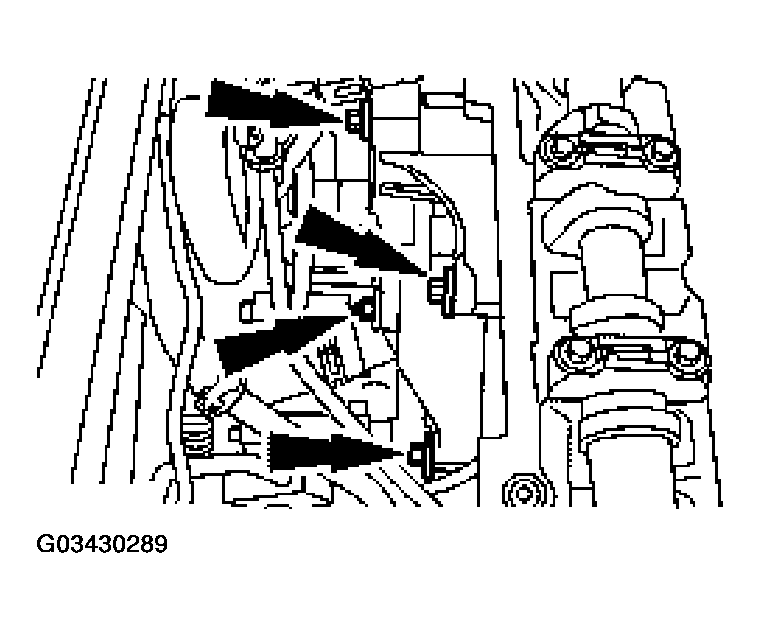

  18. Remove the power steering bracket retainers and position aside.
    Fig 14: Removing Power Steering Bracket Retainers
    G03430289Courtesy of FORD MOTOR CO.
  19. Raise the vehicle.

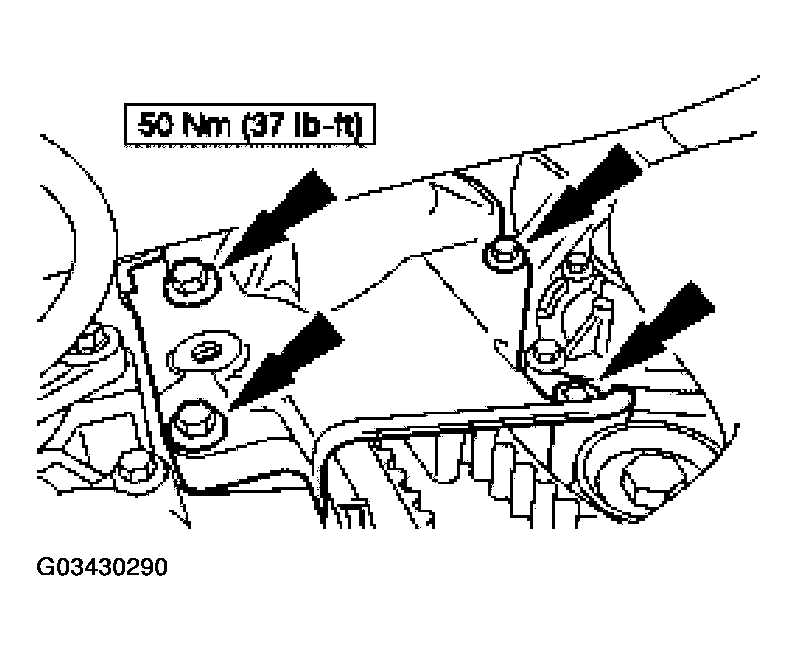

  20. Install the engine mount lower bracket.
    Fig 15: Installing Engine Mount Lower Bracket
    G03430290Courtesy of FORD MOTOR CO.
  21. Lower the vehicle.

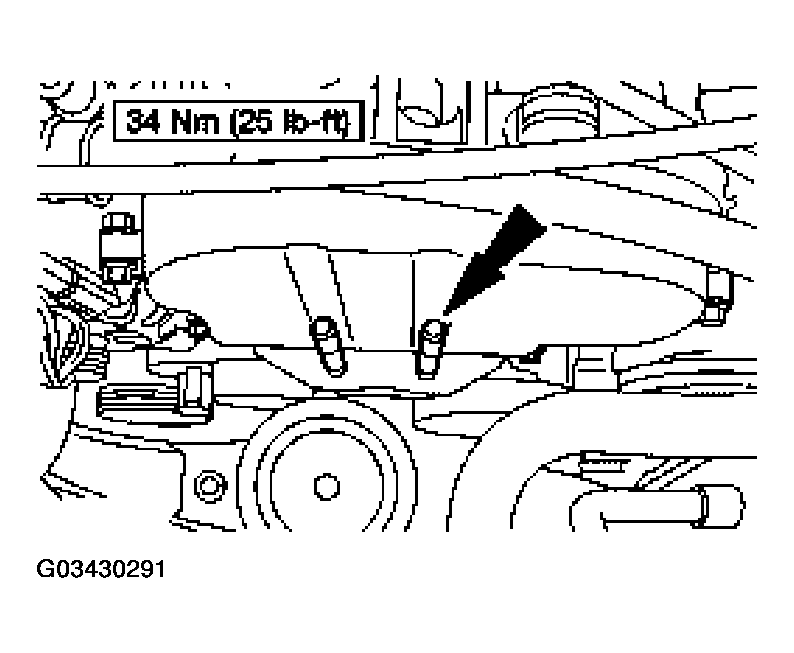

  22. Install the studs.
    Fig 16: Installing Studs
    G03430291Courtesy of FORD MOTOR CO.

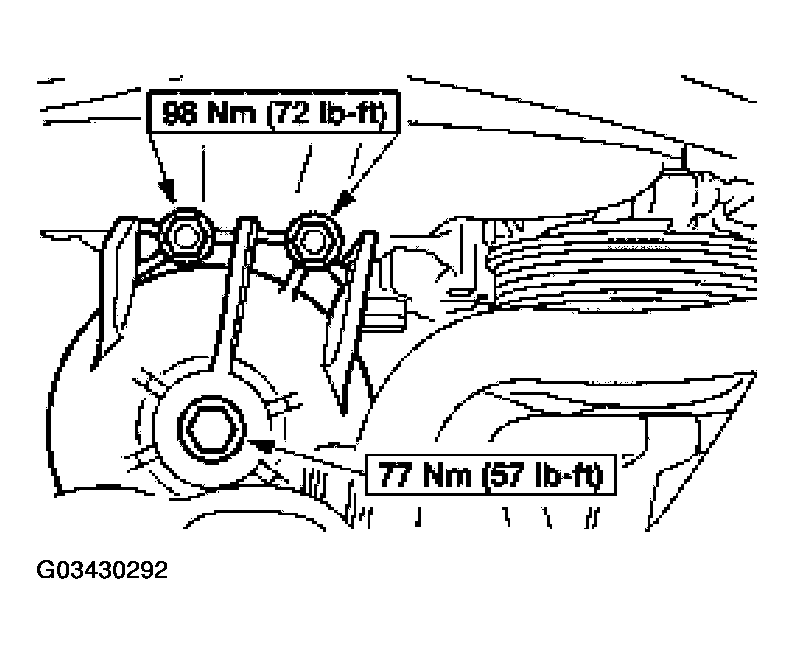

  23. Install the engine mount upper bracket.
    Fig 17: Installing Engine Mount Upper Bracket
    G03430292Courtesy of FORD MOTOR CO.
  24. Remove the special tool.

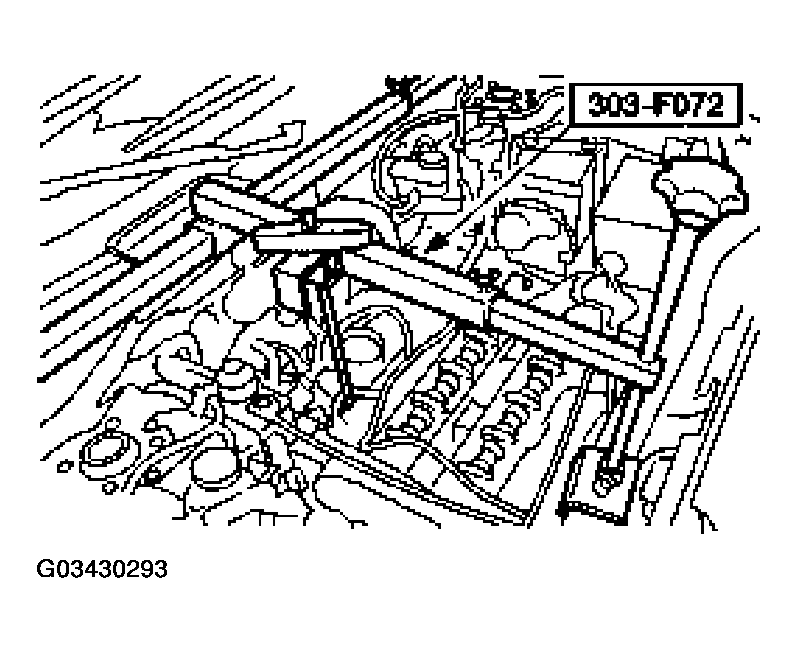

    Fig 18: Removing Special Tool
    G03430293Courtesy of FORD MOTOR CO.
    25. CAUTION: The bolts are torque-to-yield, new bolts must be installed or engine damage can occur.

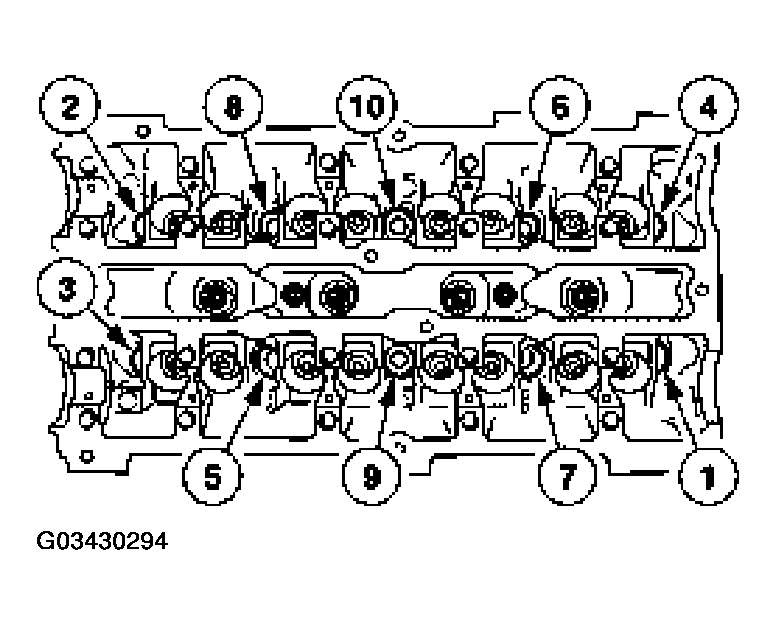

    Fig 19: Identifying Cylinder Head Bolts Removal Sequence
    G03430294Courtesy of FORD MOTOR CO.
  25. Remove the cylinder head bolts in the sequence shown and remove the cylinder head.
    • Discard the gasket.
    • Discard the bolts.
