Crankshaft Rear Oil Seal: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flywheel. For additional information, refer to FLYWHEEL .
    2. CAUTION: Use care to avoid damaging the crankshaft sealing surface.

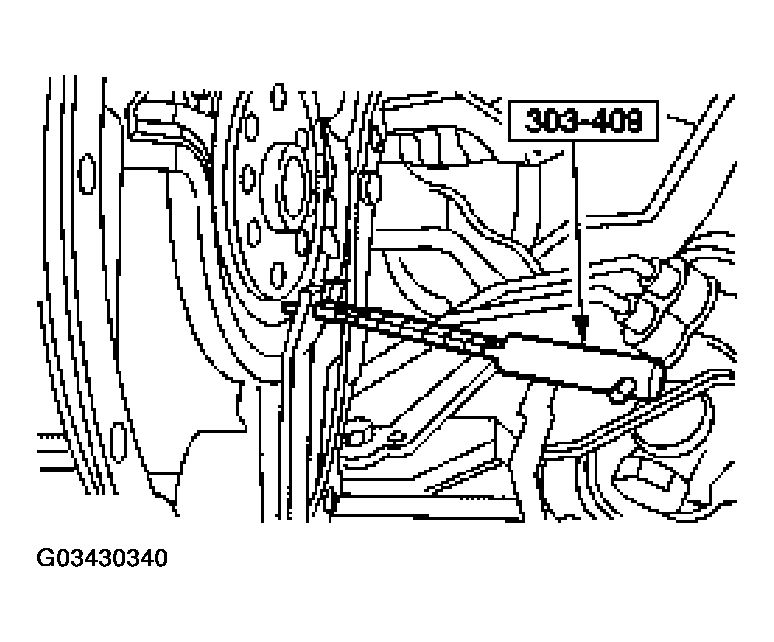

    Fig 1: Removing Crankshaft Rear Oil Seal
    G03430340Courtesy of FORD MOTOR CO.
  2. Using the special tool, remove the crankshaft rear oil seal.
  3. Inspect the crankshaft rear oil seal area.
