Crankshaft Rear Oil Seal: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Coat the rear oil seal area and the crankshaft rear oil seal lip with Super Premium SAE 5W-20 Motor Oil or equivalent meeting Ford specification WSS-M2C153-H.
    NOTE: Make sure the crankshaft rear oil seal is on correctly and that the edges are not rolled over.

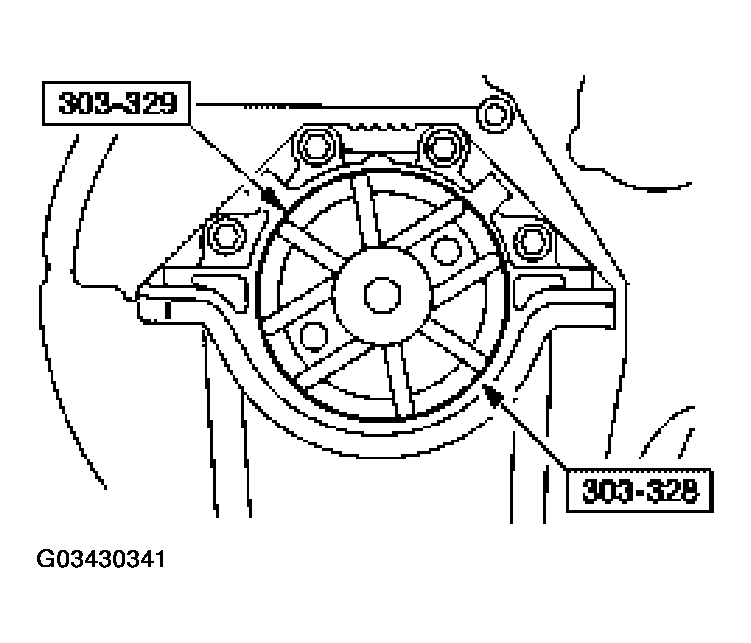

    Fig 1: Installing Crankshaft Rear Oil Seal
    G03430341Courtesy of FORD MOTOR CO.
  1. Using the special tools, install the crankshaft rear oil seal.
  2. Install the flywheel. For additional information, refer to FLYWHEEL .
