Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the RF wheel and tire assembly.
  3. Remove the bolts and the RH lower splash shield.

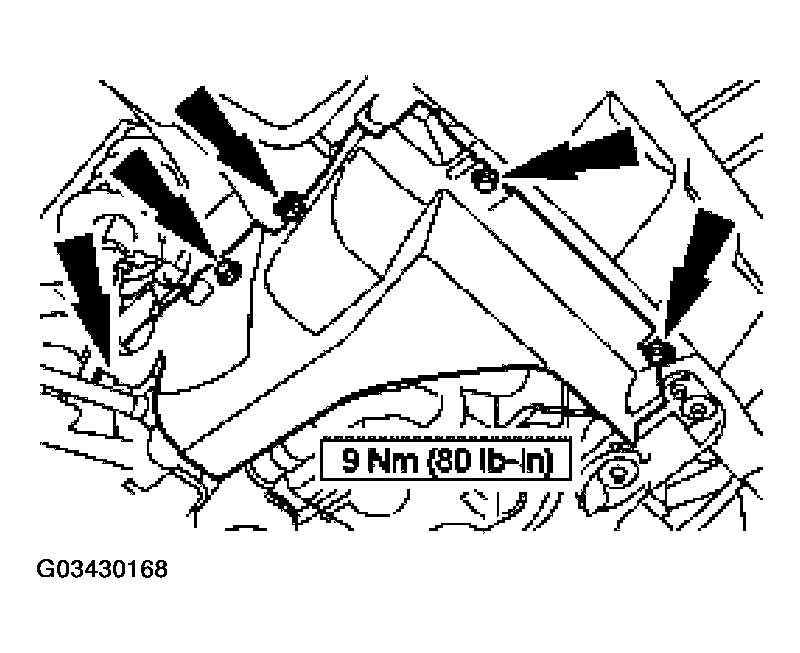

    Fig 1: Removing Bolts & RH Lower Splash Shield
    G03430168Courtesy of FORD MOTOR CO.
  4. Loosen the bolt retaining the crankshaft pulley.

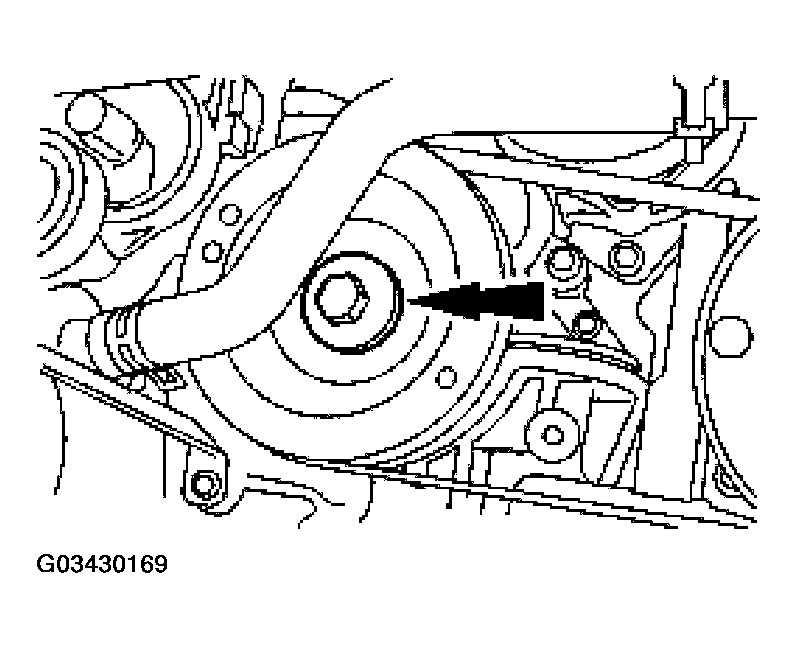

    Fig 2: Loosening Bolt Retaining Crankshaft Pulley
    G03430169Courtesy of FORD MOTOR CO.
  5. Remove the accessory drive belt.
    Fig 3: Removing Accessory Drive Belt
    G03430170Courtesy of FORD MOTOR CO.
  6. Remove the bolt and the crankshaft pulley.

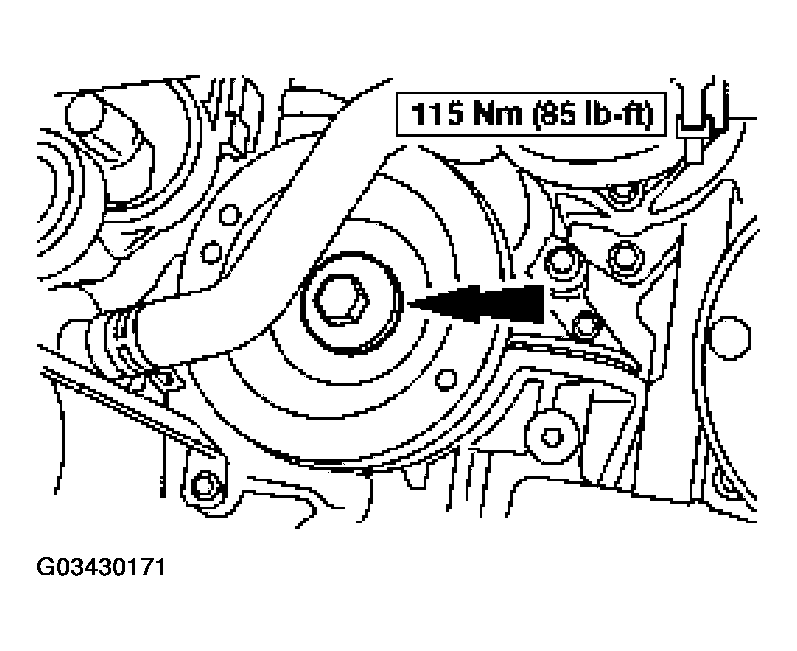

    Fig 4: Removing Bolt & Crankshaft Pulley
    G03430171Courtesy of FORD MOTOR CO.
  7. To install, reverse the removal procedure.
