Camshaft Oil Seal: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Remove the camshaft timing sprockets. For additional information, refer to TIMING DRIVE COMPONENTS - TIMING SPROCKETS .

NOTE: The exhaust camshaft oil seal is shown, the intake camshaft oil seal is similar.

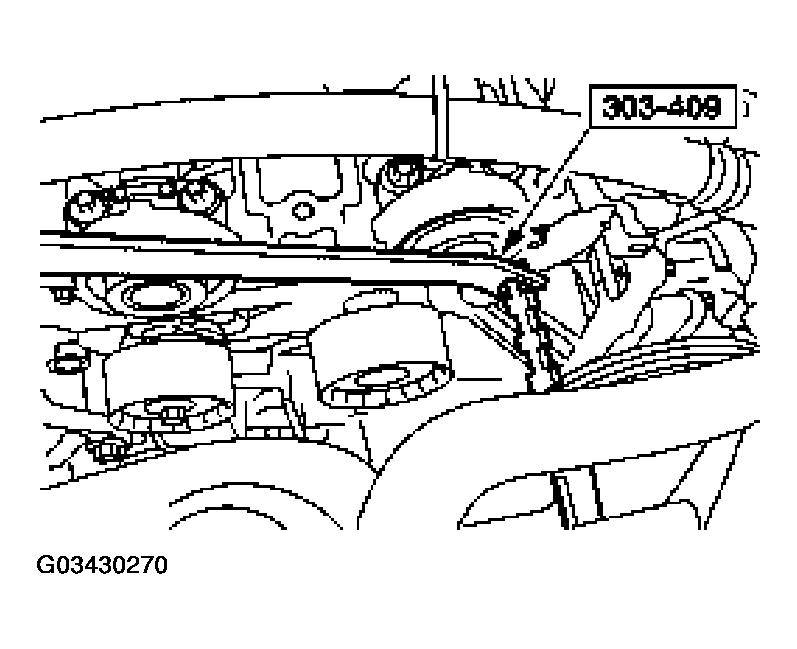

Fig 1: Removing Camshaft Oil Seals

Courtesy of FORD MOTOR CO.

Using the special tool, remove the camshaft oil seals.
