Piston - Pin Connecting Rod Assembly, Press Fit: Disassembly

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the Piston Pin Tool to press the piston pin out from the piston assembly and connecting rod.

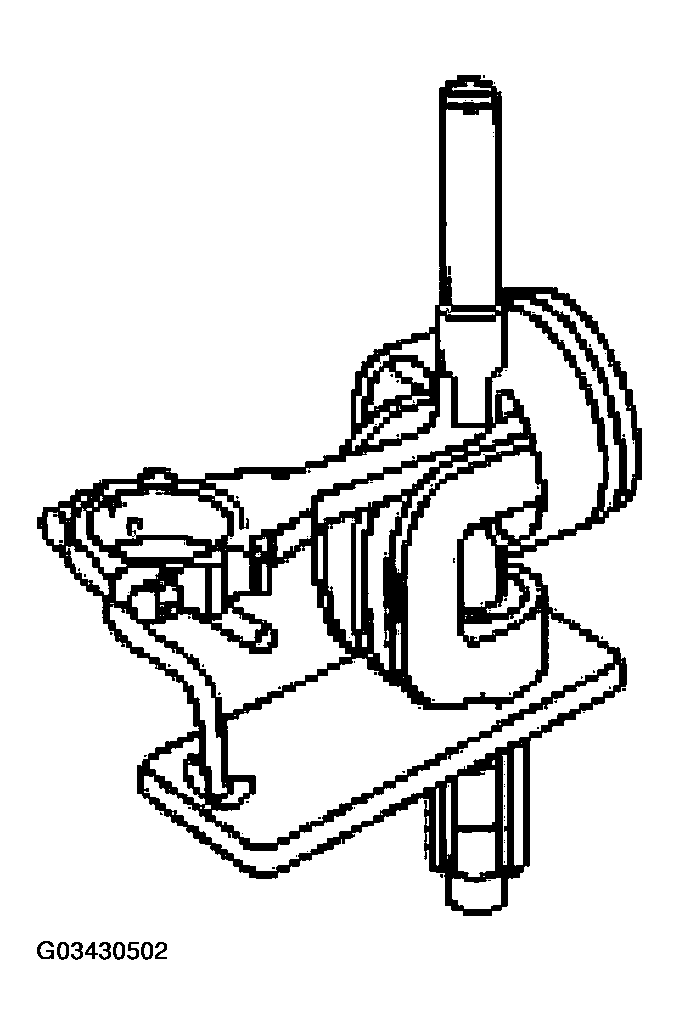

    Fig 1: Pressing Piston Pin Out From Piston Assembly
    G03430502Courtesy of FORD MOTOR CO.
  2. Remove the connecting rod and piston rings from the piston.

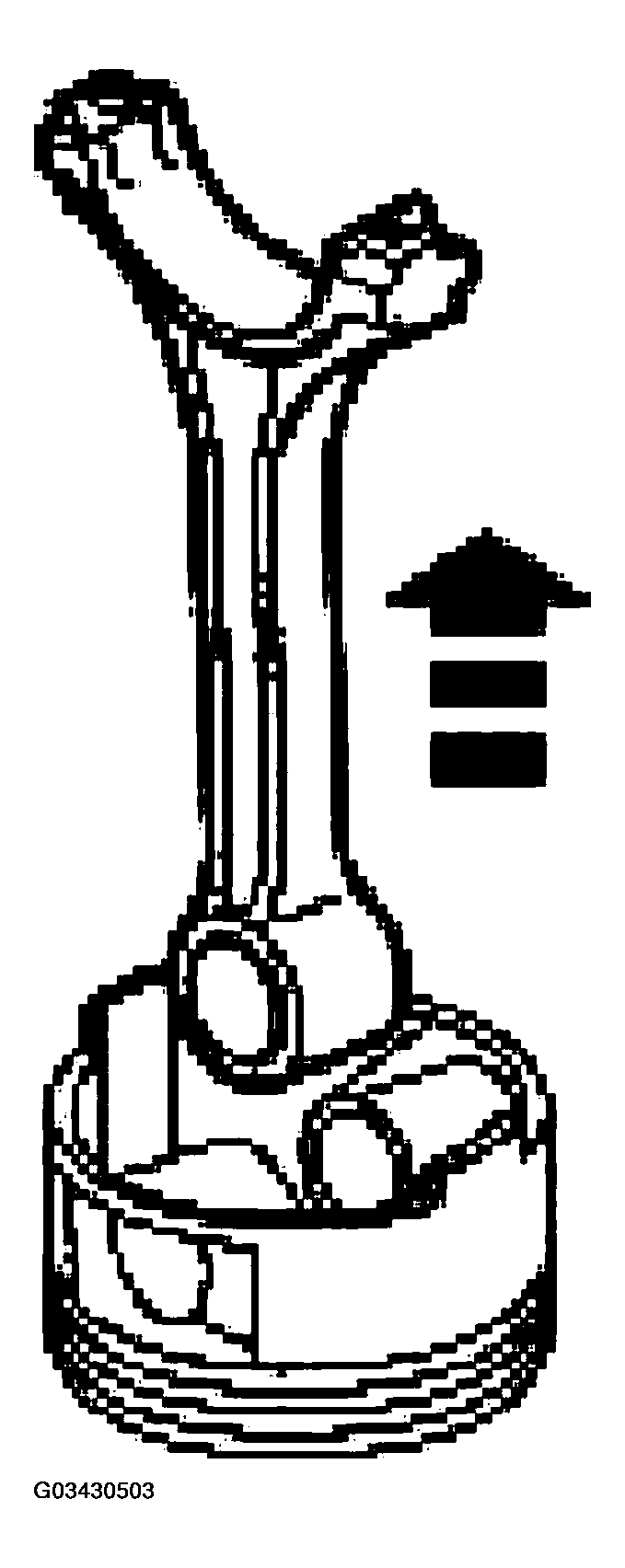

    Fig 2: Removing Connecting Rod & Piston Rings From Piston
    G03430503Courtesy of FORD MOTOR CO.
  3. Clean and inspect the piston, piston pin and connecting rod. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
