Piston - Pin Connecting Rod Assembly, Press Fit: Assembly

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: PIP mark on pistons and squirt groove on connecting rods must be located on the intake side of engine or possible engine damage may occur.

CAUTION: The arrow on the piston must point toward the front of the engine or engine damage may occur.

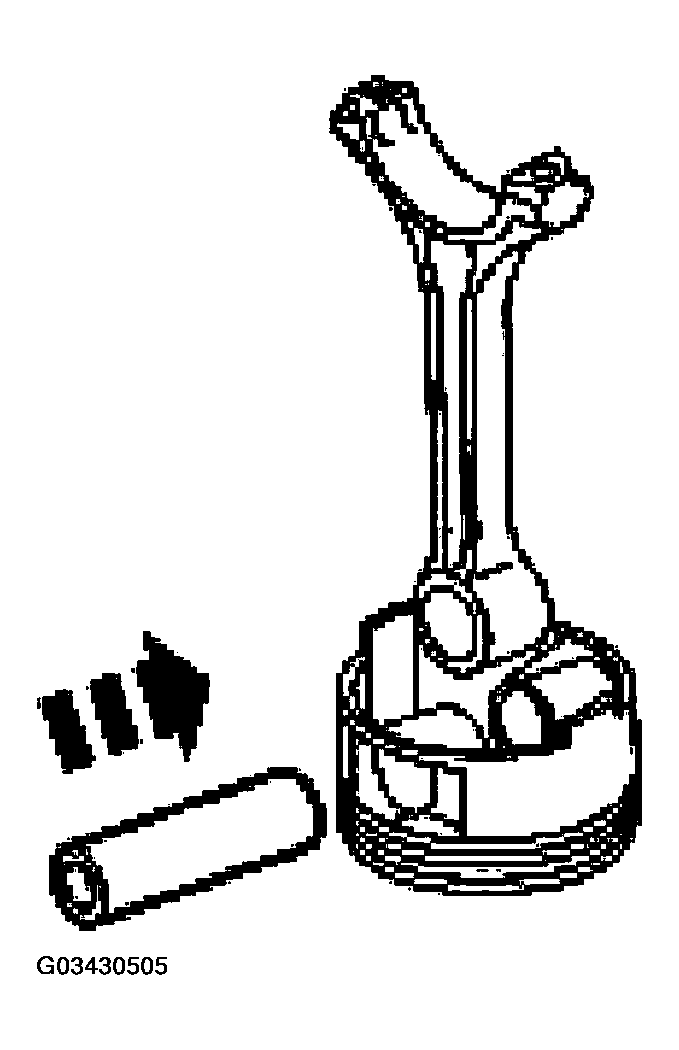

Fig 1: Lubricating Piston Pin & Piston Pin Bore

Courtesy of FORD MOTOR CO.

Lubricate the piston pin and piston pin bore.
- Use Super Premium SAE 5W-20 Motor Oil or equivalent meeting Ford specification WSS-M2C153-H.
Position the piston pin in the bore aligned with the connecting rod bore.

Fig 2: Aligning Piston Pin In Bore With Connecting Rod Bore
Courtesy of FORD MOTOR CO.
Use the Piston Pin Tool to press the piston pin into the piston and connecting rod assembly.

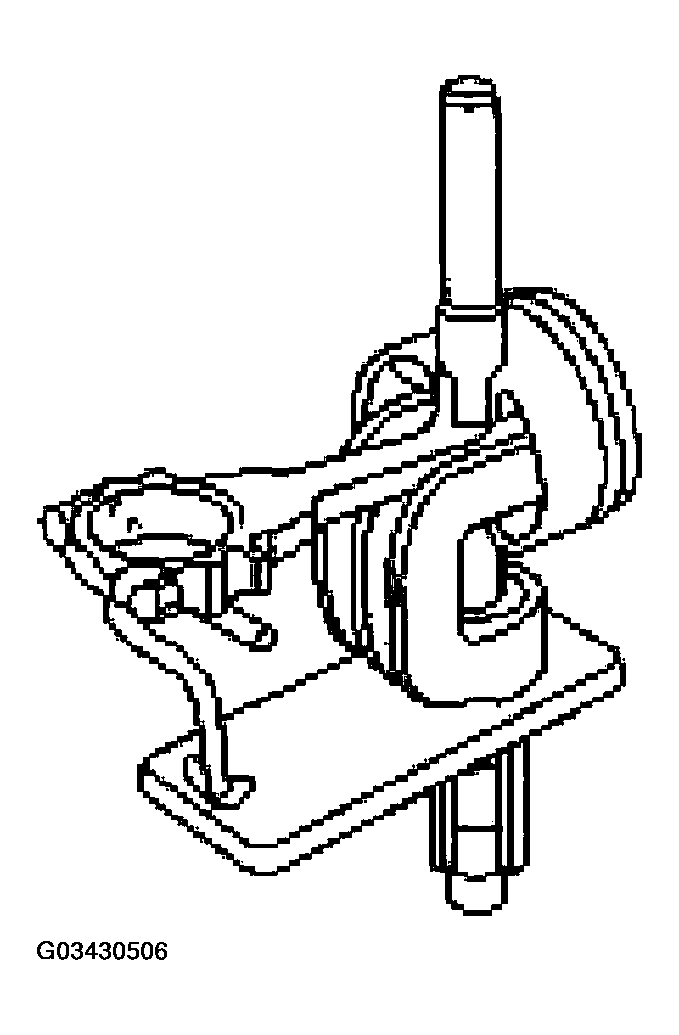

Fig 3: Pressing Piston Pin Into Piston & Connecting Rod Assembly
Courtesy of FORD MOTOR CO.
Fit and install the piston rings. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
