Cylinder Head: Disassembly

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Remove the camshaft sensor.

Fig 1: Removing Camshaft Sensor
Courtesy of FORD MOTOR CO.

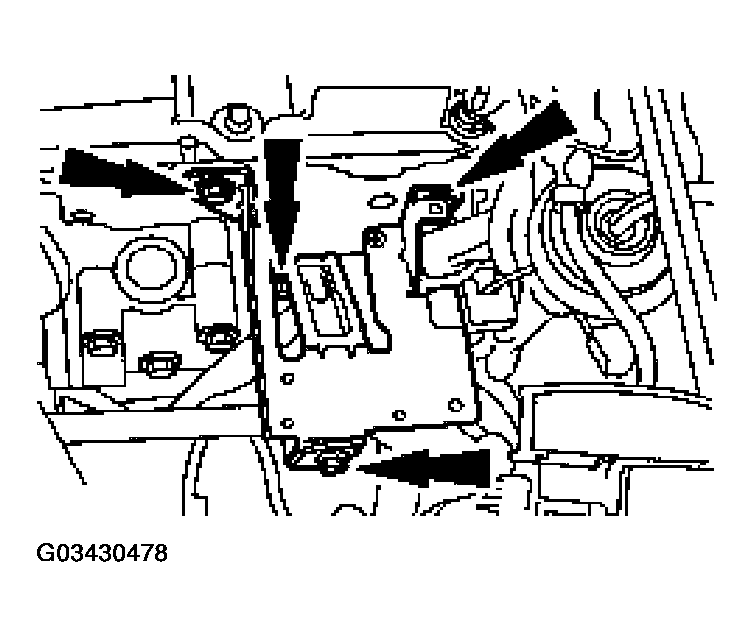

Remove the ignition coil bracket.

Fig 2: Removing Ignition Coil Bracket
Courtesy of FORD MOTOR CO.

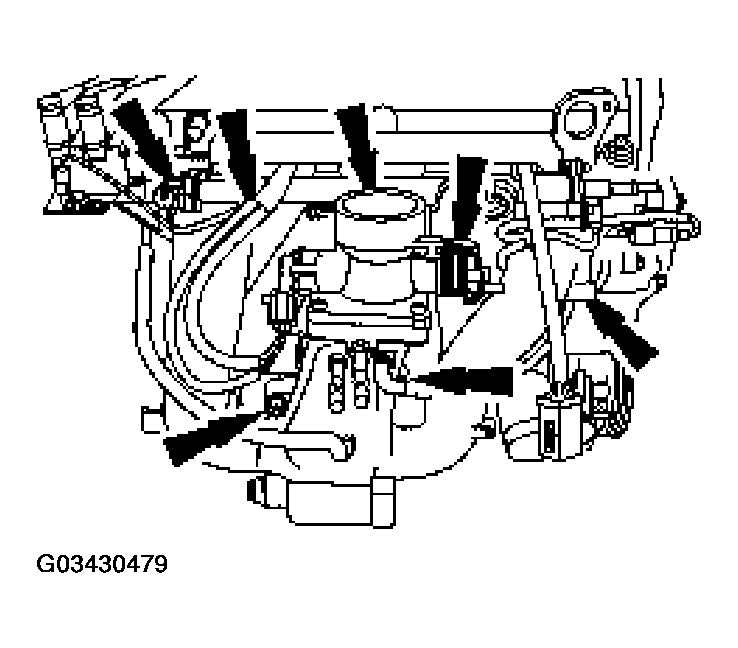

Remove the intake manifold.

Fig 3: Removing Intake Manifold
Courtesy of FORD MOTOR CO.

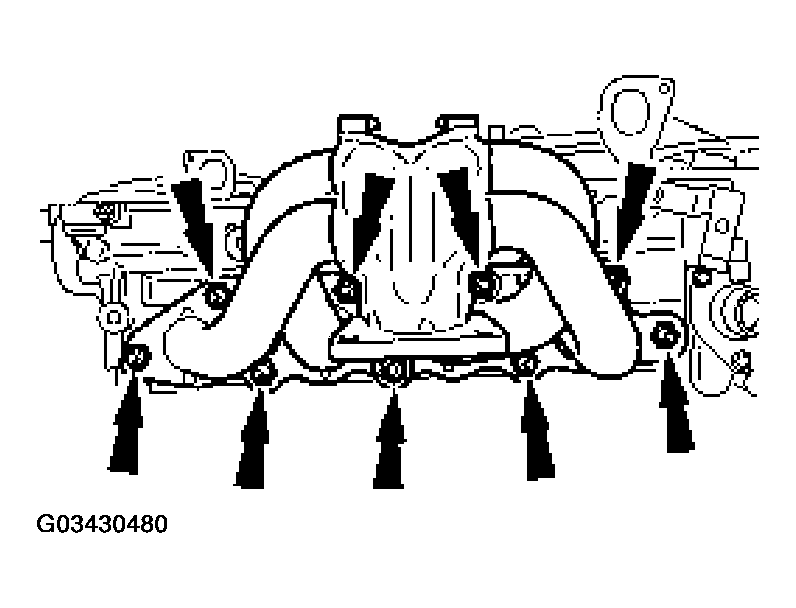

Remove the exhaust manifold.

Fig 4: Removing Exhaust Manifold
Courtesy of FORD MOTOR CO.

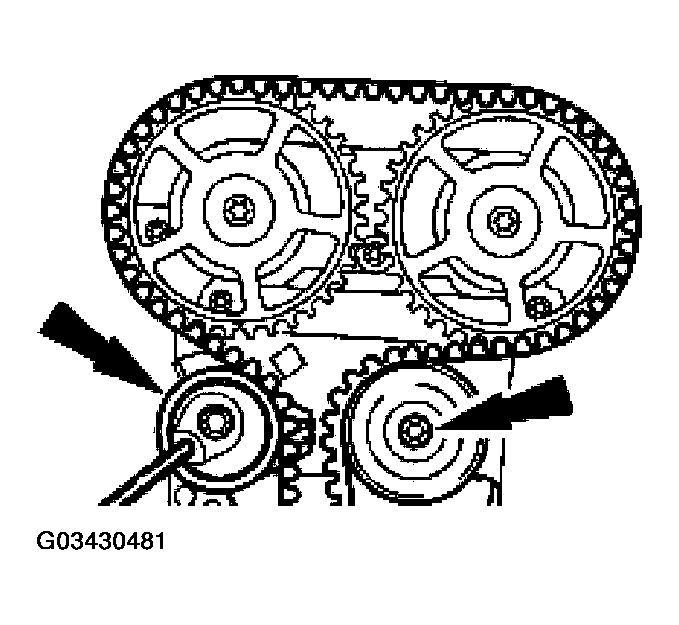

Remove the timing belt tensioner and pulley.

Fig 5: Removing Timing Belt Tensioner & Pulley
Courtesy of FORD MOTOR CO.
Remove the inner timing belt cover.
Remove the bracket.

Fig 6: Removing Inner Timing Belt Cover
Courtesy of FORD MOTOR CO.
Remove the rear lifting eye.

Fig 7: Removing Rear Lifting Eye
Courtesy of FORD MOTOR CO.
Remove the front lifting eye.

Fig 8: Removing Front Lifting Eye
Courtesy of FORD MOTOR CO.
Remove the cylinder head temperature (CHT) sensor.

Fig 9: Removing Cylinder Head Temperature (CHT) Sensor
Courtesy of FORD MOTOR CO.

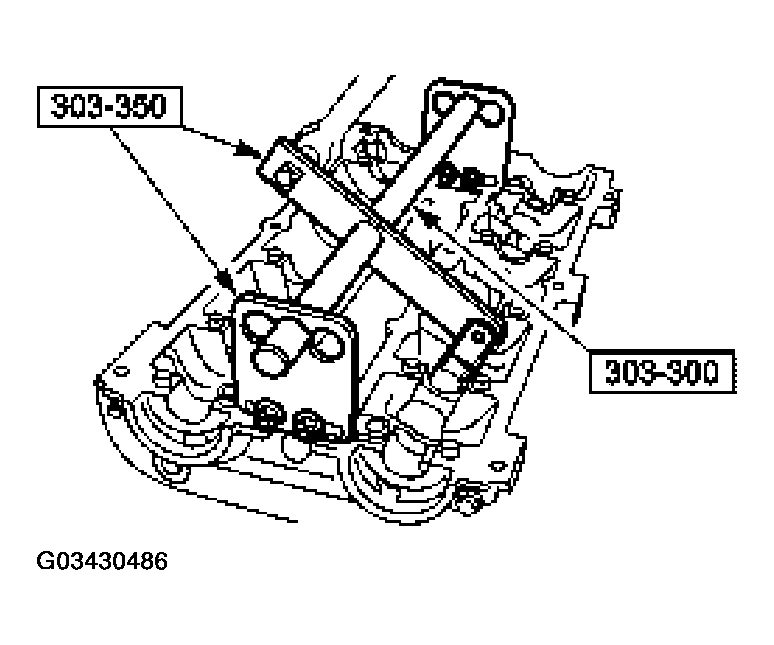

Using the special tools, compress the valve spring and remove the valve spring retainer keys, the valve spring retainers, and the valve springs.
- Remove the special tools.
Fig 10: Removing Special Tools
Courtesy of FORD MOTOR CO.
Inspect the valve spring, valve spring retainer and valve spring retainer key. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION . Install new parts as necessary.

NOTE: Mark each valve if the original valves are to be used.

Fig 11: Removing Valves

Courtesy of FORD MOTOR CO.

Remove the valves.

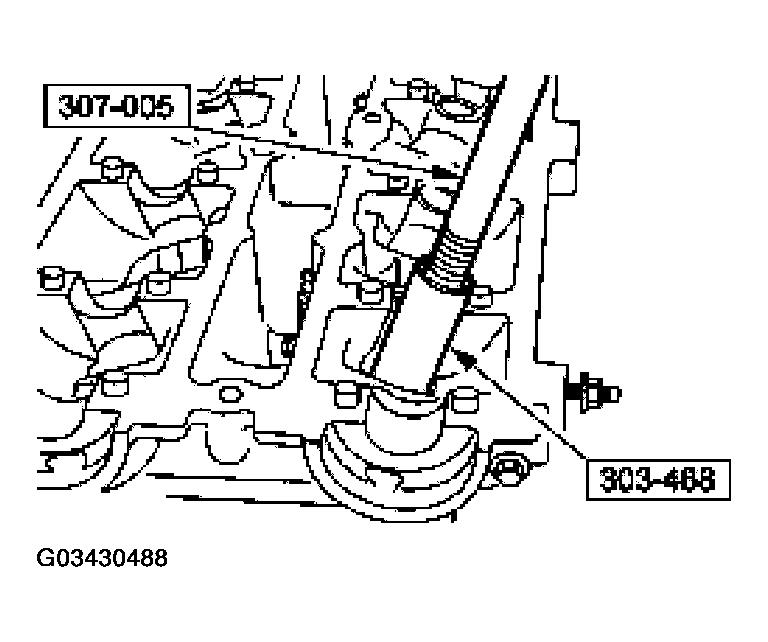

Using the special tools, remove and discard the valve stem seals.

Fig 12: Removing & Discard Valve Stem Seals
Courtesy of FORD MOTOR CO.
Inspect the valves. For additional information refer to ENGINE SYSTEM-GENERAL INFORMATION . Install new parts as necessary.
