Crankshaft Bearings

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

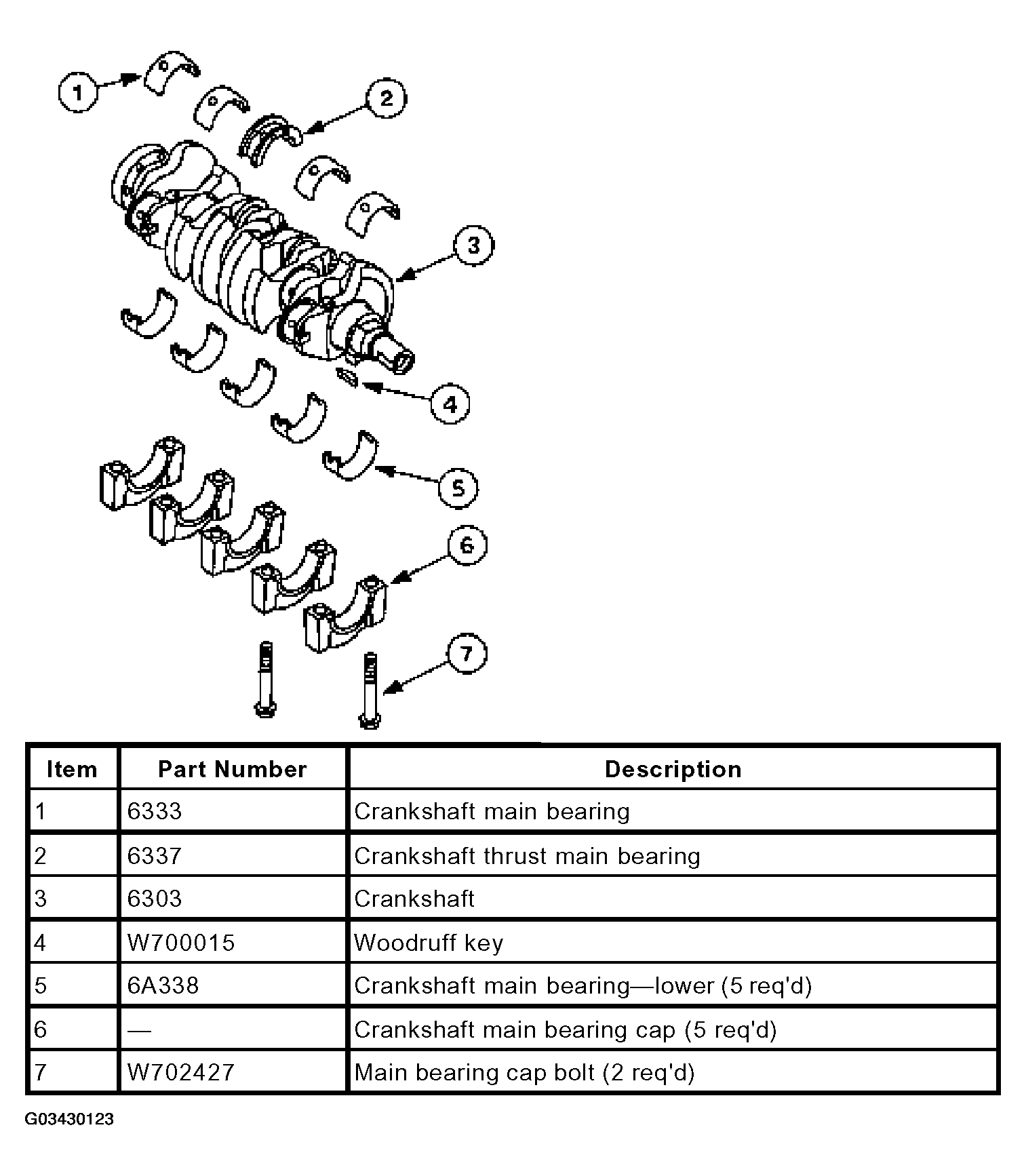

Fig 1: Identifying Crankshaft Bearings
G03430123Courtesy of FORD MOTOR CO.

The connecting rods are numbered one to four starting at the timing belt end. It is practically impossible to mix up the connecting rod bearing caps and connecting rods since the connecting rod bearing caps are broken away from the connecting rod during production. The fracture profile of a connecting rod bearing cap therefore only fits one of the connecting rods.
