Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the engine onto the subframe assembly.
    Fig 1: Identifying Position Of Engine Onto Subframe Assembly
    G03430056Courtesy of FORD MOTOR CO.

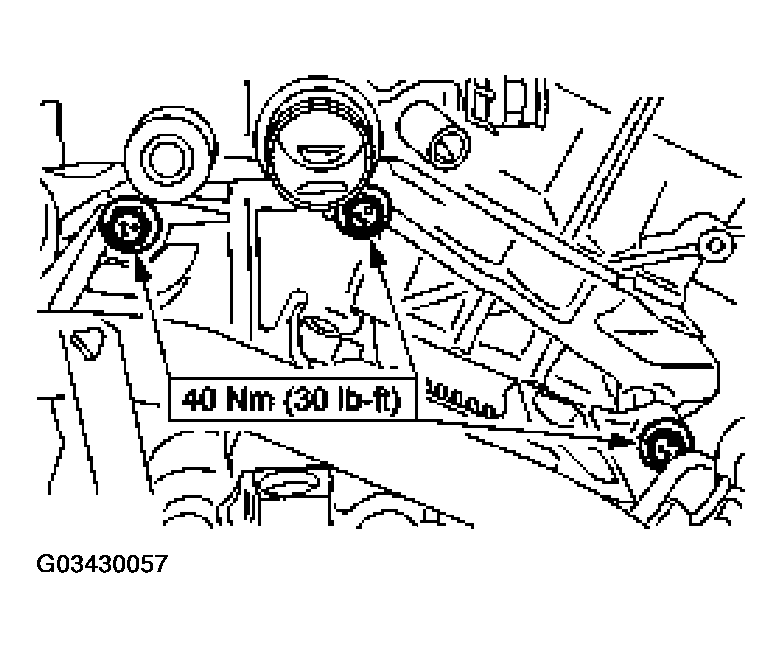

  2. Install the six bolts in the transaxle.
    Fig 2: Installing Six Bolts In Transaxle
    G03430057Courtesy of FORD MOTOR CO.
    3. CAUTION: Do not allow the engine oil pan to rest on the powertrain lift.
    Fig 3: Identifying Position Of Powertrain On Universal Powertrain Lift
    G03430058Courtesy of FORD MOTOR CO.
  3. Using the special tools, position the powertrain on the universal powertrain lift and remove the special tools.
  4. Using a bracket from a heavy duty engine stand, support the front of the engine.
    Fig 4: Supporting Front Of Engine
    G03430059Courtesy of FORD MOTOR CO.

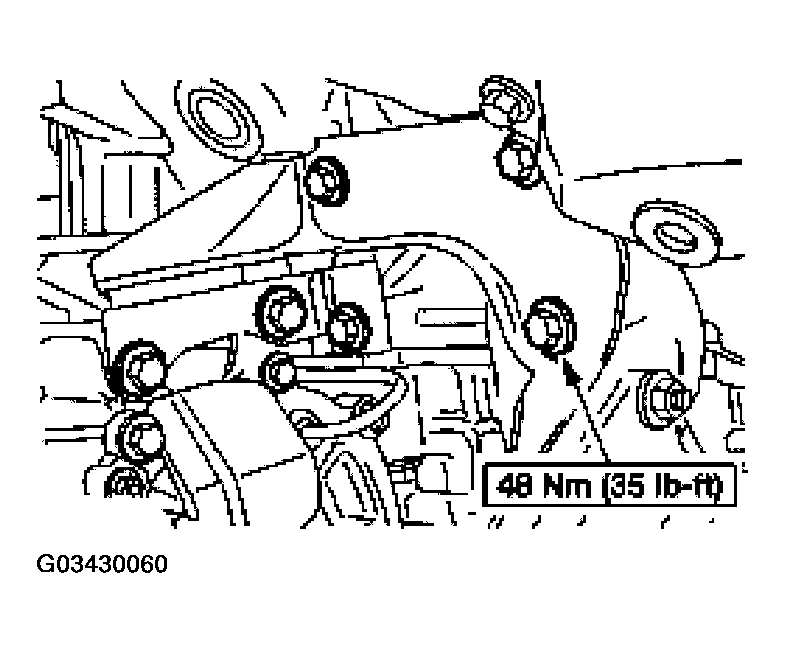

  5. Position the halfshaft bracket and install the bolts.
    Fig 5: Installing Bolts
    G03430060Courtesy of FORD MOTOR CO.

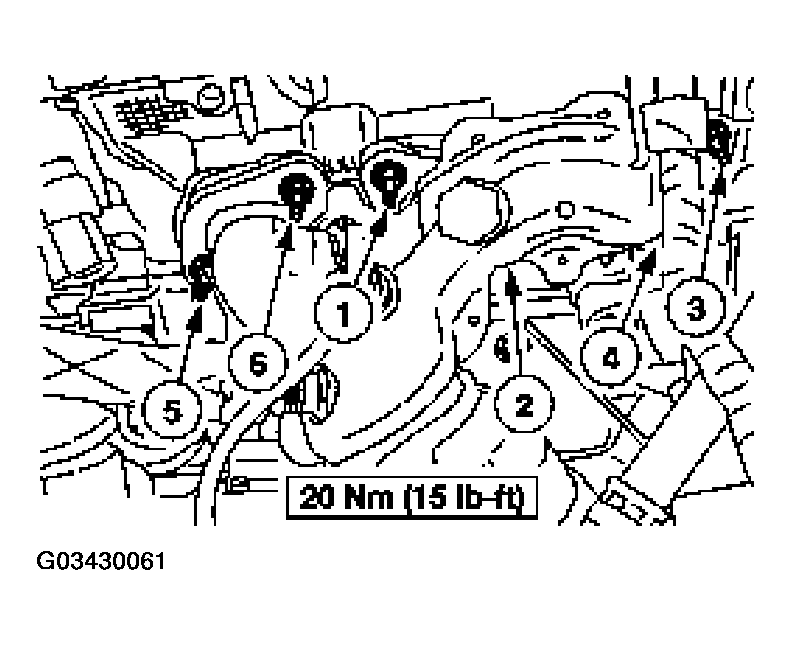

  6. Install a new gasket and the RH exhaust manifold.
    Fig 6: Installing New Gasket & RH Exhaust Manifold
    G03430061Courtesy of FORD MOTOR CO.

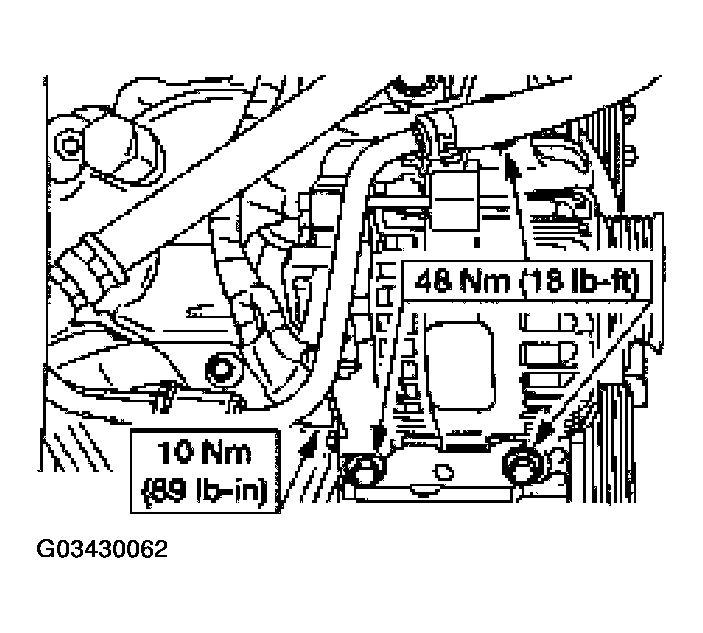

  7. Install the generator.
    Fig 7: Installing Generator
    G03430062Courtesy of FORD MOTOR CO.

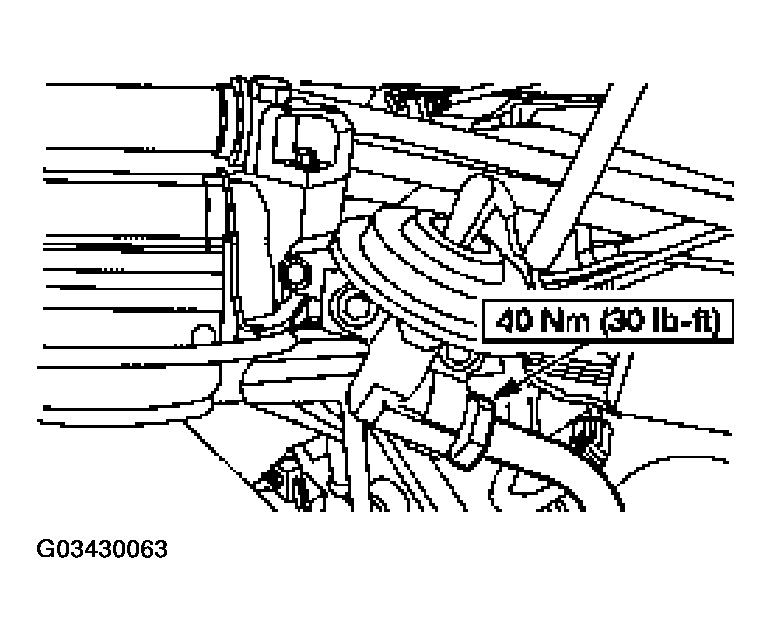

    8. NOTE: Do not tighten the EGR tube until both ends of the tube have been connected.
    Fig 8: Connecting Fitting
    G03430063Courtesy of FORD MOTOR CO.
  8. Position the EGR tube and connect the fitting.

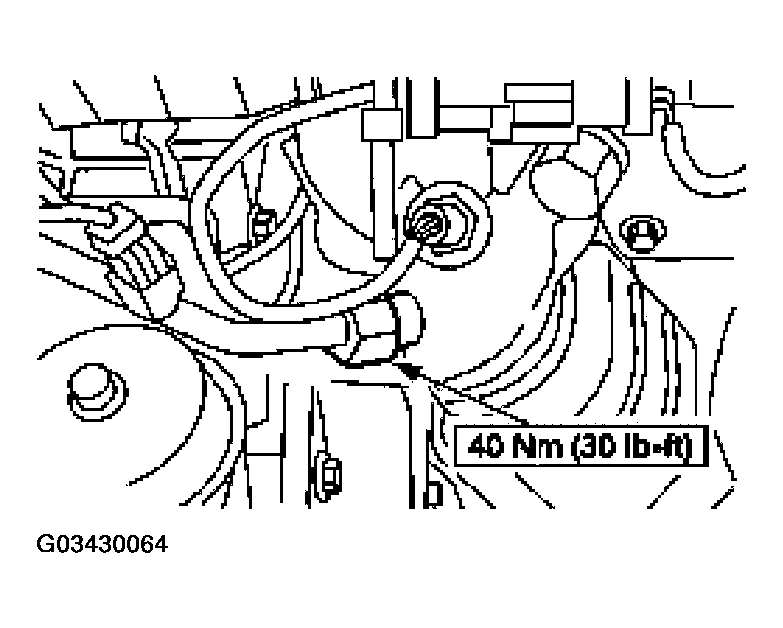

  9. Connect the EGR tube nut at the manifold connector.
    Fig 9: Connecting EGR Tube Nut At Manifold Connector
    G03430064Courtesy of FORD MOTOR CO.

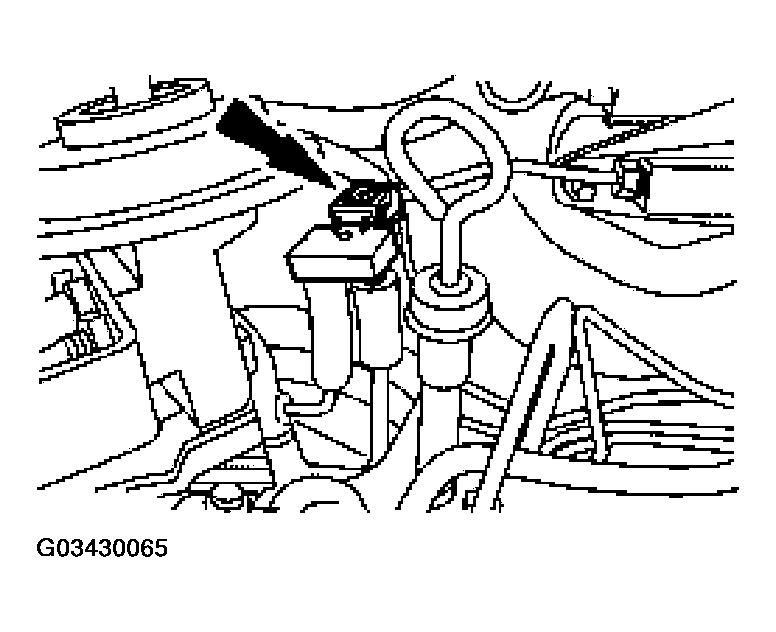

  10. Connect the differential pressure feedback EGR sensor electrical connector.
    Fig 10: Connecting Differential Pressure Feedback EGR Sensor Electrical Connector
    G03430065Courtesy of FORD MOTOR CO.

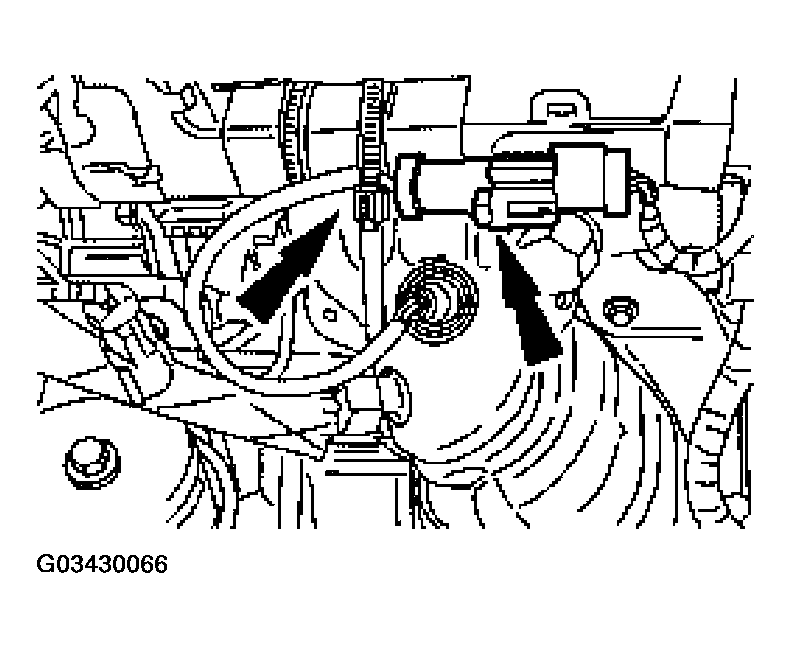

  11. Connect the heated oxygen sensor (HO2S) electrical connector and install a new tie-strap.
    Fig 11: Connecting Heated Oxygen Sensor Electrical Connector
    G03430066Courtesy of FORD MOTOR CO.

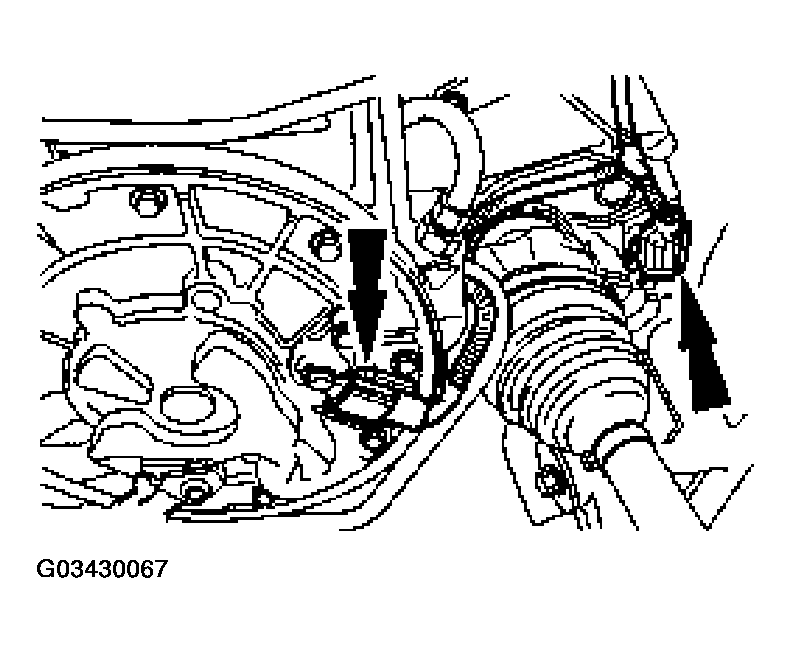

  12. Connect the output shaft speed (OSS) sensor and turbine speed sensor (TSS) electrical connectors.
    Fig 12: Connecting Output Shaft Speed Sensor
    G03430067Courtesy of FORD MOTOR CO.

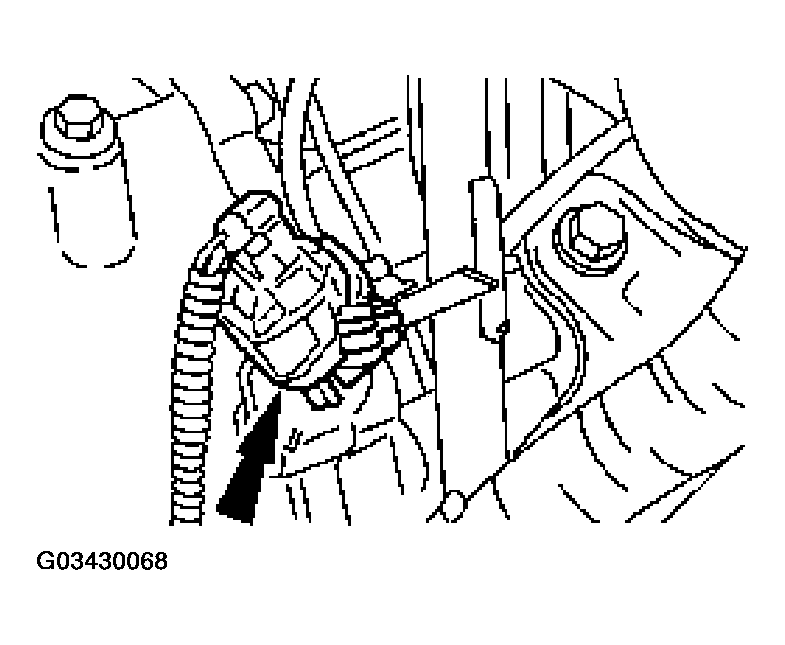

  13. Connect the knock sensor jumper electrical connector.
    Fig 13: Connecting Knock Sensor Jumper Electrical Connector
    G03430068Courtesy of FORD MOTOR CO.

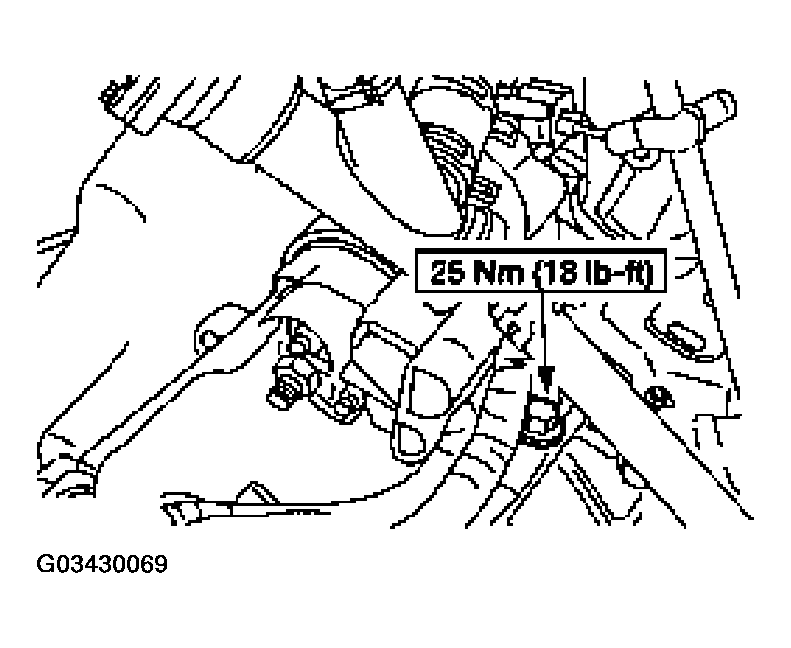

  14. Install the starter.
    Fig 14: Installing Starter
    G03430069Courtesy of FORD MOTOR CO.

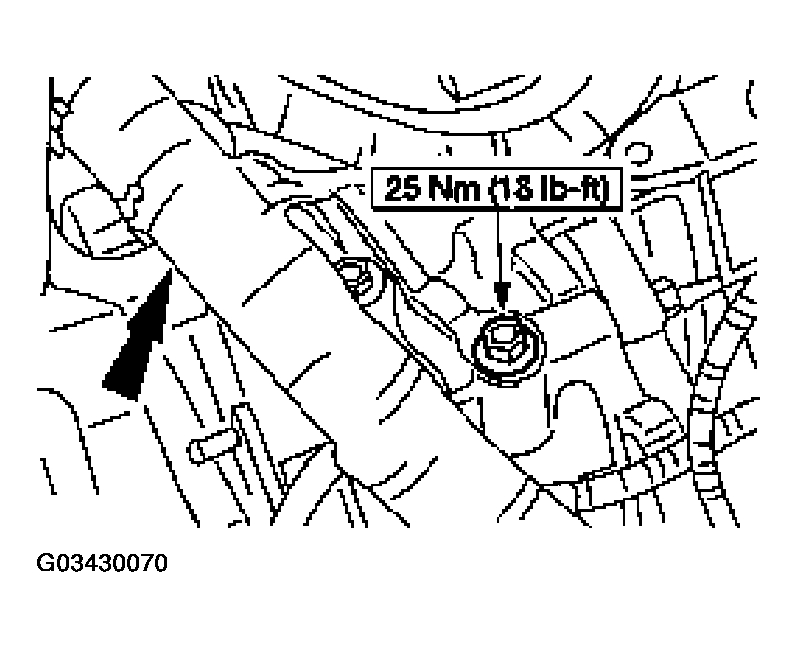

  15. Install the bolt and connect the transaxle control harness to the bracket.
    Fig 15: Installing Bolt & Connect Transaxle Control Harness To Bracket
    G03430070Courtesy of FORD MOTOR CO.

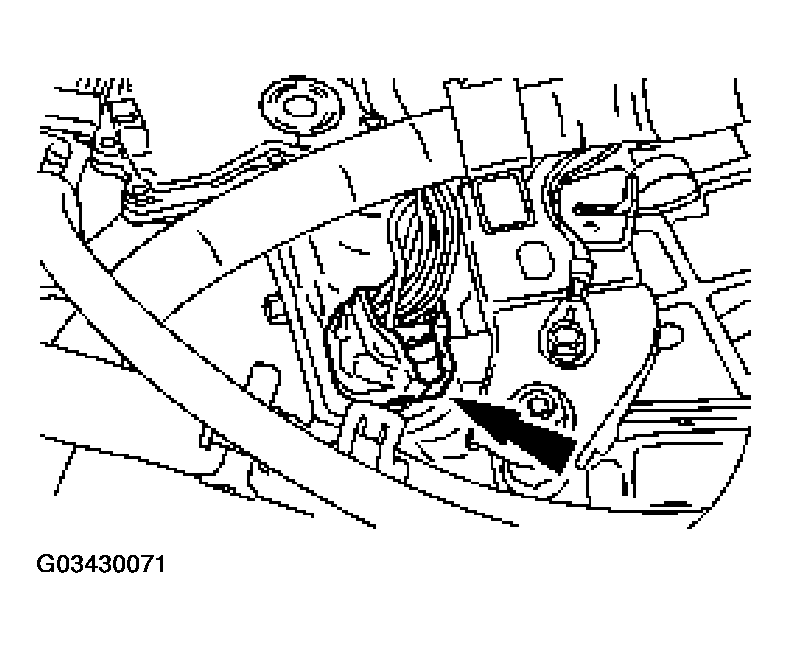

  16. Connect the transaxle harness.
    Fig 16: Connecting Transaxle Harness
    G03430071Courtesy of FORD MOTOR CO.

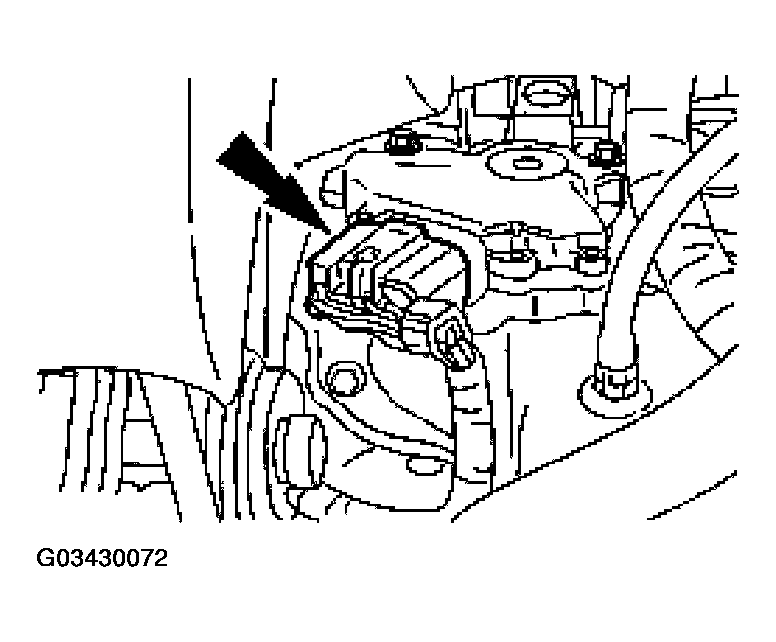

  17. Connect the transmission range (TR) sensor.
    Fig 17: Connecting Transmission Range Sensor
    G03430072Courtesy of FORD MOTOR CO.

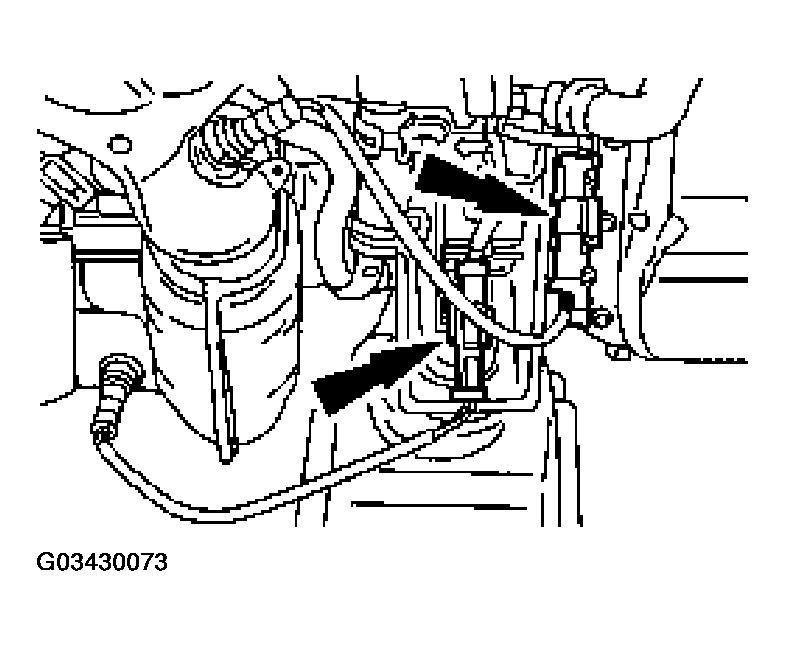

  18. Connect the heated oxygen sensors.
    Fig 18: Connecting Heated Oxygen Sensors
    G03430073Courtesy of FORD MOTOR CO.

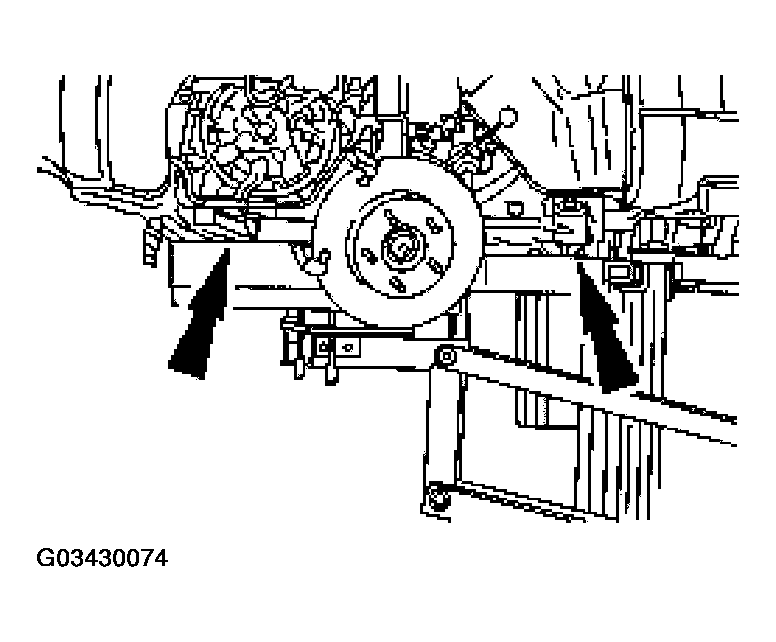

  19. Position the powertrain in the vehicle.
    Fig 19: Positioning Powertrain In Vehicle
    G03430074Courtesy of FORD MOTOR CO.

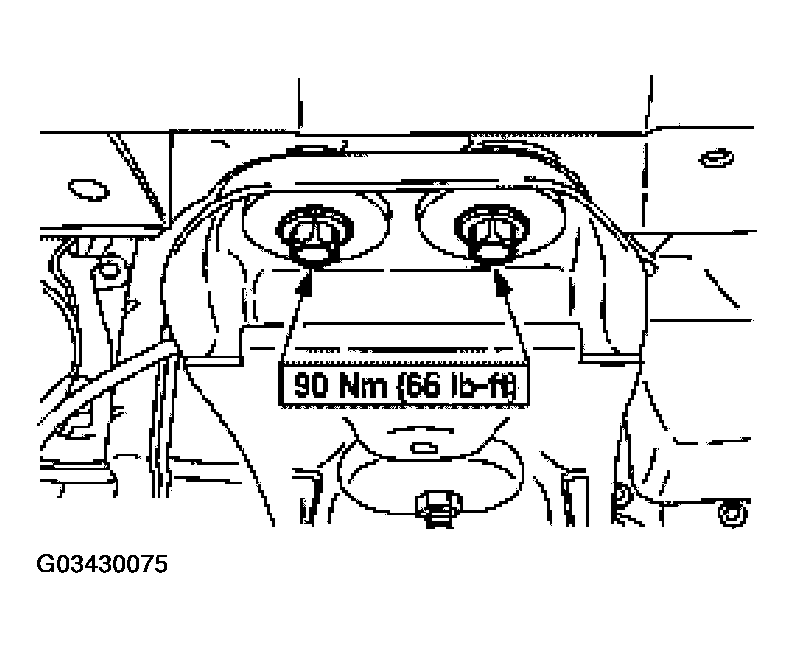

  20. Install the two bolts for the motor mount support.
    Fig 20: Installing Two Bolts For Motor Mount Support
    G03430075Courtesy of FORD MOTOR CO.

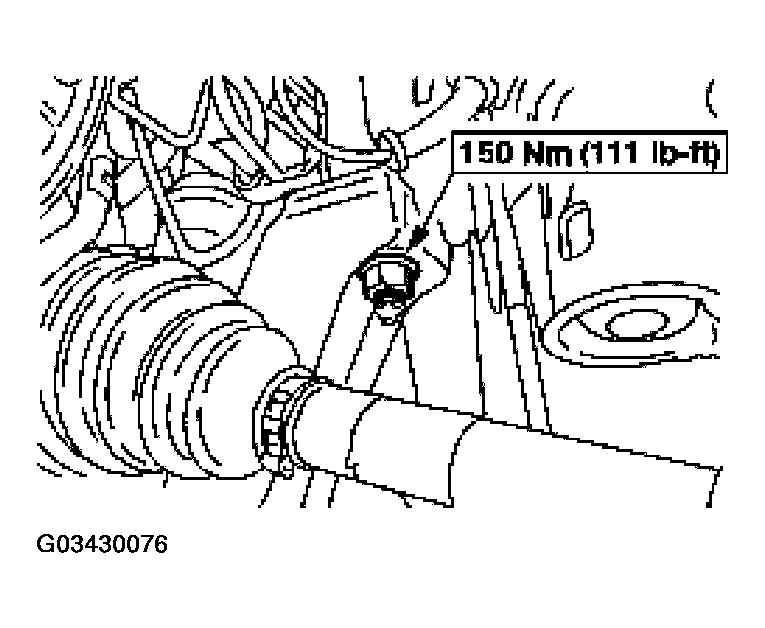

  21. Install the two subframe side nuts.
    Fig 21: Installing Two Subframe Side Nuts
    G03430076Courtesy of FORD MOTOR CO.
  22. Install two rear subframe bolts.
    Fig 22: Installing Two Rear Subframe Bolts
    G03430077Courtesy of FORD MOTOR CO.

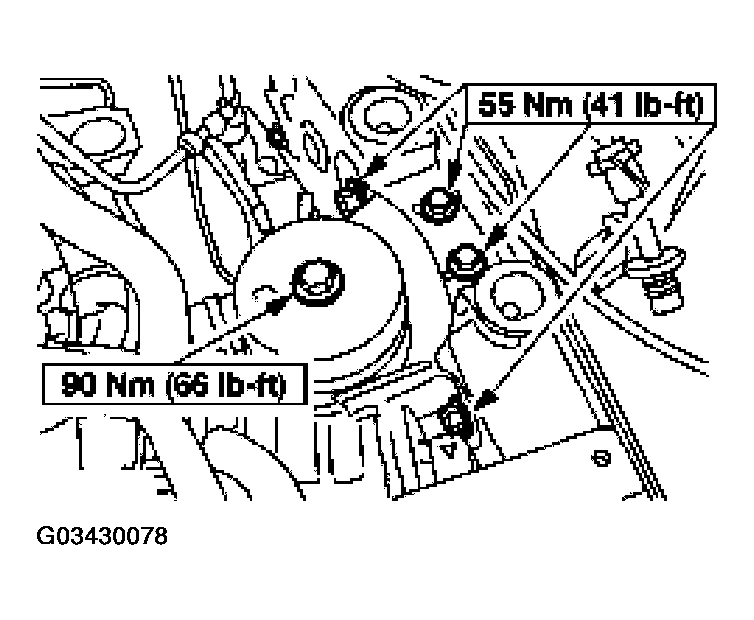

    23. NOTE: The next two steps must be carried out with the vehicle raised and the powertrain assembly supported by the lift.
    Fig 23: Installing Transaxle Mount Bolts
    G03430078Courtesy of FORD MOTOR CO.
  23. Position the transaxle mount and install the bolts.
  24. Connect the power steering return hose.

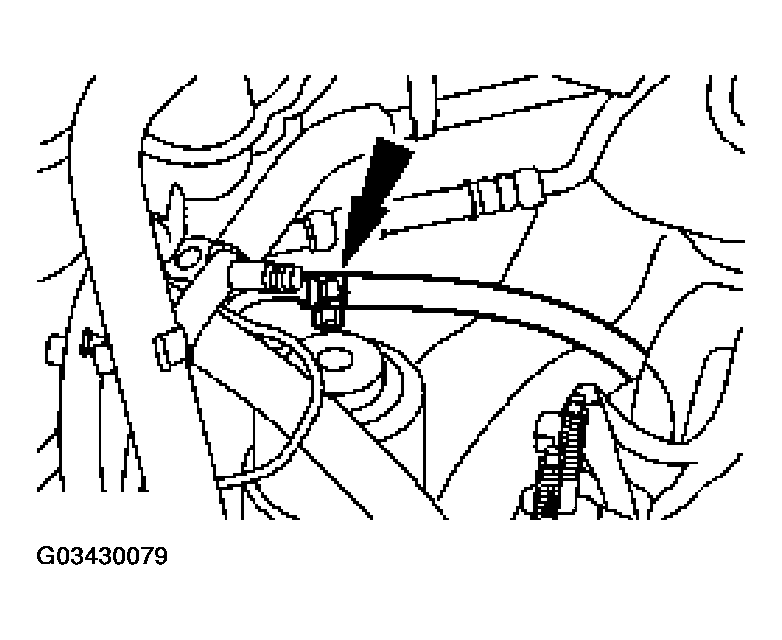

    Fig 24: Connecting Power Steering Return Hose
    G03430079Courtesy of FORD MOTOR CO.

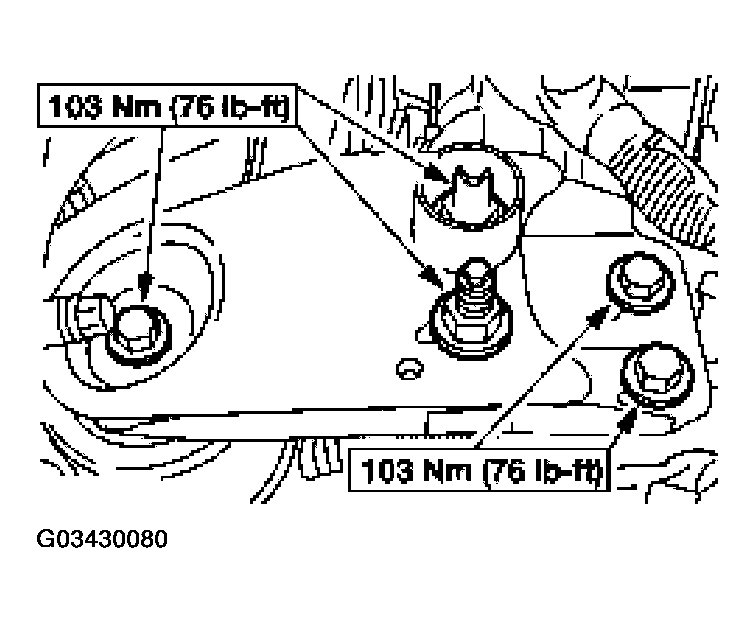

  25. Install the motor mount bracket, the bolts and the nuts.
    Fig 25: Installing Motor Mount Bracket, Bolts & Nuts
    G03430080Courtesy of FORD MOTOR CO.

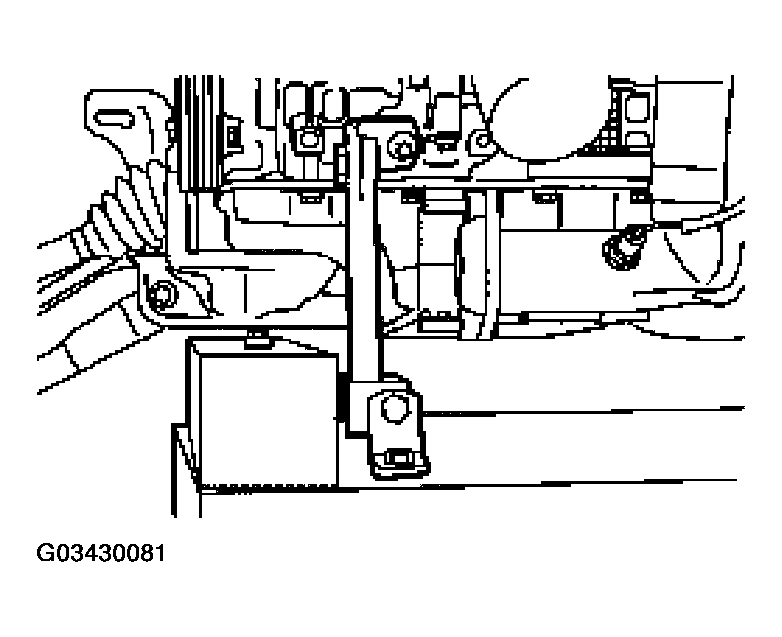

  26. Remove the bracket.
    Fig 26: Removing Bracket
    G03430081Courtesy of FORD MOTOR CO.
  27. Remove the universal powertrain lift.
    Fig 27: Removing Universal Powertrain Lift
    G03430082Courtesy of FORD MOTOR CO.
  28. Install the four bolts.
    Fig 28: Installing Torque Converter Four Bolts
    G03430083Courtesy of FORD MOTOR CO.
  29. Install the four torque converter nuts.
    Fig 29: Installing Four Torque Converter Nuts
    G03430084Courtesy of FORD MOTOR CO.

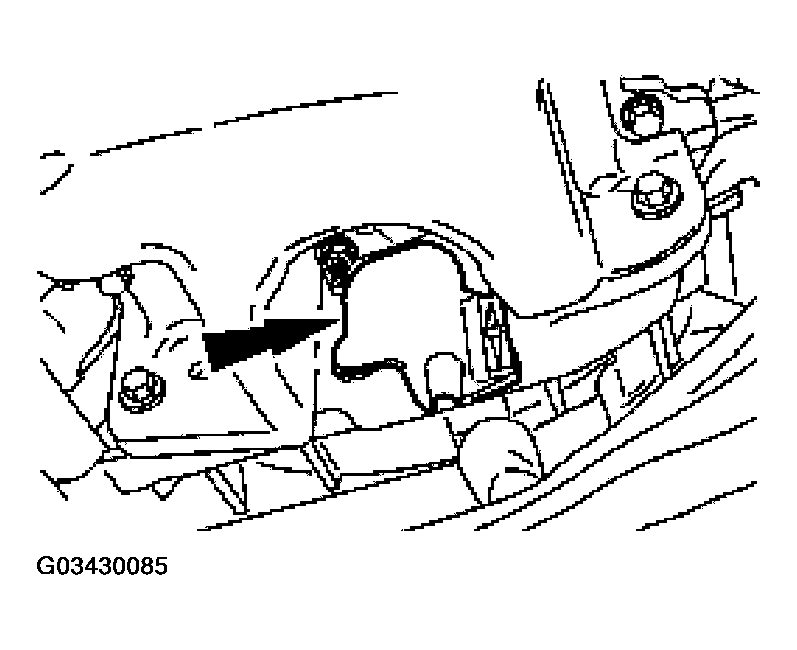

  30. Install the inspection plug.
    Fig 30: Installing Inspection Plug
    G03430085Courtesy of FORD MOTOR CO.
  31. Connect the two transmission cooler tubes.
    Fig 31: Connecting Two Transmission Cooler Tubes
    G03430086Courtesy of FORD MOTOR CO.
  32. Connect the steering shaft to the rack and install the bolt.

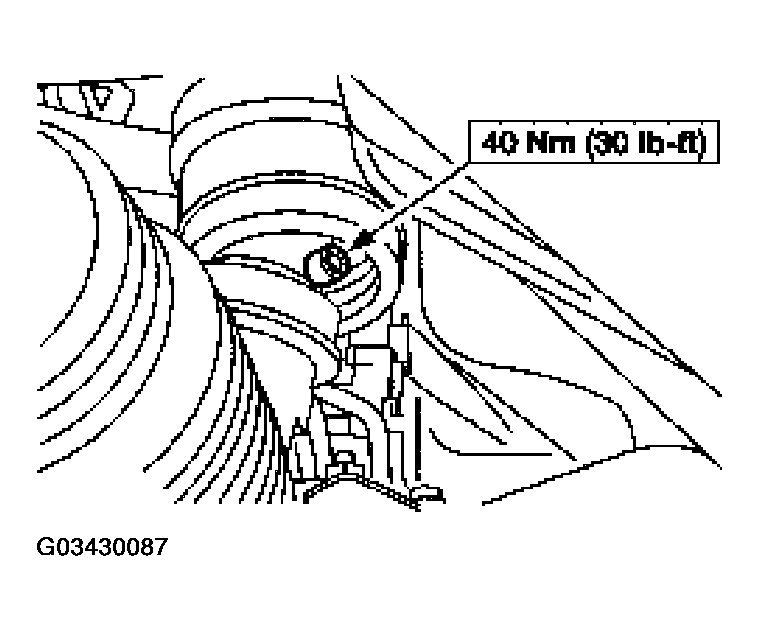

    Fig 32: Installing Bolt
    G03430087Courtesy of FORD MOTOR CO.

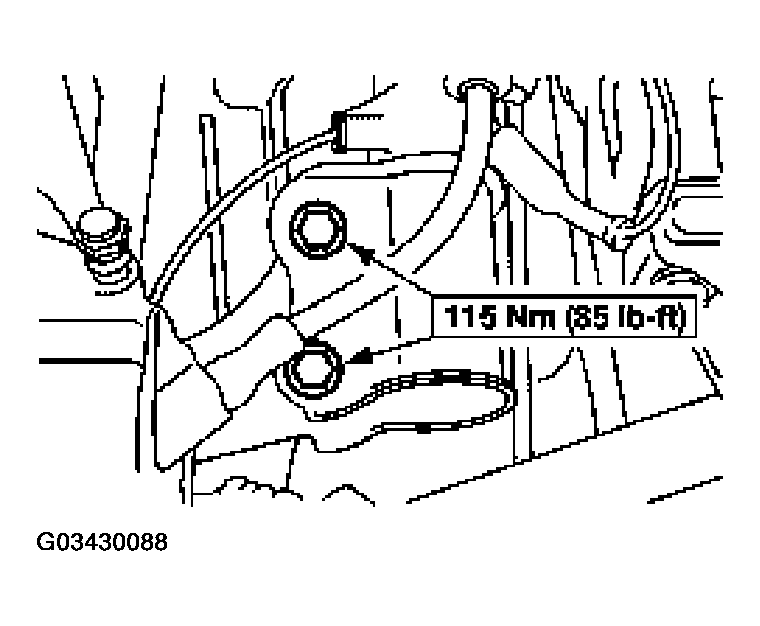

  33. Connect the LH and RH struts to the steering knuckles and install the bolts.
    Fig 33: Connecting LH & RH Struts To Steering Knuckles
    G03430088Courtesy of FORD MOTOR CO.
  34. Install the brake calipers to the steering knuckle.

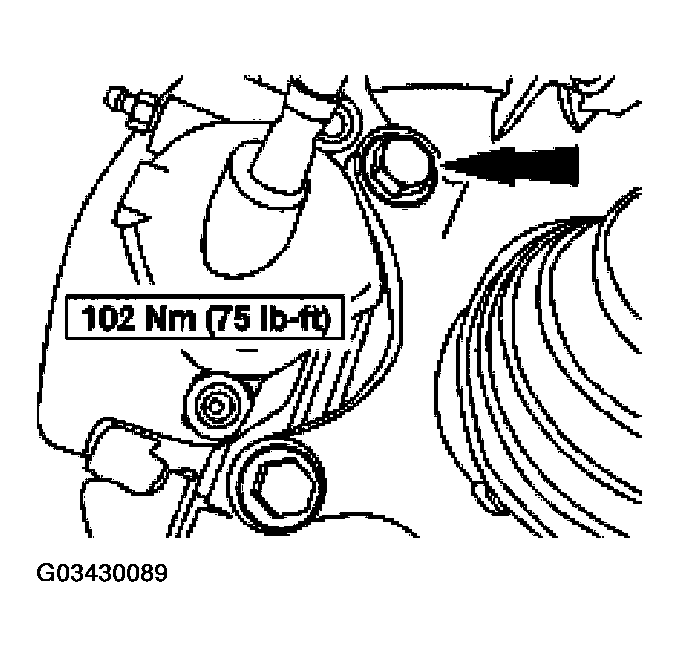

    Fig 34: Installing Brake Calipers To Steering Knuckle
    G03430089Courtesy of FORD MOTOR CO.

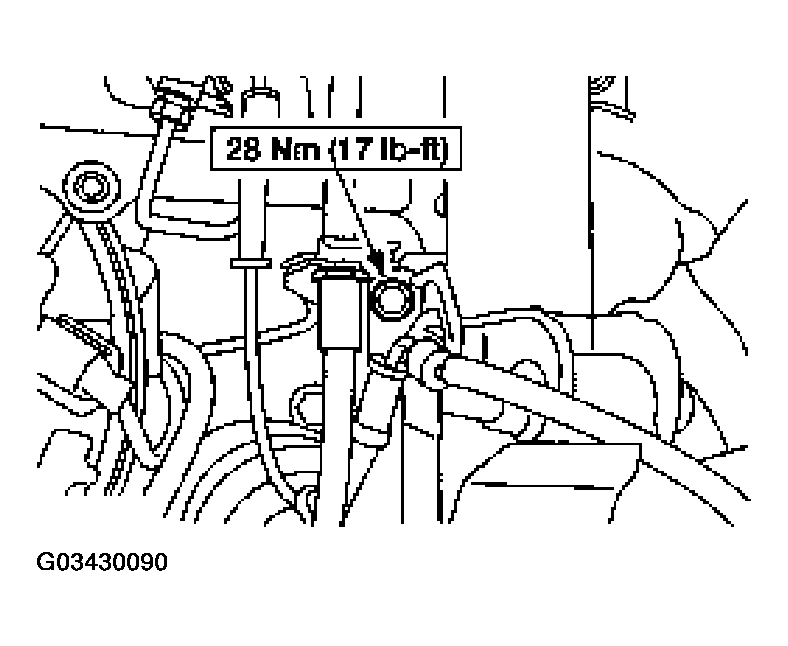

  35. If equipped, install the LH and RH wheel speed sensor harness brackets.
    Fig 35: Installing LH & RH Wheel Speed Sensor Harness Brackets
    G03430090Courtesy of FORD MOTOR CO.

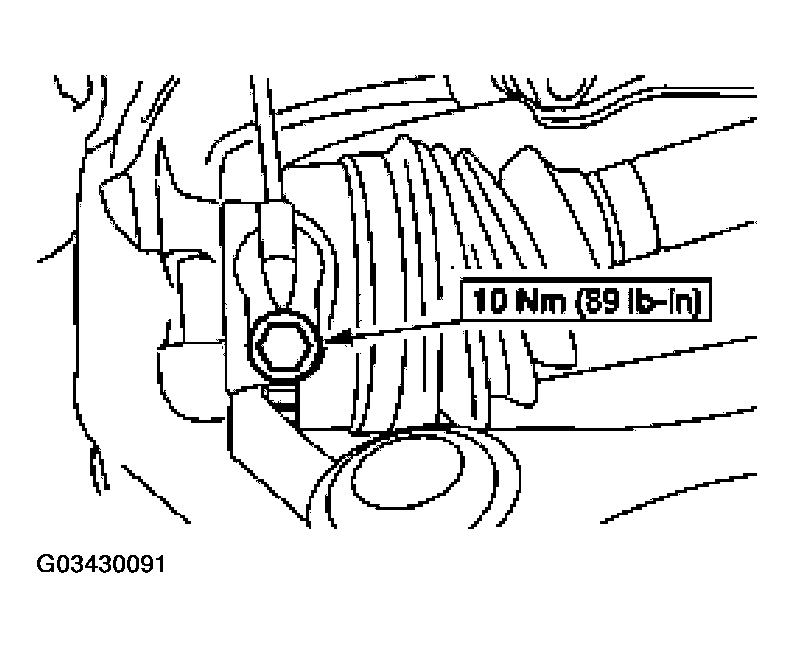

  36. If equipped, position the LH and RH wheel speed sensors and install the bolts.
    Fig 36: Identifying Position Of LH & RH Wheel Speed Sensors
    G03430091Courtesy of FORD MOTOR CO.
  37. Connect the LH and RH sway bar links to the strut mount.
    Fig 37: Connecting LH & RH Sway Bar Links To Strut Mount
    G03430092Courtesy of FORD MOTOR CO.
  38. If equipped, install the intermediate driveshaft. For additional information, refer to DRIVESHAFT .
  39. Install both front wheel and tire assemblies. .

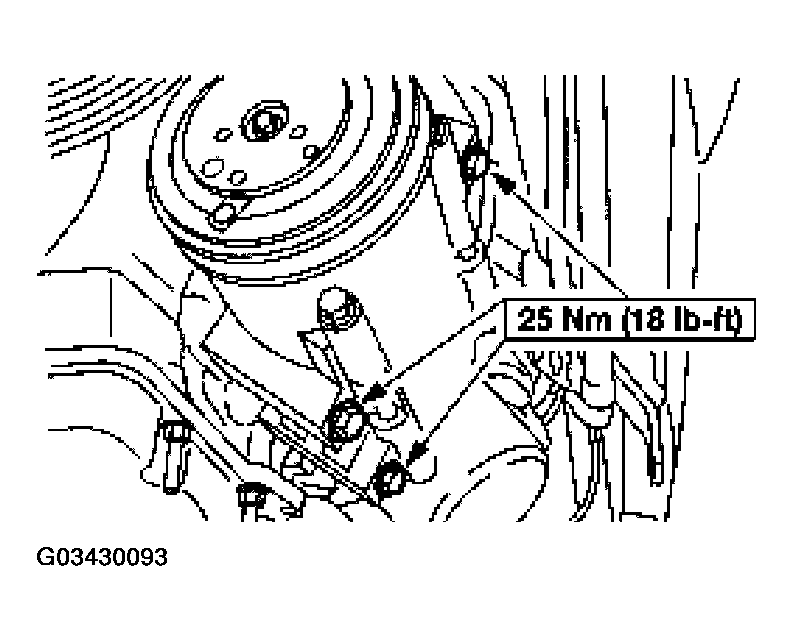

  40. Install the A/C compressor and the bolts.
    Fig 38: Installing A/C Compressor & Bolts
    G03430093Courtesy of FORD MOTOR CO.

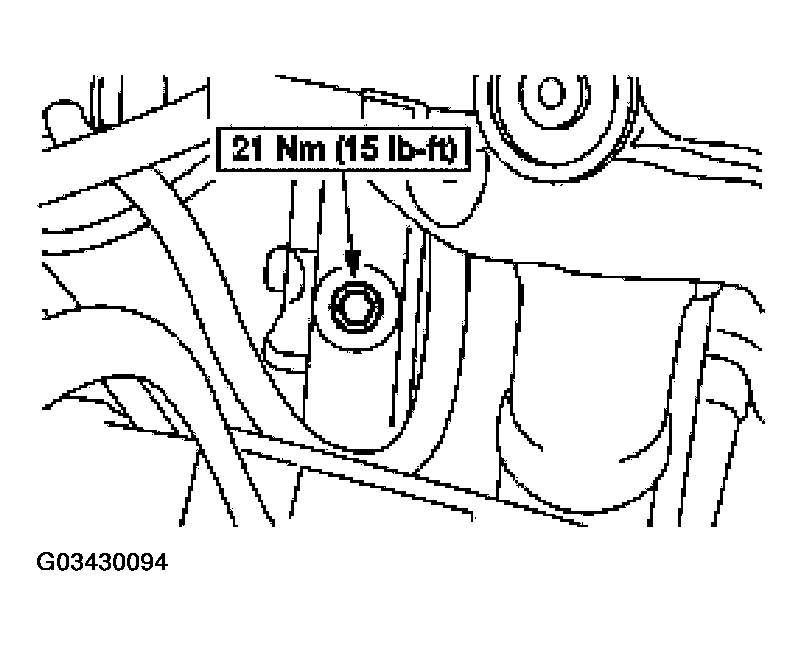

  41. Remove the plugs and install the A/C manifold and tube assembly.
    Fig 39: Removing Plugs & Install A/C Manifold & Tube Assembly
    G03430094Courtesy of FORD MOTOR CO.

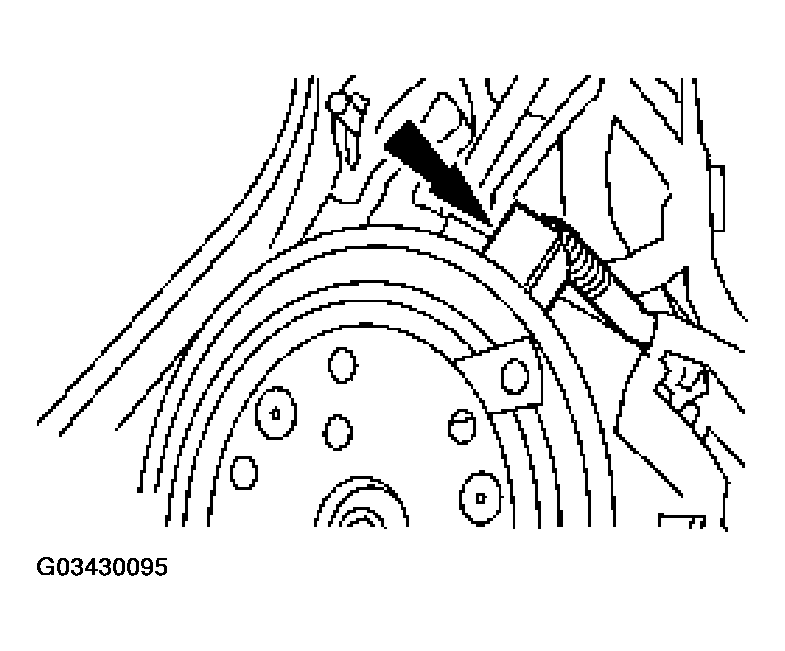

  42. Connect the A/C clutch field coil electrical connector.
    Fig 40: Connecting A/C Clutch Field Coil Electrical Connector
    G03430095Courtesy of FORD MOTOR CO.
  43. If equipped, connect the engine block heater electrical connector.
    Fig 41: Connecting Engine Block Heater Electrical Connector
    G03430096Courtesy of FORD MOTOR CO.
  44. Rotate the accessory drive belt tensioner clockwise and install the accessory drive belt.
    Fig 42: Installing Accessory Drive Belt
    G03430097Courtesy of FORD MOTOR CO.
  45. Install the flex pipe. .
  46. Install the lower radiator air deflectors.
  47. Lower the vehicle.
  48. Install the oil level indicator.

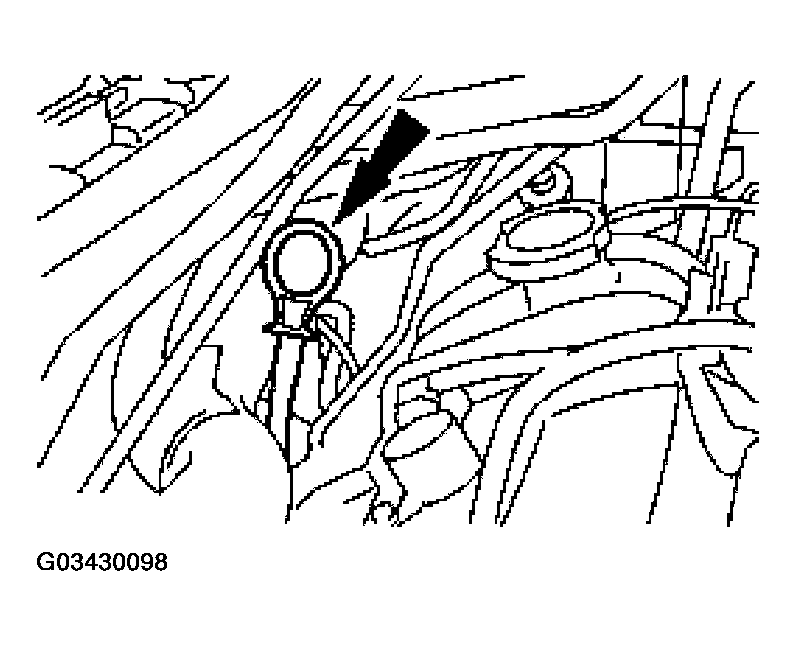

    Fig 43: Installing Oil Level Indicator
    G03430098Courtesy of FORD MOTOR CO.

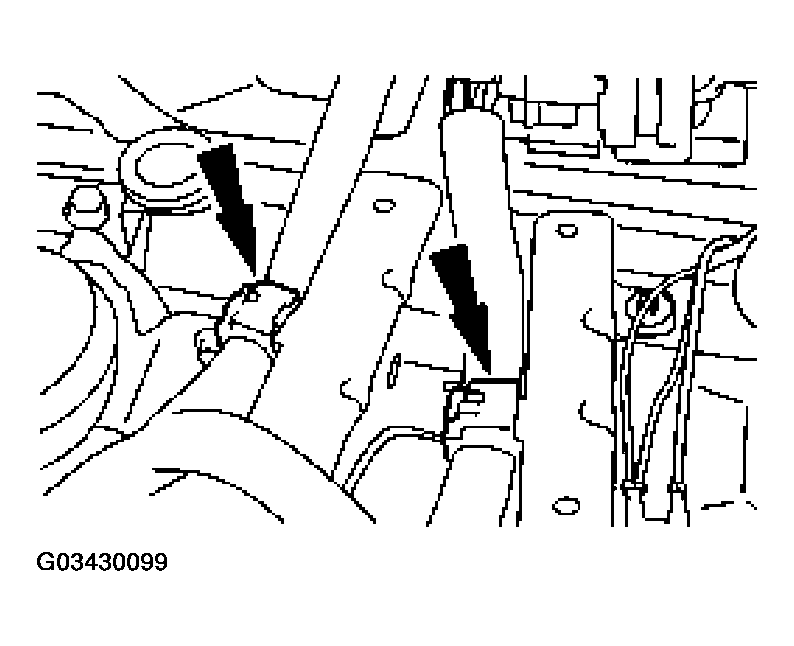

  49. Position the wire harness and install the wire harness locating retainers.
    Fig 44: Installing Wire Harness Locating Retainers
    G03430099Courtesy of FORD MOTOR CO.

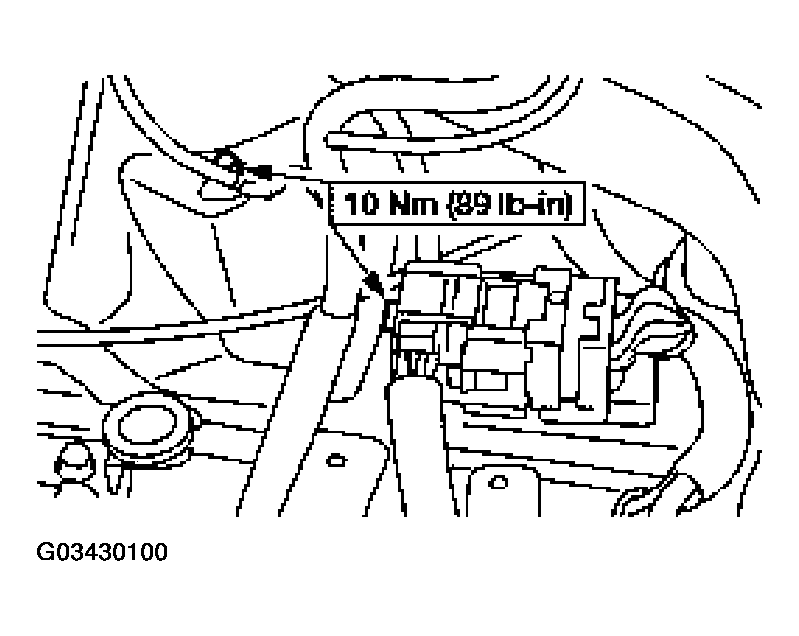

  50. Connect the ground strap and the electrical connector.
    Fig 45: Connecting Ground Strap & Electrical Connector
    G03430100Courtesy of FORD MOTOR CO.

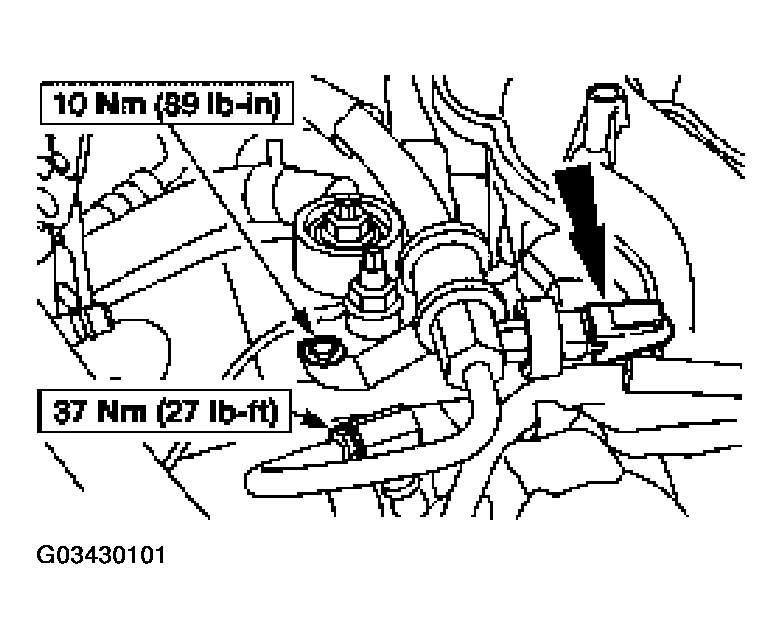

    51. NOTE: Install new Teflon® seals.
    Fig 46: Connecting Power Steering Line
    G03430101Courtesy of FORD MOTOR CO.
  51. Connect the power steering line.
    • Install the bracket bolt.
    • Connect the power steering pressure (PSP) switch electrical connector.
    • Connect the power steering line.

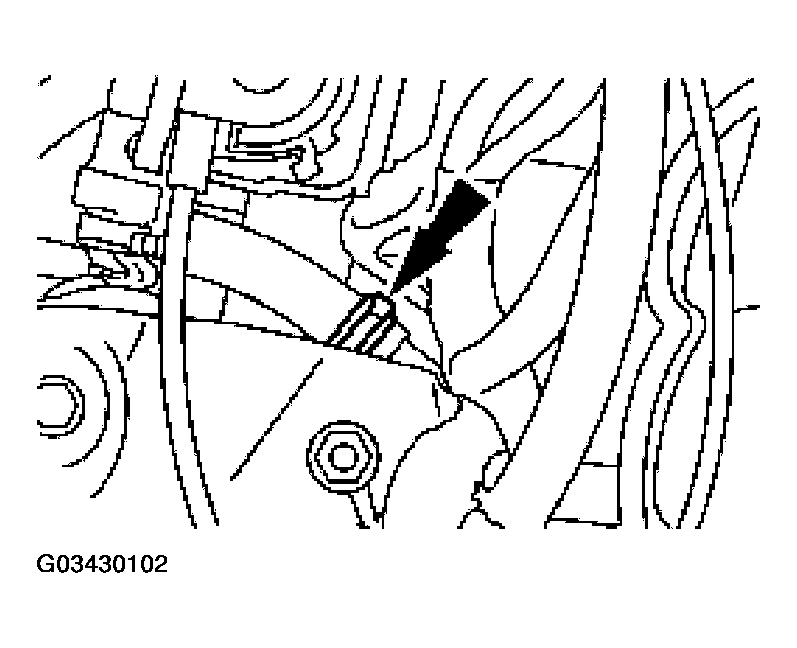

  52. Connect the power steering return line.
    Fig 47: Connecting Power Steering Return Line
    G03430102Courtesy of FORD MOTOR CO.

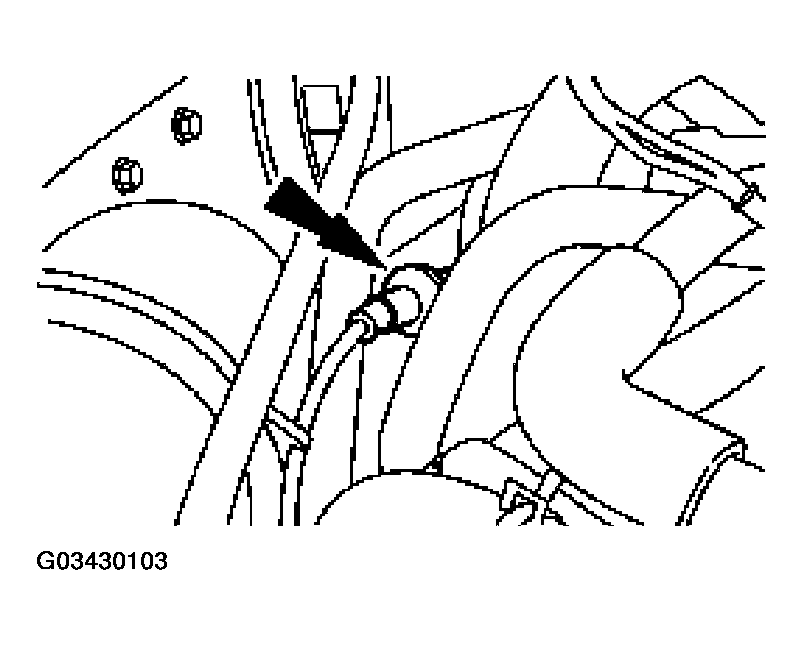

  53. Connect the vacuum line at the vacuum reservoir check valve.
    Fig 48: Connecting Vacuum Line At Vacuum Reservoir Check Valve
    G03430103Courtesy of FORD MOTOR CO.

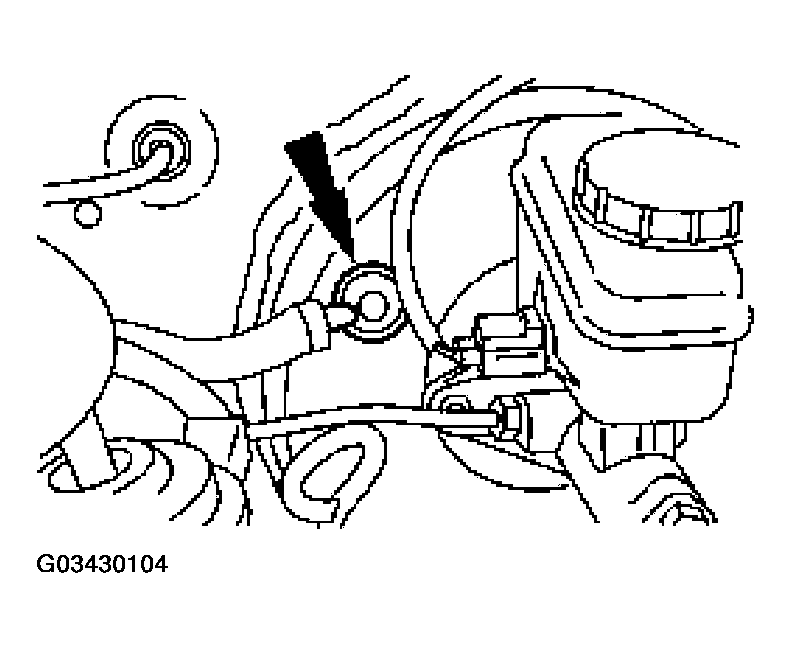

  54. Connect the brake booster vacuum hose.
    Fig 49: Connecting Brake Booster Vacuum Hose
    G03430104Courtesy of FORD MOTOR CO.

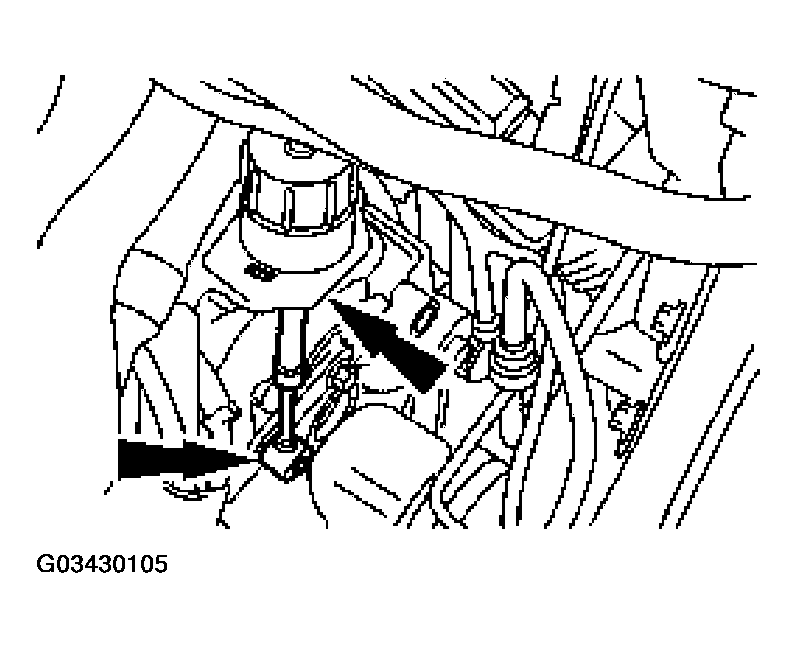

  55. Connect the transaxle linkage.
    Fig 50: Connecting Transaxle Linkage
    G03430105Courtesy of FORD MOTOR CO.

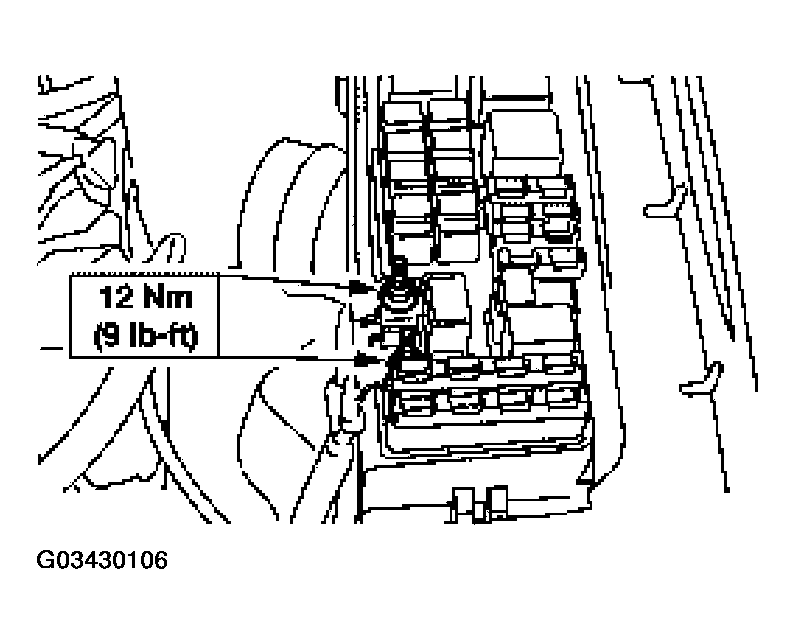

  56. Install the cables and the nuts.
    Fig 51: Installing Cables & Nuts
    G03430106Courtesy of FORD MOTOR CO.

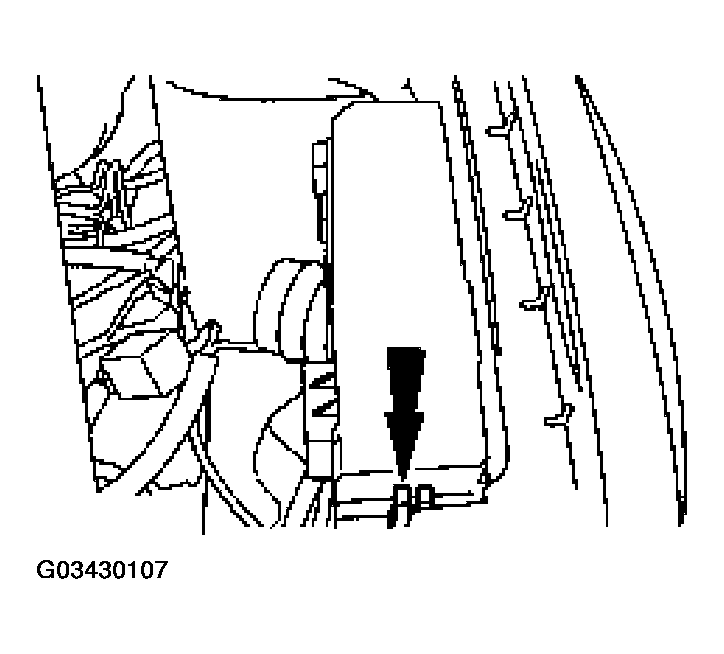

  57. Install the power distribution box cover.
    Fig 52: Installing Power Distribution Box Cover
    G03430107Courtesy of FORD MOTOR CO.
  58. Connect the connector to the power distribution box.
    Fig 53: Connecting Connector To Power Distribution Box
    G03430108Courtesy of FORD MOTOR CO.

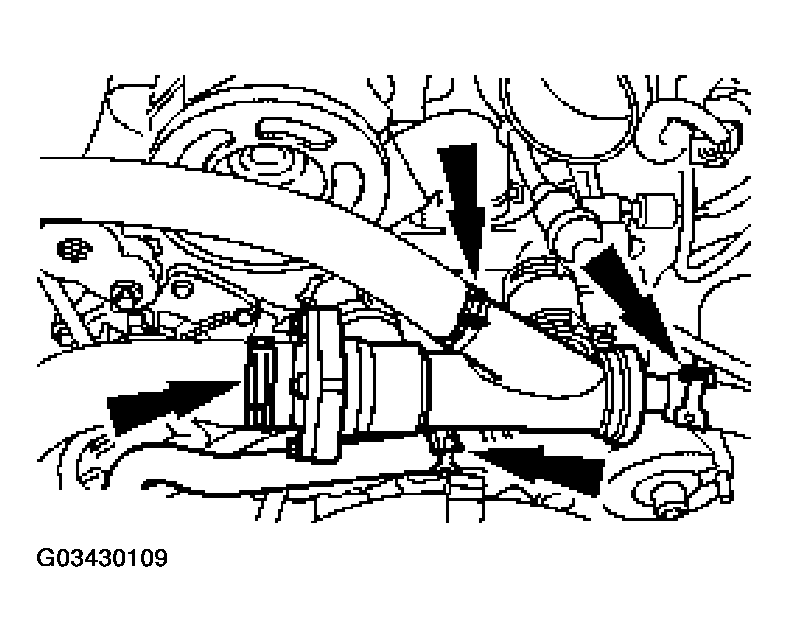

  59. Position the thermostat housing and connect the hoses.
    Fig 54: Identifying Position Of Thermostat Housing & Connect Hoses
    G03430109Courtesy of FORD MOTOR CO.
  60. Connect the heater hose and install a new tie-strap.

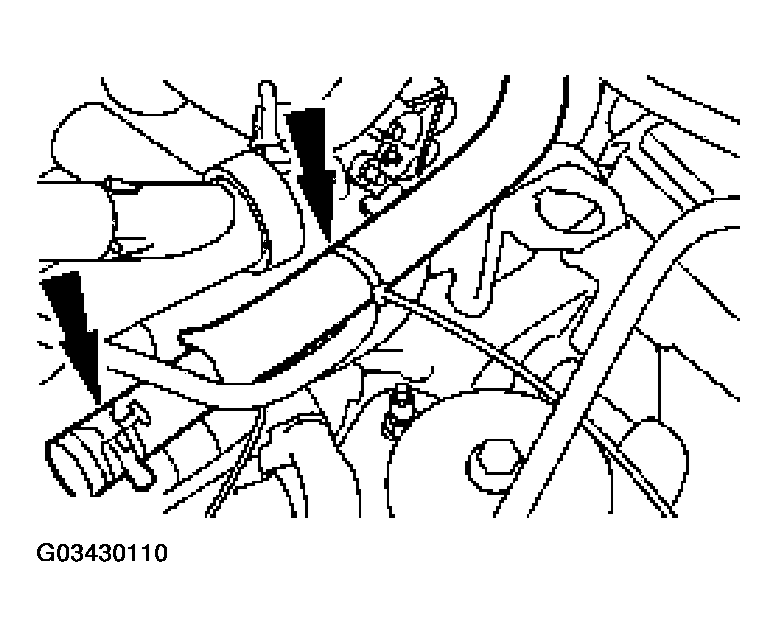

    Fig 55: Connecting Heater Hose & Install A New Tie-Strap
    G03430110Courtesy of FORD MOTOR CO.
  61. Connect the ground wire.
    Fig 56: Connecting Ground Wire
    G03430111Courtesy of FORD MOTOR CO.
  62. Connect the powertrain control module (PCM) electrical connector.
    Fig 57: Connecting Powertrain Control Module Electrical Connector
    G03430112Courtesy of FORD MOTOR CO.

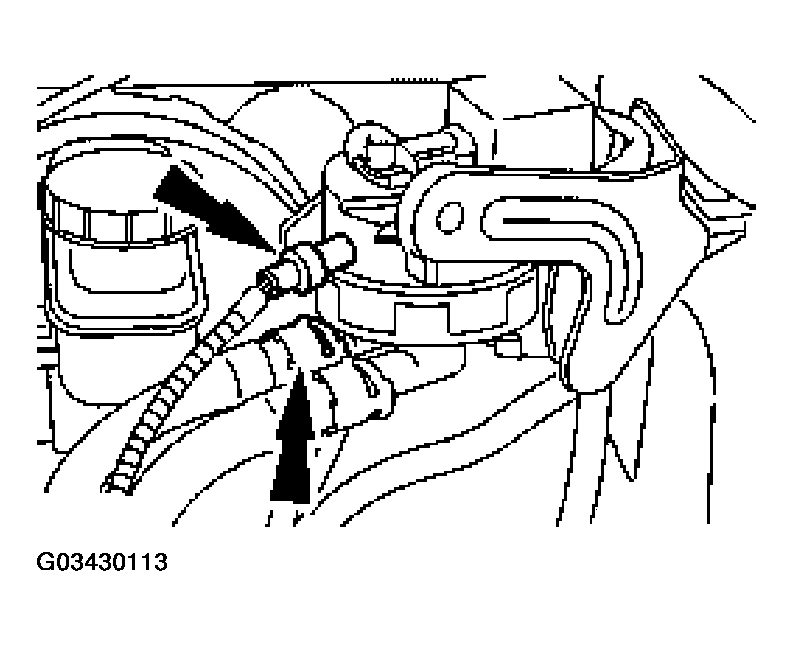

  63. Connect the vapor management valve (VMV) electrical connector.
    Fig 58: Connecting Vapor Management Valve Electrical Connector
    G03430113Courtesy of FORD MOTOR CO.

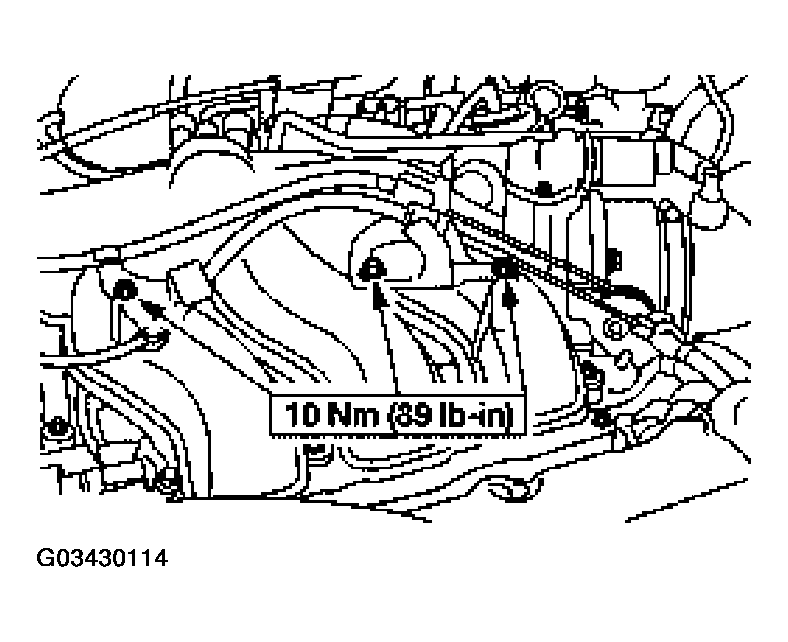

  64. Connect the accelerator cable and speed control actuator cable.
    Fig 59: Connecting Accelerator Cable & Speed Control Actuator Cable
    G03430114Courtesy of FORD MOTOR CO.
  65. Connect the fuel line. .
  66. Install the air cleaner outlet tube and air cleaner. .
  67. Install the battery and the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  68. Install the water pump drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
  69. Fill the crankcase with oil. SAE 5W-20 Motor Oil XO-5W20-QSP or equivalent meeting Ford specification WSSM2C153-G.
  70. Fill the engine cooling system. For additional information, refer ENGINE COOLING .
  71. Fill and purge the power steering system. For additional information, refer to STEERING SYSTEM - GENERAL INFORMATION .
  72. Recharge the A/C system. For additional information, refer to MANUAL A/C-HEATER SYSTEMS .
