Valve Seals: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve spring. Refer to VALVE SPRING .
    2. NOTE: Camshaft removed for clarity.

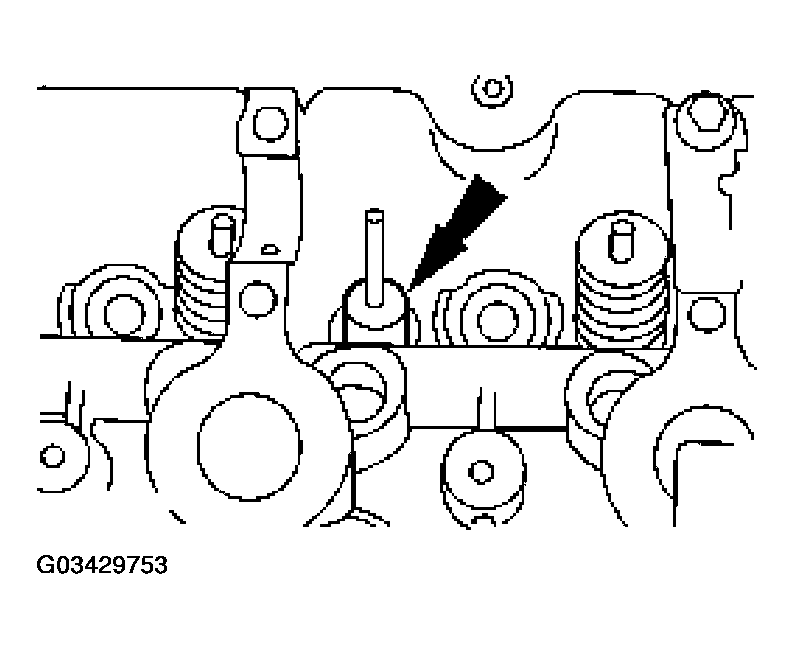

    Fig 1: Removing Valve Seal
    G03429753Courtesy of FORD MOTOR CO.
  2. Remove the valve seal.
