Valve Seals: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Lubricate the valve guide with clean engine oil.
  1. Using the special tool, install the valve seal.

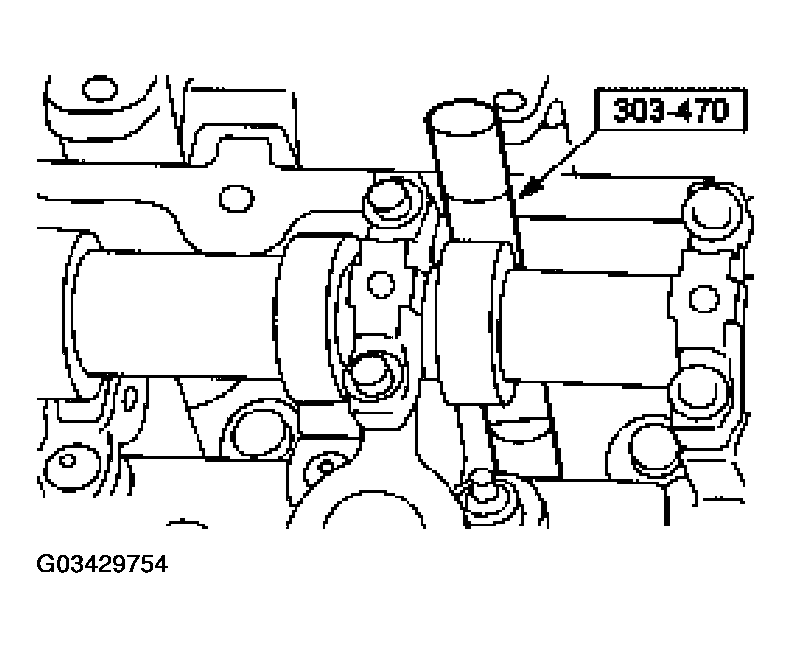

    Fig 1: Installing Valve Seal
    G03429754Courtesy of FORD MOTOR CO.
  2. Install the valve spring. Refer to VALVE SPRING .
