Valve Cover RH: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper intake manifold. For additional information, refer to UPPER INTAKE MANIFOLD .
    2. CAUTION: When removing the coil-on-plugs, a slight twisting motion will break the seal and ease removal.
    Fig 1: Removing 3 RH Coil-On-Plugs
    G03429674Courtesy of FORD MOTOR CO.
  2. Remove the three RH coil-on-plugs.
    1. Disconnect the electrical connectors.
    2. Remove the bolts.
    3. Remove the coils.
  3. Remove the wiring harness nuts and disconnect the oxygen sensor electrical connectors.

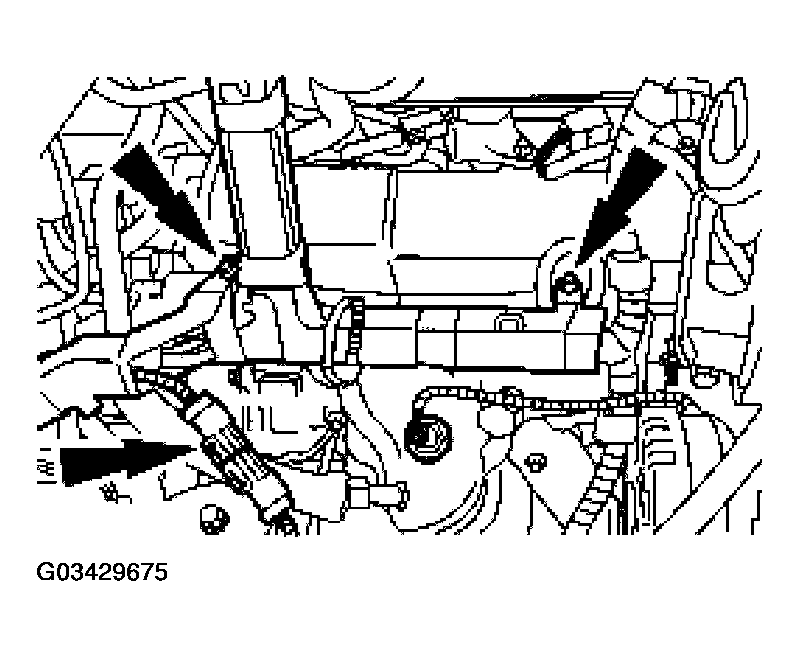

    Fig 2: Removing Wiring Harness Nuts
    G03429675Courtesy of FORD MOTOR CO.
  4. Remove the radio ignition interference capacitor.

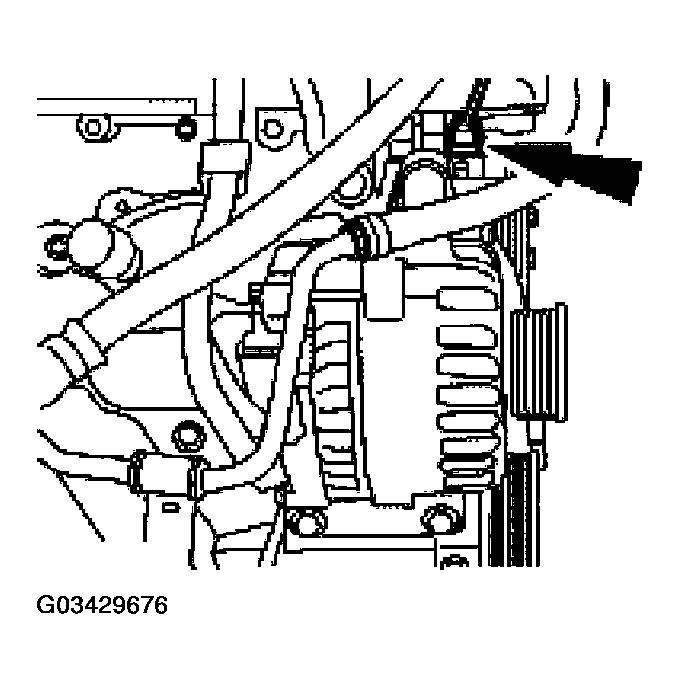

    Fig 3: Removing Radio Ignition Interference Capacitor
    G03429676Courtesy of FORD MOTOR CO.
  5. Separate the harness from the center locating pins and position aside.
    Fig 4: Separating Harness From Center Locating Pins
    G03429677Courtesy of FORD MOTOR CO.
  6. Disconnect the crankcase ventilation tube from the valve cover.
    Fig 5: Disconnecting Crankcase Ventilation Tube From Valve Cover
    G03429678Courtesy of FORD MOTOR CO.
  7. Remove the bolts, studs and the RH valve cover.
    • Remove and discard the gasket.
    Fig 6: Removing Bolts & Studs
    G03429679Courtesy of FORD MOTOR CO.
