Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH and RH valve covers. For additional information, refer to VALVE COVER LH  and VALVE COVER RH .
  2. Remove the LH and RH spark plugs.

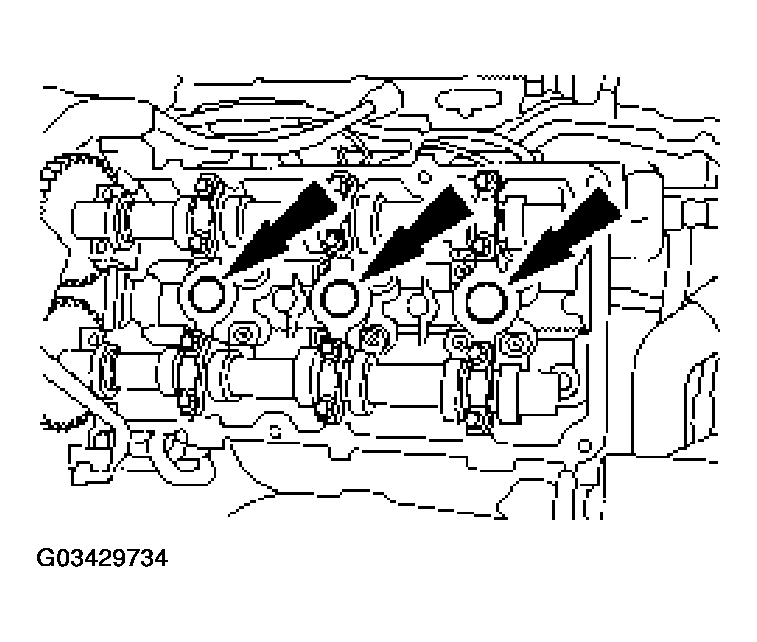

    Fig 1: Removing LH & RH Spark Plugs
    G03429734Courtesy of FORD MOTOR CO.
  3. Remove the RH front wheel.
  4. Remove the splash shield.

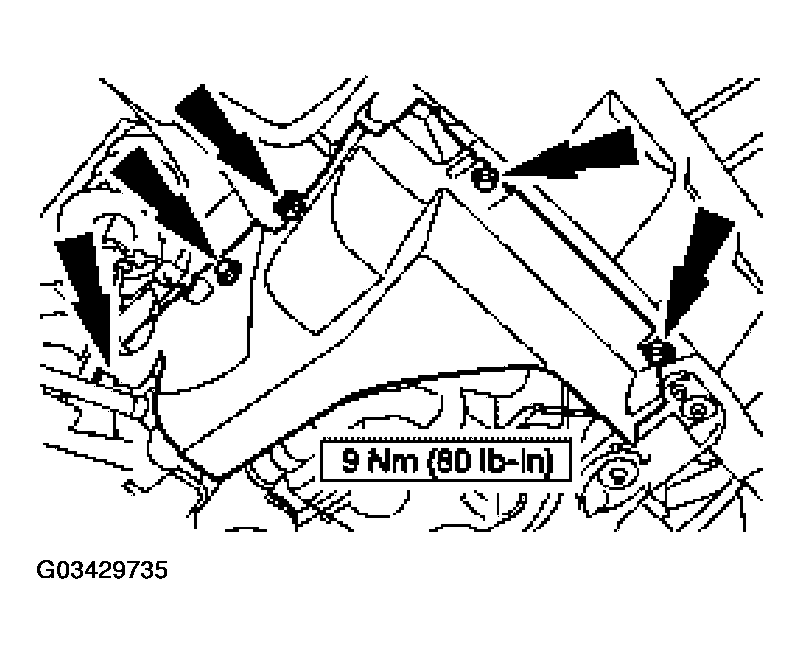

    Fig 2: Removing Splash Shield
    G03429735Courtesy of FORD MOTOR CO.
  5. Rotate the crankshaft until the camshaft lobe is pointing directly away from the follower.
  6. Using the special tool, remove the followers.

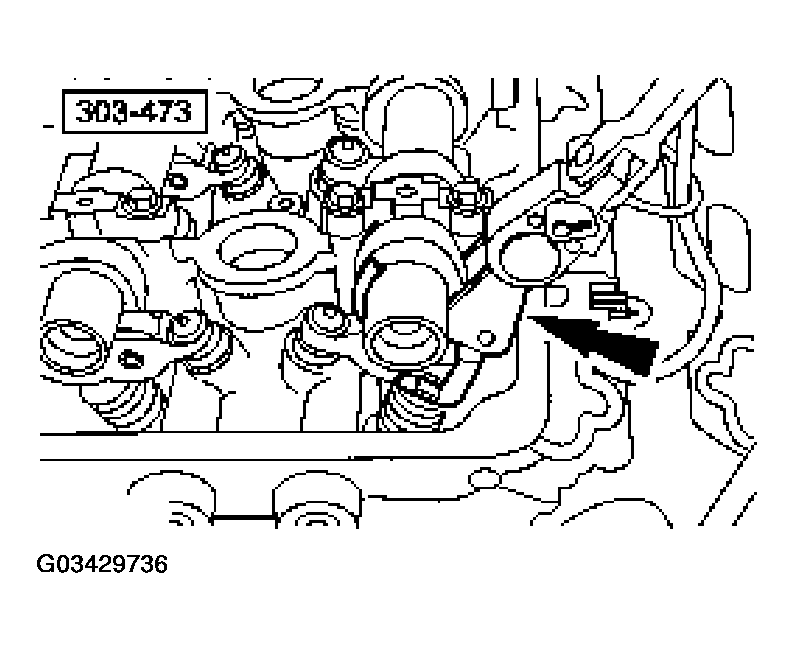

    Fig 3: Removing Followers
    G03429736Courtesy of FORD MOTOR CO.
  7. To install, reverse the removal procedure.
    • Lubricate the camshaft followers with clean engine oil.
