Oil Pump: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
  2. Remove the oil pump screen cover and tube. For additional information, refer to OIL PUMP SCREEN AND PICKUP TUBE .
  3. Remove the bolts in the indicated sequence and remove the oil pump.

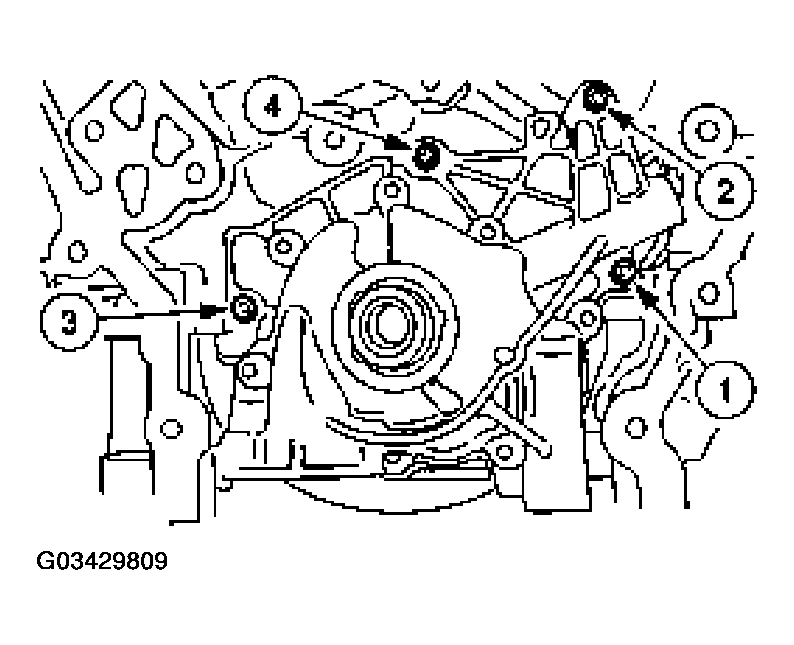

    Fig 1: Oil Pump Bolts Removal Sequence
    G03429809Courtesy of FORD MOTOR CO.
