Oil Pump: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the oil pump and install the bolts in the sequence shown.

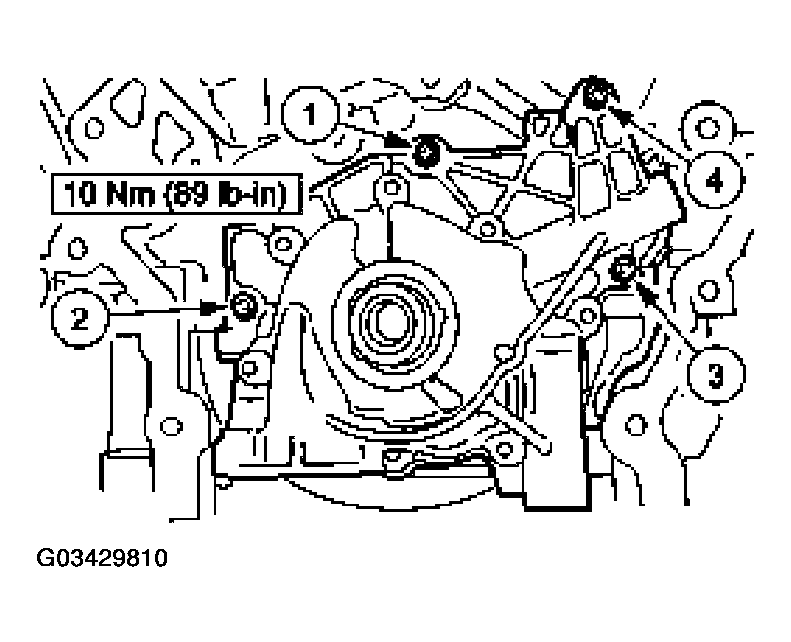

    Fig 1: Oil Pump Bolts Tightening Sequence
    G03429810Courtesy of FORD MOTOR CO.
  2. Install the oil pump screen cover and tube. For additional information, refer to OIL PUMP SCREEN AND PICKUP TUBE .
  3. Install the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
