Oil Pump Screen and Pickup Tube: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. For additional information, refer to OIL PAN .
  2. Remove the nut, bolts and the oil pump screen and pickup tube.

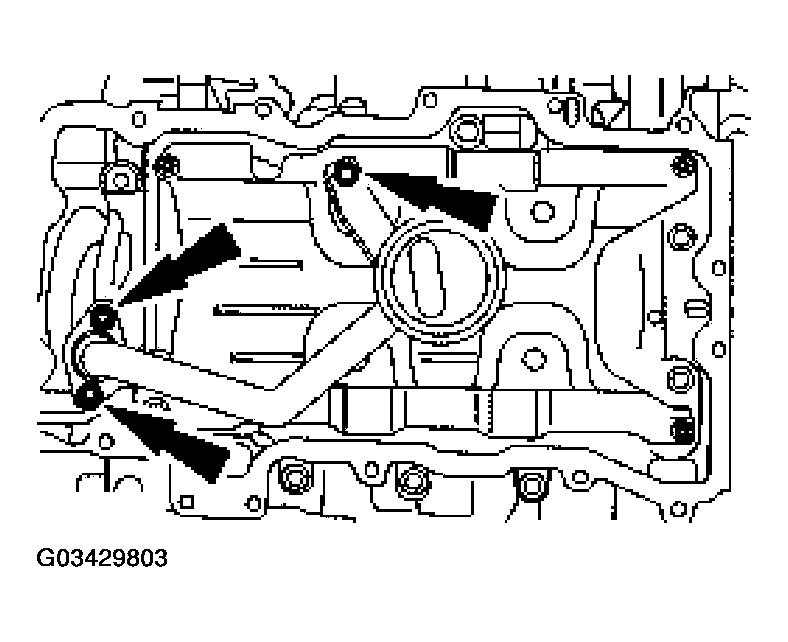

    Fig 1: Removing Nut & Bolts
    G03429803Courtesy of FORD MOTOR CO.
  3. Remove and discard the O-ring seal.
    Fig 2: Removing & O-Ring Seal
    G03429804Courtesy of FORD MOTOR CO.
