Oil Pump Screen and Pickup Tube: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new O-ring seal and lubricate with clean engine oil.
    Fig 1: Installing A New O-Ring Seal
    G03429805Courtesy of FORD MOTOR CO.
  2. Install the oil pump screen and pickup tube.
    1. Position the oil pump screen and pickup tube.
    2. Install the bolts.
    3. Install the nut.
      • Tighten the nut in two stages.
      • Stage 1: Tighten to 5 Nm (44 lb-in).
      • Stage 2: Tighten 45 degrees.

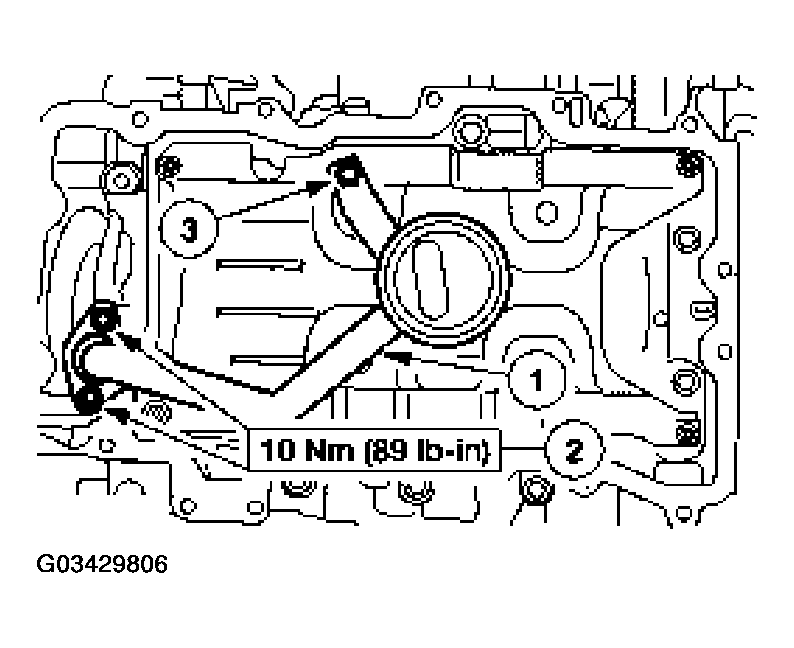

      Fig 2: Installing Oil Pump Screen & Pickup Tube Nut & Bolts
      G03429806Courtesy of FORD MOTOR CO.
  3. Install the oil pan. For additional information, refer to OIL PAN .
