Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. .
  2. Remove the right side splash shield.

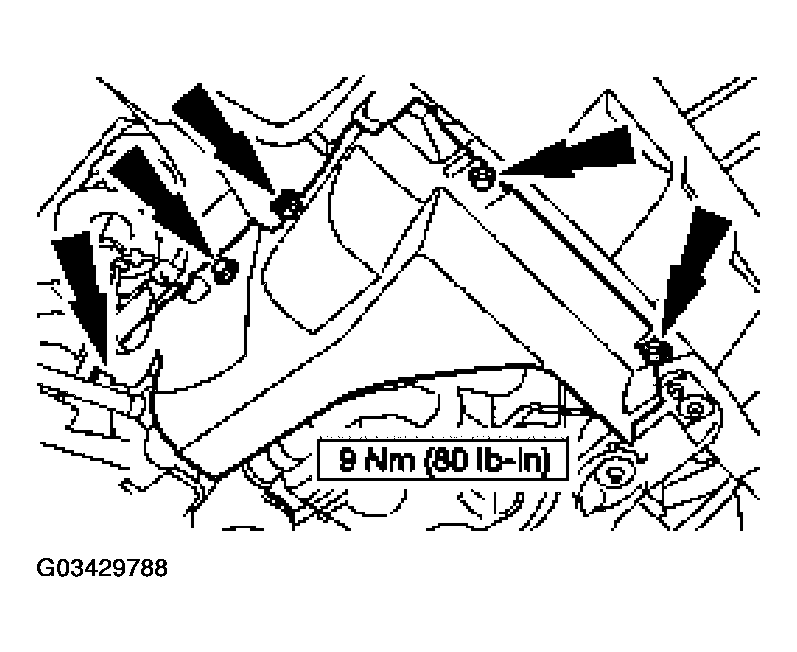

    Fig 1: Removing Right Side Splash Shield
    G03429788Courtesy of FORD MOTOR CO.
    3. NOTE: The A/C compressor has been removed for clarity.

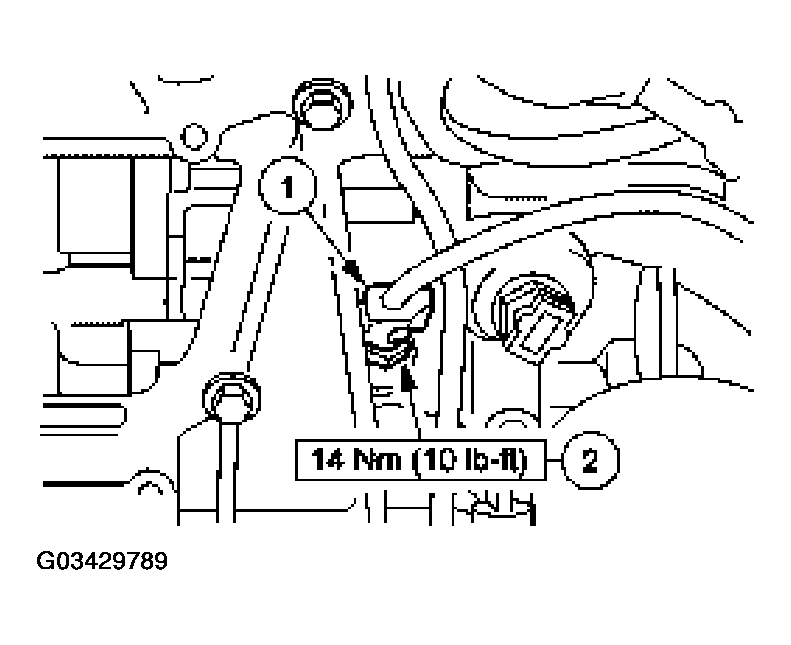

    Fig 2: Disconnecting Electrical Connector
    G03429789Courtesy of FORD MOTOR CO.
  3. Remove the oil pressure sender.
    1. Disconnect the electrical connector.
    2. Remove the sender.
  4. To install, reverse the removal procedure.
