Oil Pan: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flexible exhaust pipe. .
  2. Disconnect the downstream catalyst monitor sensor.

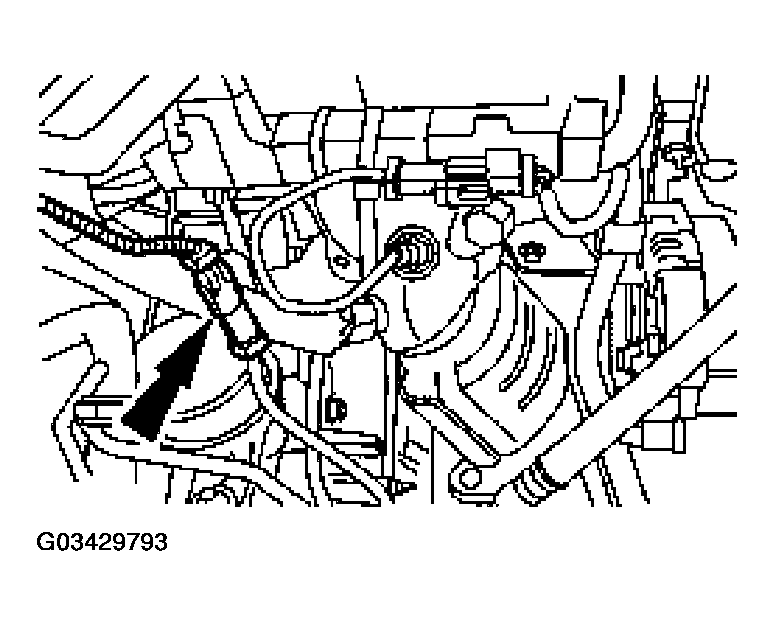

    Fig 1: Disconnecting Downstream Catalyst Monitor Sensor
    G03429793Courtesy of FORD MOTOR CO.
  3. Drain the oil.
  4. Install the drain plug.

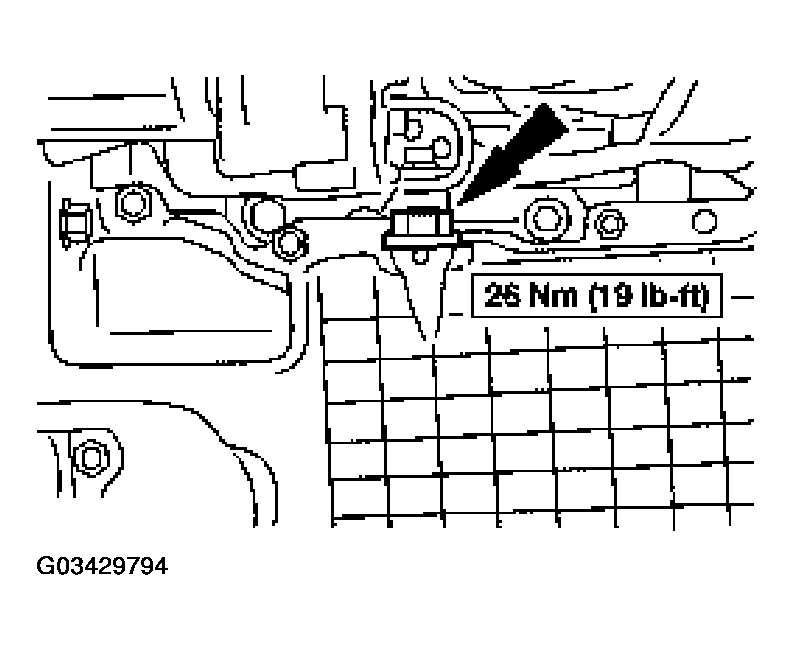

    Fig 2: Installing Drain Plug
    G03429794Courtesy of FORD MOTOR CO.
  5. Remove and discard the oil filter.
  6. Remove the 15 bolts.

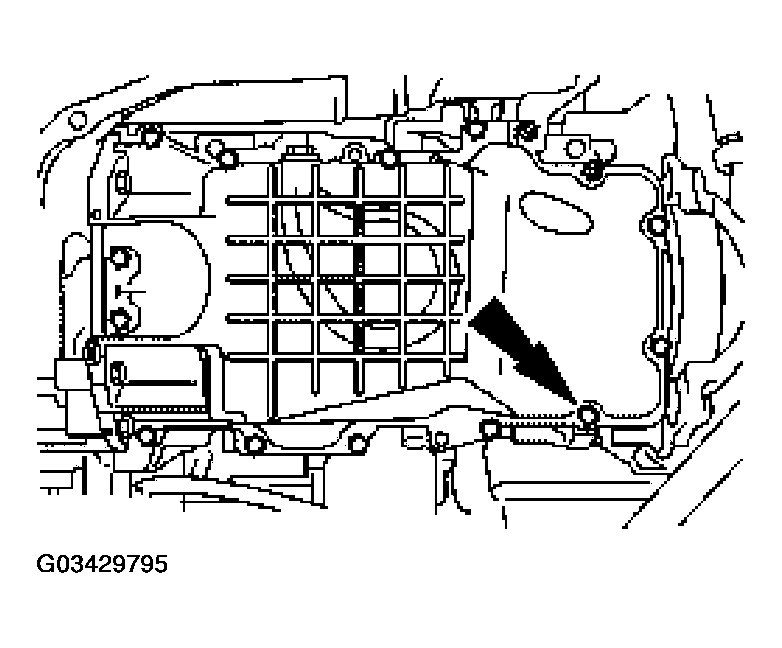

    Fig 3: Removing Oil Pan Bolts
    G03429795Courtesy of FORD MOTOR CO.
  7. Remove the three bolts and the oil pan.

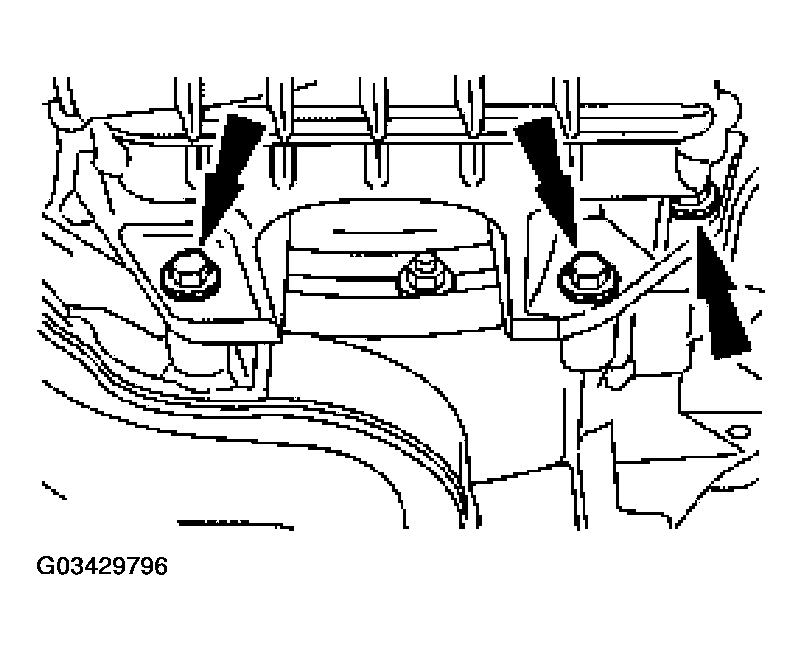

    Fig 4: Removing Three Bolts & Oil Pan
    G03429796Courtesy of FORD MOTOR CO.
