Oil Pan: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

Clean all sealing surfaces on the engine and the oil pan with metal surface cleaner.
Position a new gasket on the oil pan.

NOTE: Clean and degrease all sealing surfaces with metal surface cleaner.

NOTE: The oil pan must be installed and the bolts tightened with in four minutes of sealant application.

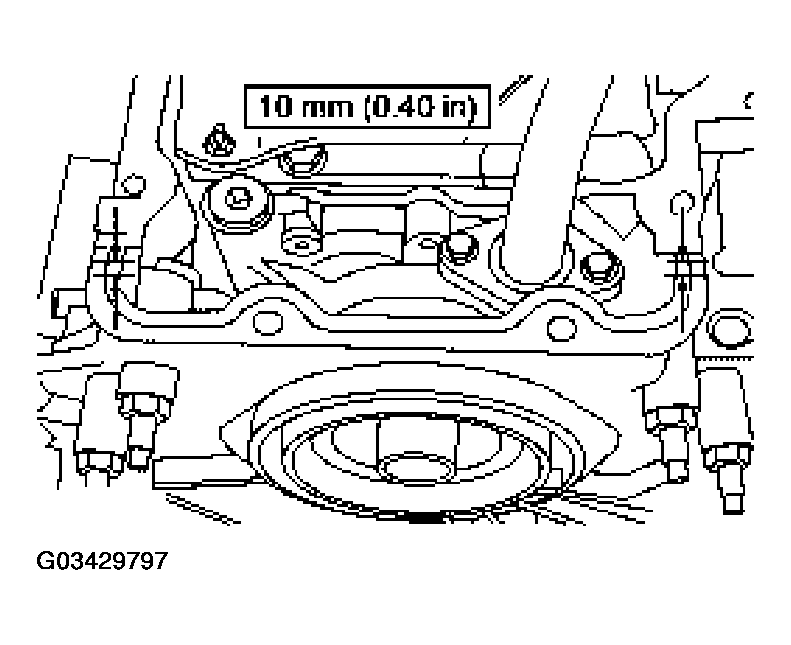

Fig 1: Applying 10 mm (0.40 in) Diameter Dot Of Silicone Gasket

Courtesy of FORD MOTOR CO.

Apply a 10 mm (0.40 in) diameter dot of silicone gasket and sealer to the areas indicated.
Position the oil pan and gasket and loosely install the bolts in the sequence shown.

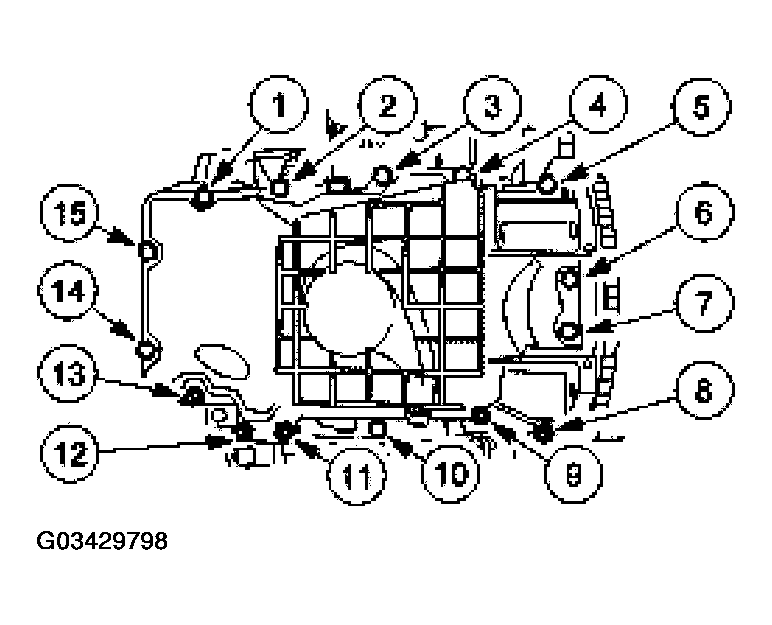

Fig 2: Installing Oil Pan Bolts Sequence
Courtesy of FORD MOTOR CO.
Install the oil pan-to-transaxle bolts.

Fig 3: Installing Oil Pan-To-Transaxle Bolts
Courtesy of FORD MOTOR CO.
Tighten the oil pan bolts in the sequence shown.

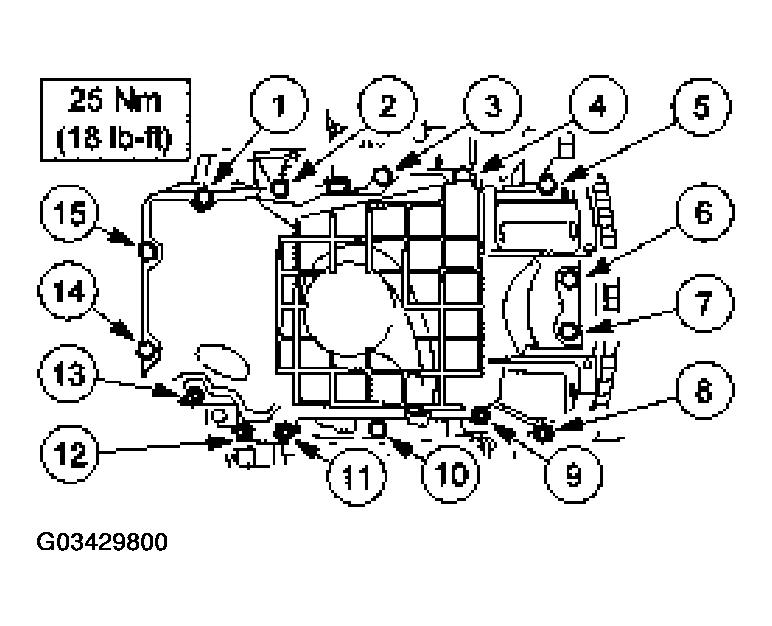

Fig 4: Oil Pan Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.
Lubricate the oil filter O-ring with clean engine oil and install the oil filter.

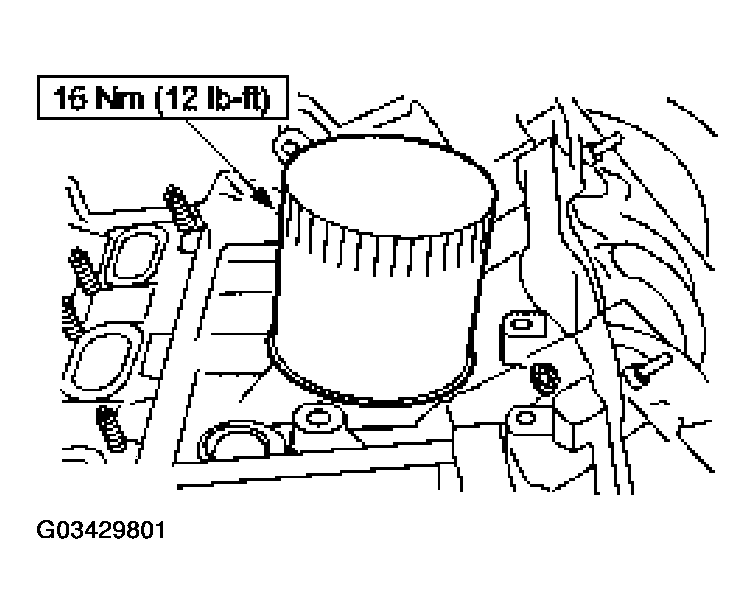

Fig 5: Installing Oil Filter
Courtesy of FORD MOTOR CO.
Install the exhaust flexible exhaust pipe. .
Connect the downstream catalyst monitor.

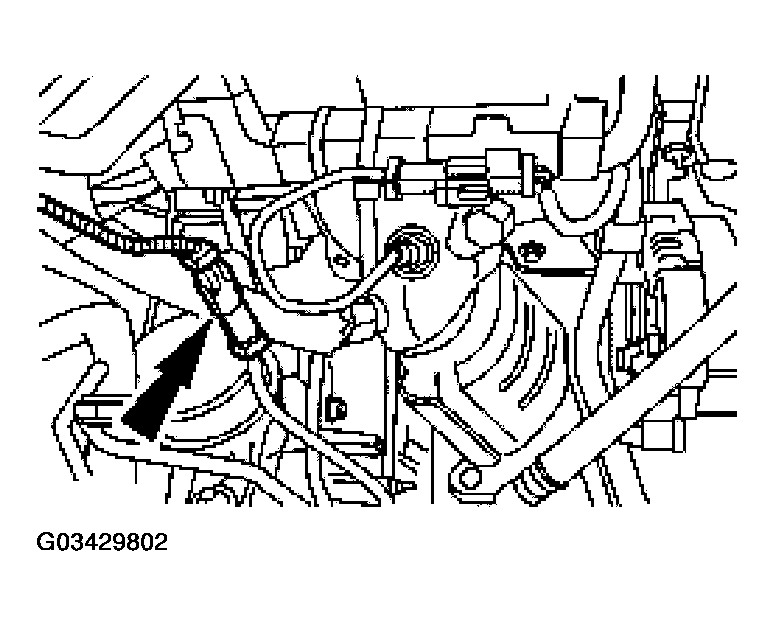

Fig 6: Connecting Downstream Catalyst
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Fill the crankcase with clean engine oil.
