Oil Pan Baffle: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump screen cover and tube. For additional information, refer to OIL PUMP SCREEN AND PICKUP TUBE .
  2. Remove the nuts and the oil pan baffle.

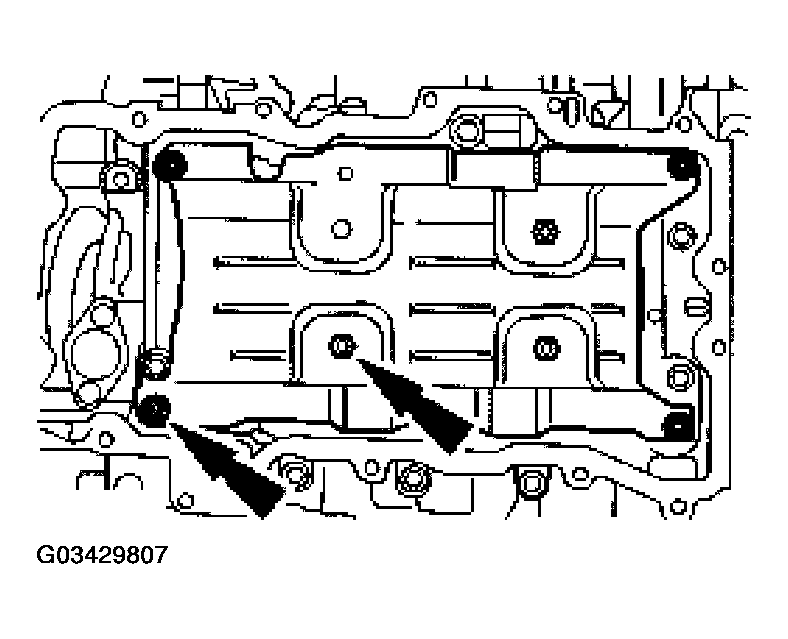

    Fig 1: Removing Nuts & Oil Pan Baffle
    G03429807Courtesy of FORD MOTOR CO.
