Oil Pan Baffle: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the oil pan baffle and install the nuts.
    • Tighten the nuts in two stages.
    • Stage 1: Tighten to 5 Nm (44 lb-in).
    • Stage 2: Tighten 45 degrees.

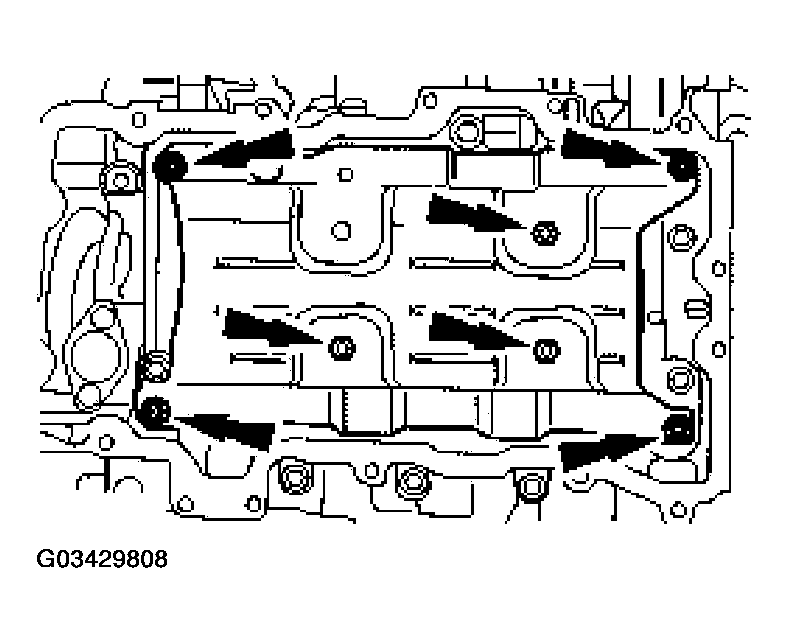

    Fig 1: Installing Oil Pan Baffle Nuts
    G03429808Courtesy of FORD MOTOR CO.
  2. Install the oil pump screen cover and tube. For additional information, refer to OIL PUMP SCREEN AND PICKUP TUBE .
