Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the push-pin securing the top radiator hose to the radiator core support and position the hose aside.
  2. Remove the oil level indicator.

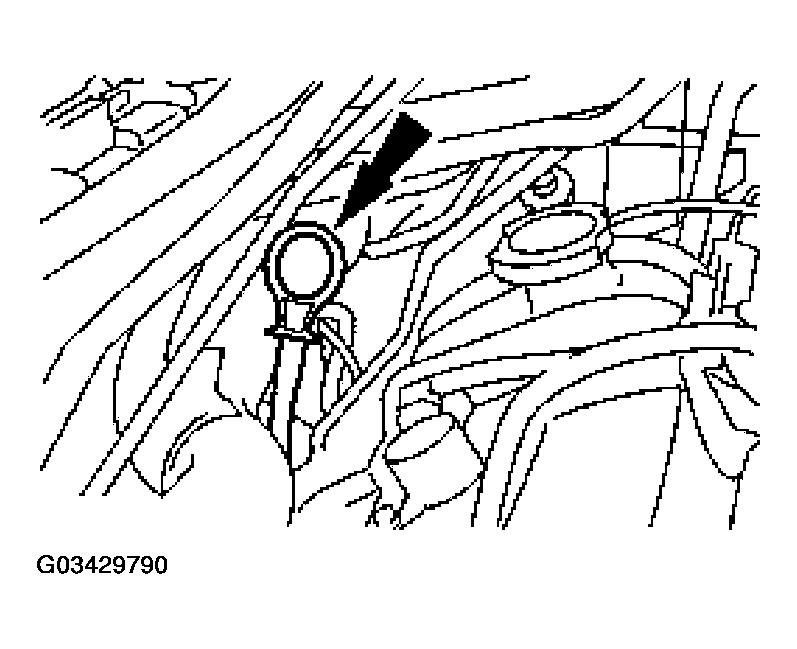

    Fig 1: Removing Oil Level Indicator
    G03429790Courtesy of FORD MOTOR CO.
  3. Remove the oil level indicator tube.
    1. Remove the stud bolt.
    2. Remove the oil level indicator tube from the engine.
    Fig 2: Removing Oil Level Indicator Tube From Engine
    G03429791Courtesy of FORD MOTOR CO.
  4. Remove the oil level indicator tube from the vehicle by guiding it between the radiator core support and the front grille.
    Fig 3: Removing Oil Level Indicator Tube From Vehicle
    G03429792Courtesy of FORD MOTOR CO.
    5. NOTE: Installation of the oil level indicator may require the assistance of a second technician to align the tube with the orifice.
  5. To install, reverse the removal procedure.
    • Install a new O-ring seal and lubricate with clean engine oil.
