Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine coolant. For additional information refer to ENGINE COOLING .
  2. Remove the oil pan drain bolt and drain the engine oil.

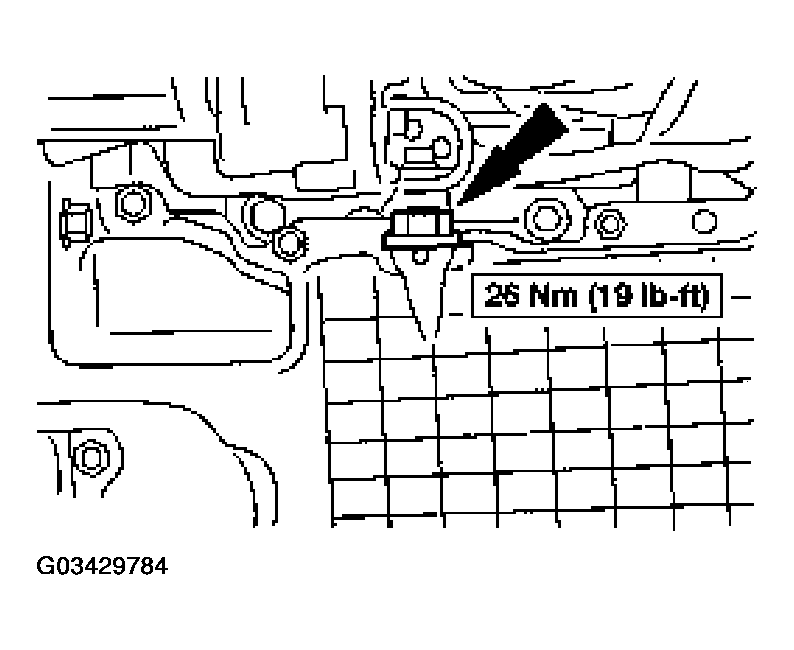

    Fig 1: Removing Oil Pan Drain Bolt
    G03429784Courtesy of FORD MOTOR CO.
  3. Remove and discard the oil filter.

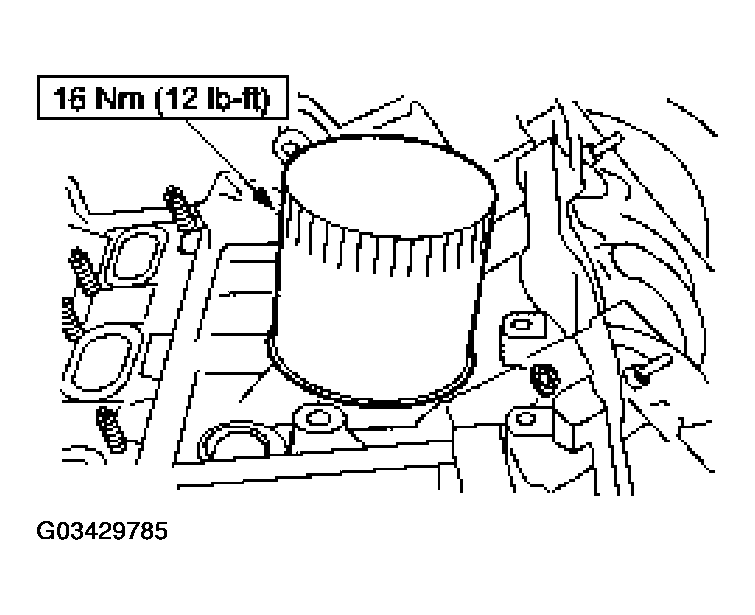

    Fig 2: Removing & Discard Oil Filter
    G03429785Courtesy of FORD MOTOR CO.
  4. Disconnect the coolant hoses at the cooler.
    Fig 3: Disconnecting Coolant Hoses At Cooler
    G03429786Courtesy of FORD MOTOR CO.
  5. Remove and discard the oil cooler.

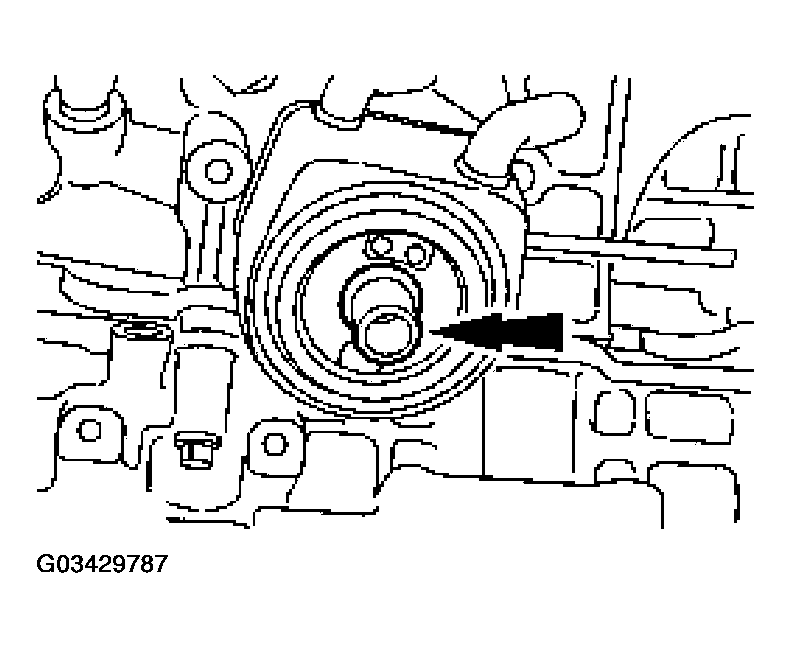

    Fig 4: Removing & Oil Cooler
    G03429787Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
    • Install a new oil cooler.
    • Fill the crankcase with clean engine oil.
