Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft followers. For additional information, refer to ROLLER FOLLOWERS .
    2. NOTE: Mark the positions of the hydraulic lash adjusters to make sure they are assembled in their original positions.

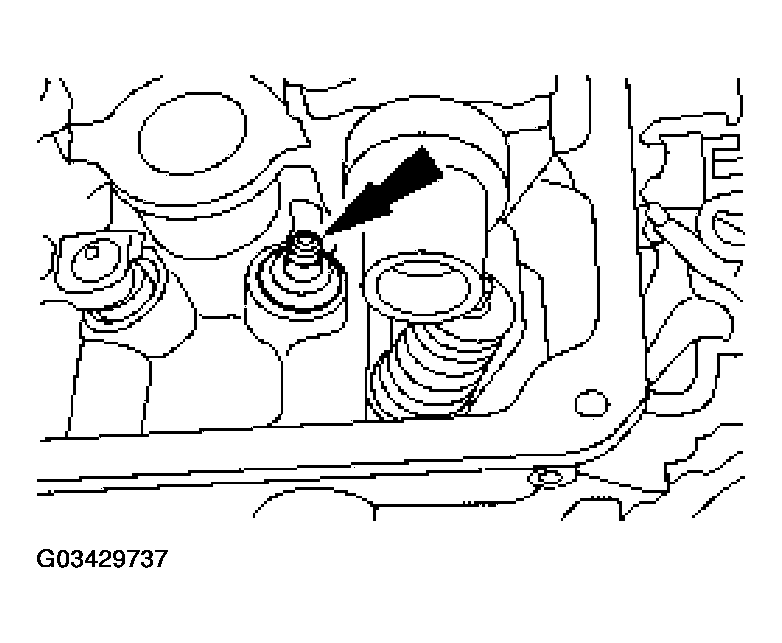

    Fig 1: Removing Hydraulic Lash Adjusters
    G03429737Courtesy of FORD MOTOR CO.
  2. Remove the hydraulic lash adjusters.
    3. NOTE: Inspect the hydraulic lash adjusters for scoring marks and uneven wear in the bore. Install new lash adjusters if necessary.
  3. To install, reverse the removal procedure.
    • Lubricate the hydraulic lash adjusters with clean engine oil.
