Exhaust Manifold RH: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the generator. For additional information, refer to GENERATORS & REGULATORS .
  2. Remove the exhaust flexible pipe.
  3. Disconnect the RH heated oxygen sensor (HO2S) electrical connector.
  4. Disconnect the exhaust gas recirculation (EGR) tube nut to the exhaust manifold.

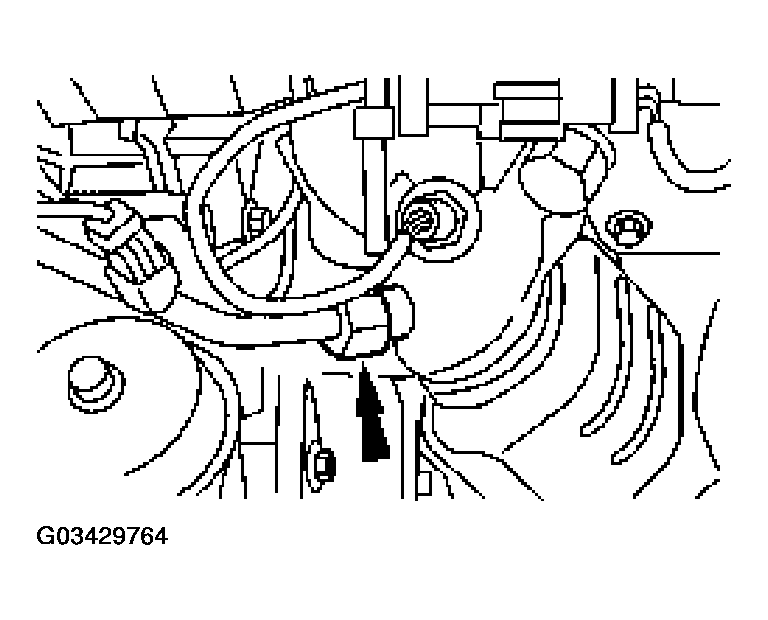

    Fig 1: Disconnecting Exhaust Gas Recirculation (EGR) Tube Nut
    G03429764Courtesy of FORD MOTOR CO.
  5. Remove the RH manifold.
    • Discard the gasket.

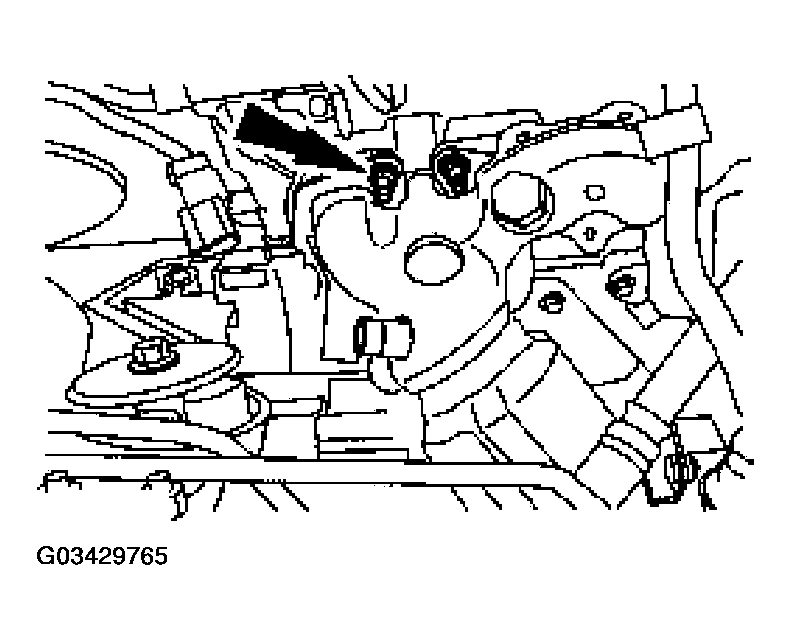

    Fig 2: Removing RH Manifold
    G03429765Courtesy of FORD MOTOR CO.
