Exhaust Manifold RH: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position a new gasket and install the exhaust manifold nuts in the sequence shown.
    Fig 1: Exhaust Manifold Nuts Tightening Sequence
    G03429766Courtesy of FORD MOTOR CO.
  2. Connect the EGR tube nut to the exhaust manifold.

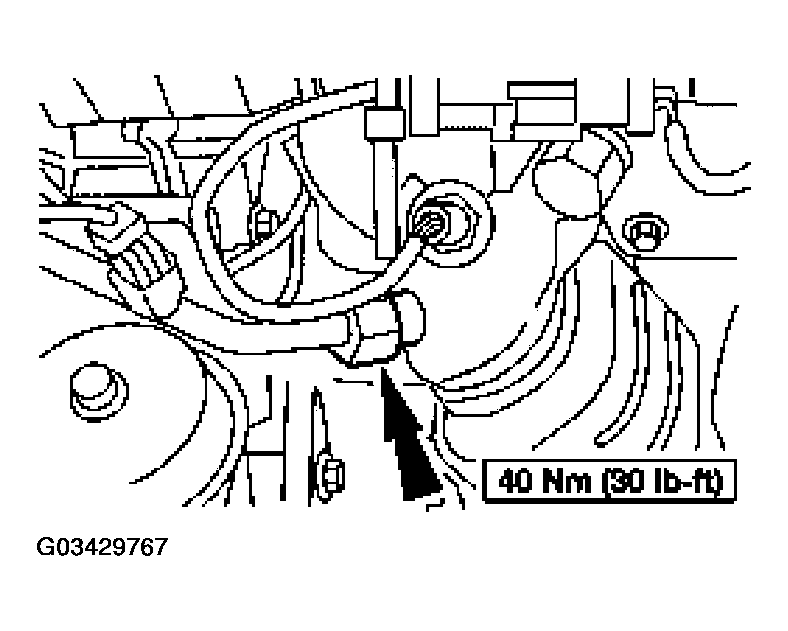

    Fig 2: Connecting EGR Tube Nut To Exhaust Manifold
    G03429767Courtesy of FORD MOTOR CO.
  3. Connect the RH HO2S electrical connector.
  4. Install the exhaust flexible pipe. .
  5. Install the generator. For additional information, refer to GENERATORS & REGULATORS .
