Exhaust Manifold LH: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position a new gasket and tighten the exhaust manifold in the sequence shown.

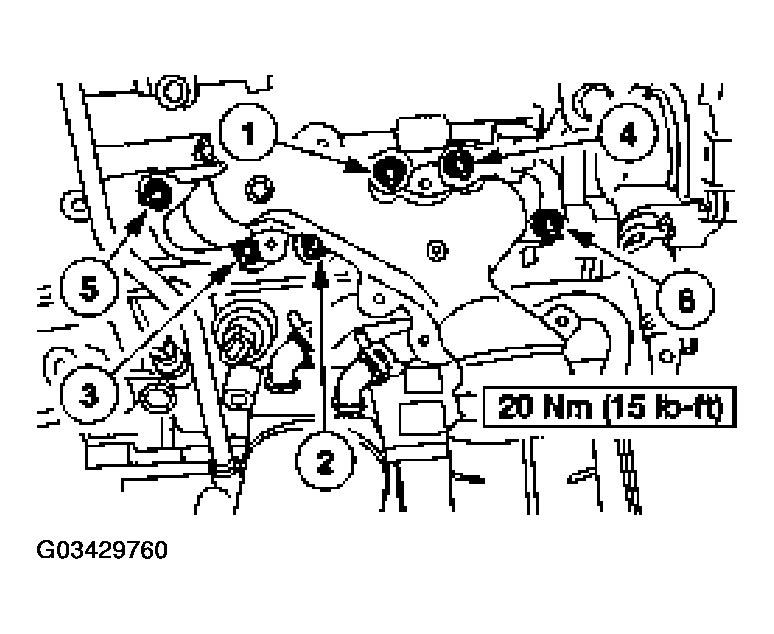

    Fig 1: Exhaust Manifold Tightening Sequence
    G03429760Courtesy of FORD MOTOR CO.
  2. Position the A/C compressor and install the bolts.

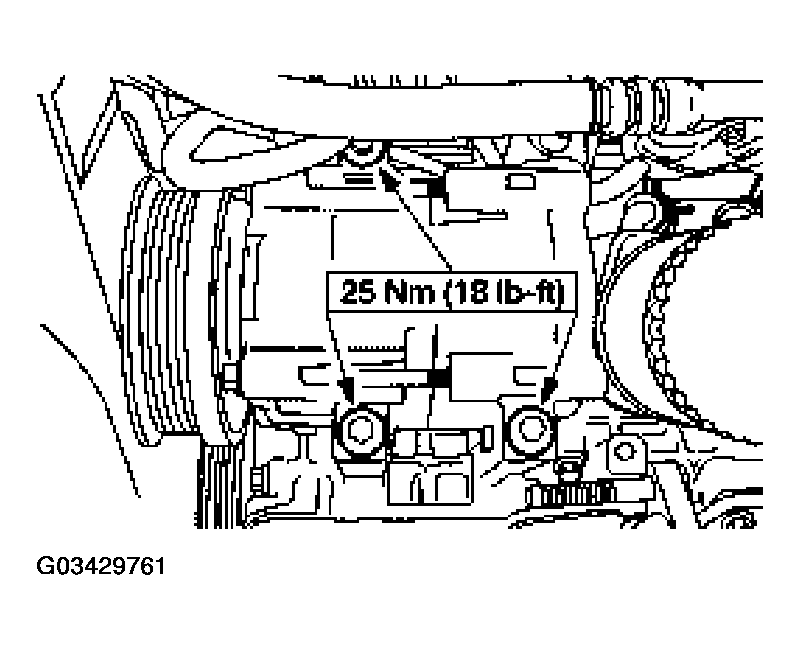

    Fig 2: Installing A/C Compressor Bolts
    G03429761Courtesy of FORD MOTOR CO.
  3. Rotate the accessory drive belt tensioner clockwise and install the belt. For correct drive belt installation, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
  4. Position the exhaust crossover, and install the nuts.

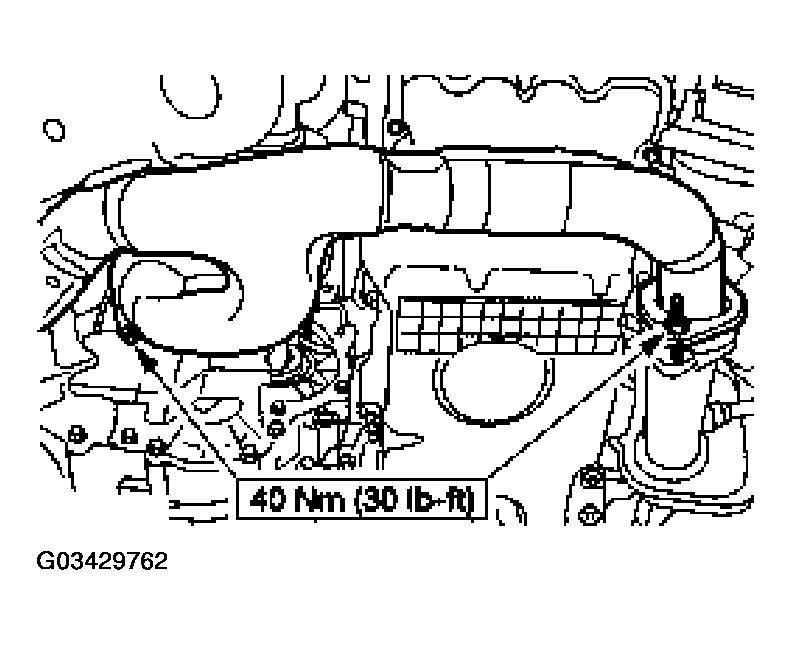

    Fig 3: Positioning Exhaust Crossover & Installing Nuts
    G03429762Courtesy of FORD MOTOR CO.
  5. Install the splash shield.

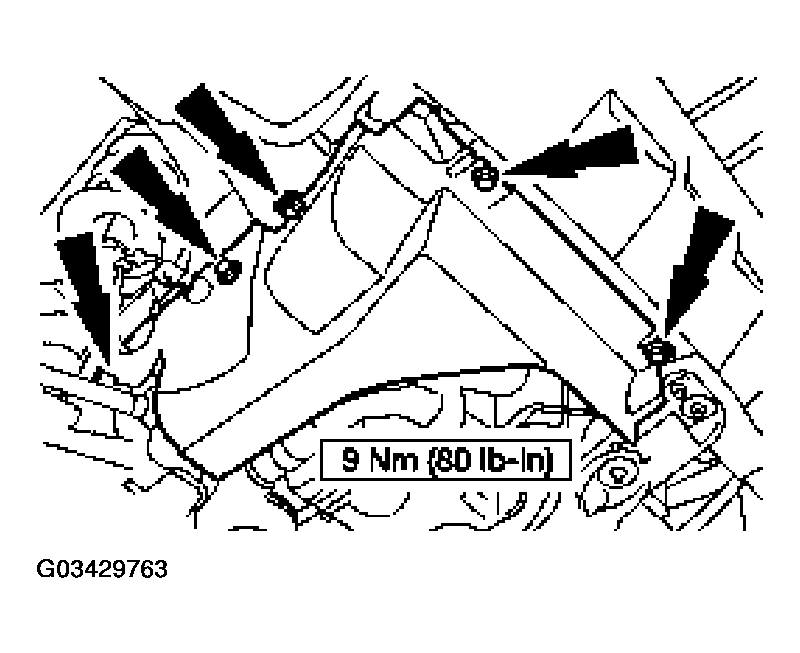

    Fig 4: Installing Splash Shield
    G03429763Courtesy of FORD MOTOR CO.
  6. Install the LH HO2S and the LH catalyst monitor. For additional information, refer to REMOVAL, OVERHAUL & INSTALLATION .
