Cylinder Head RH: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Remove the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD .
Remove the coolant bypass tube. For additional information, refer to ENGINE COOLING .
Remove the exhaust gas recirculation (EGR) tube. .
Remove the RH camshafts. For additional information, refer to CAMSHAFTS RH .

CAUTION: The camshaft followers must be installed in their original positions.

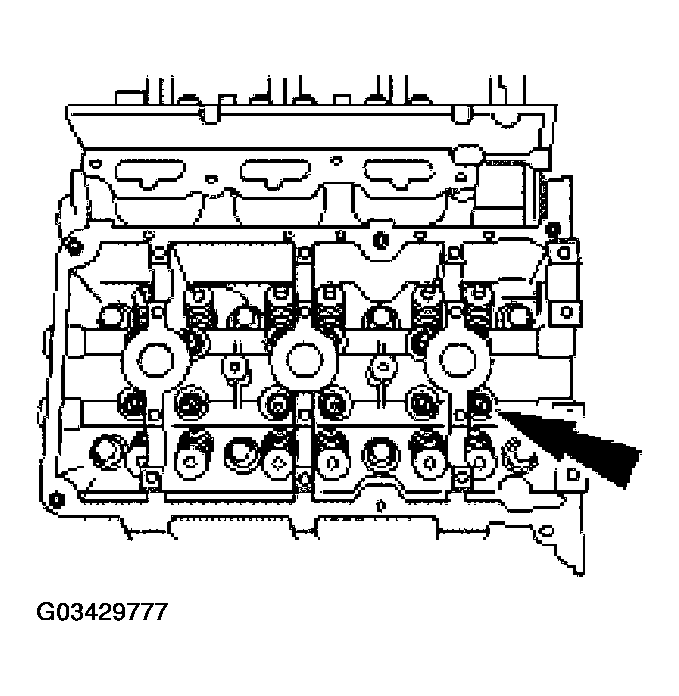

Fig 1: Removing Camshaft Followers

Courtesy of FORD MOTOR CO.

Remove the camshaft followers.

CAUTION: The hydraulic lash adjusters must be installed in their original position.

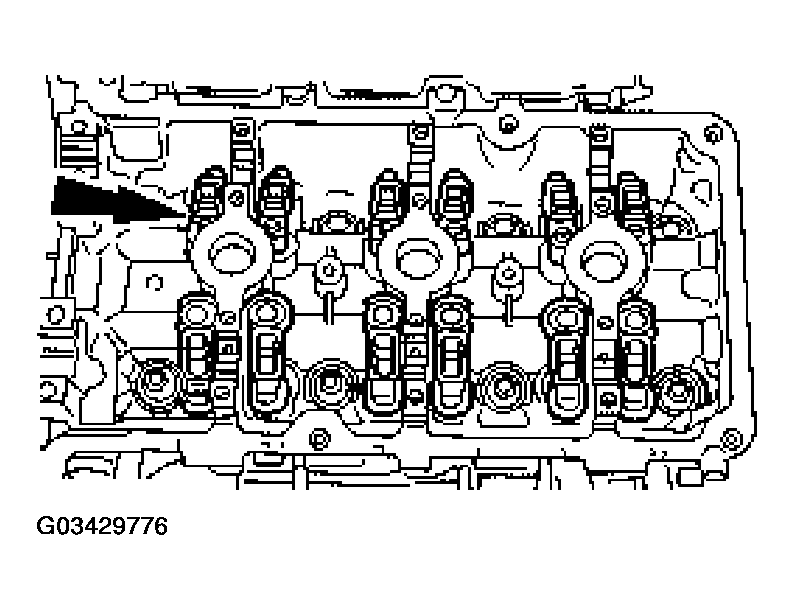

Fig 2: Removing Hydraulic Lash Adjusters

Courtesy of FORD MOTOR CO.

Remove the hydraulic lash adjusters.
Raise and support the vehicle on a hoist. .
Remove the six nuts from the RH exhaust manifold.

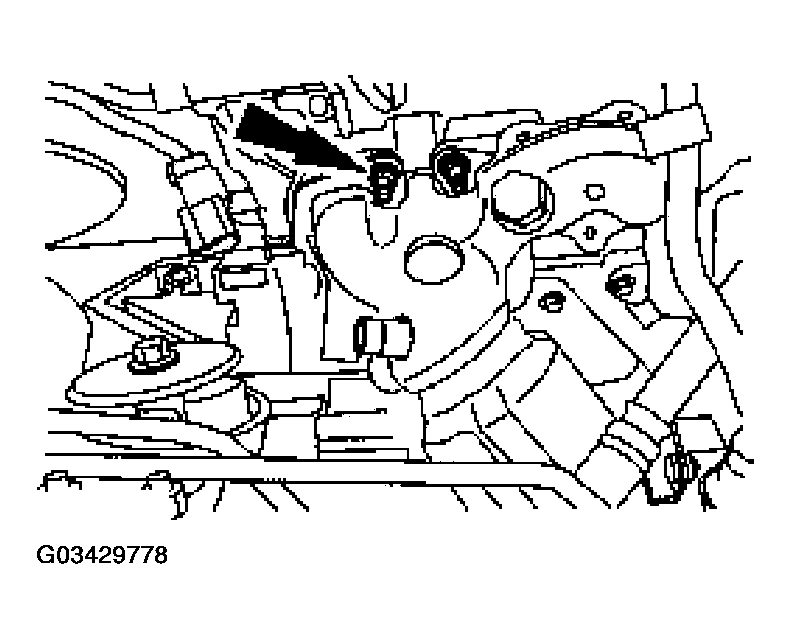

Fig 3: Removing Nuts From RH Exhaust Manifold
Courtesy of FORD MOTOR CO.
Lower the vehicle.

NOTE: New cylinder head bolts must be installed. They are torque-to-yield designed and cannot be reused.

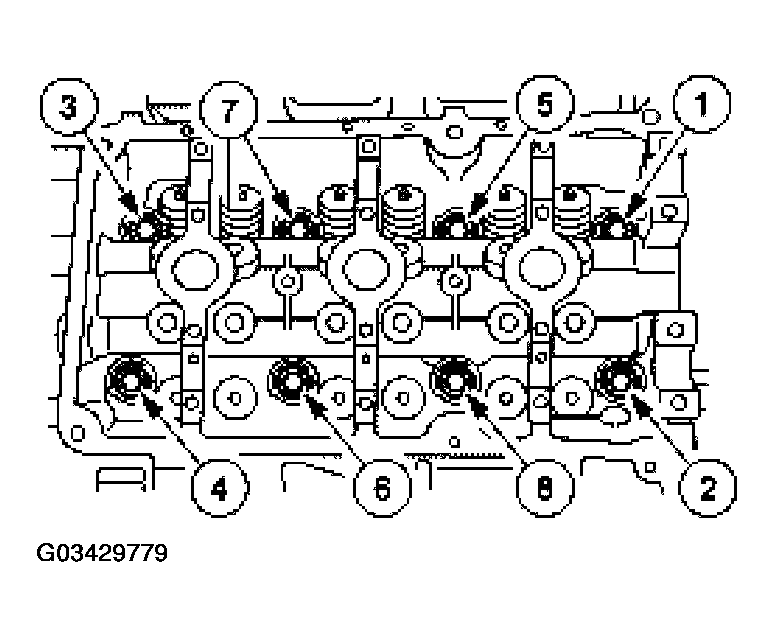

Fig 4: Locating Gasket & Bolts

Courtesy of FORD MOTOR CO.

Remove the bolts in the sequence shown and remove the cylinder head.
- Discard the gasket and the bolts.

NOTE: The straightedge used must be flat within 0.0051 mm (0.0002 in) per foot of tool length.

Support the cylinder head on a bench with the head gasket side up. Inspect all areas of the deck face with a straightedge and feeler gauge. The cylinder head must not have depressions deeper than 0.0254 mm (0.001 in) across a 38.1 mm (1.5 in) square area, or scratches more than 0.0254 mm (0.001 in) deep.
