Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
  2. Remove the splash shield.
    Fig 1: Removing Splash Shield
    G03429739Courtesy of FORD MOTOR CO.
  3. Install the special tool.

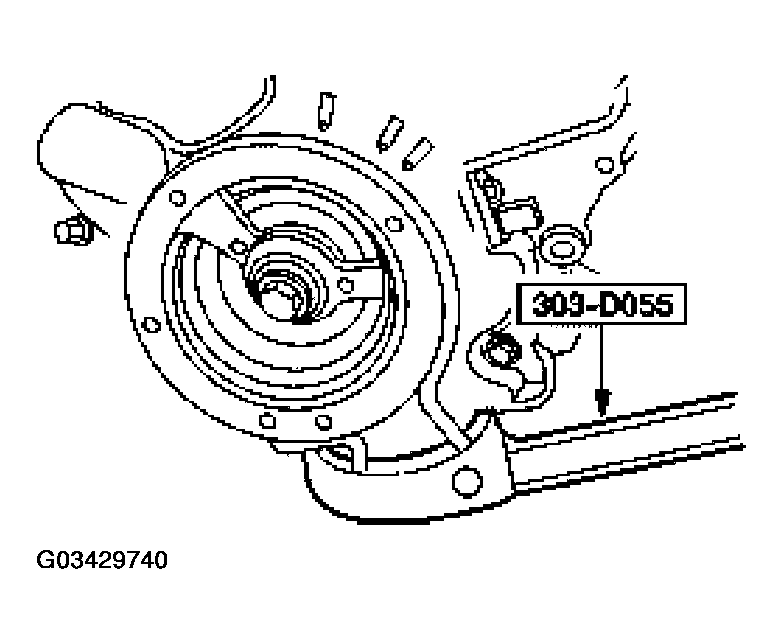

    Fig 2: Installing Special Tool
    G03429740Courtesy of FORD MOTOR CO.
  4. Remove the crankshaft pulley bolt and washer.

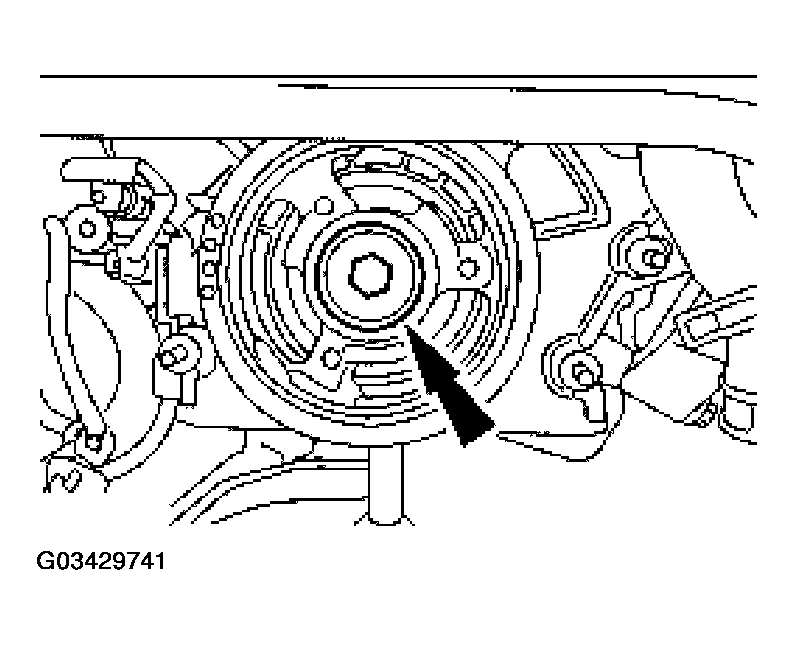

    Fig 3: Removing Crankshaft Pulley Bolt & Washer
    G03429741Courtesy of FORD MOTOR CO.
  5. Using the special tool, remove the crankshaft pulley.

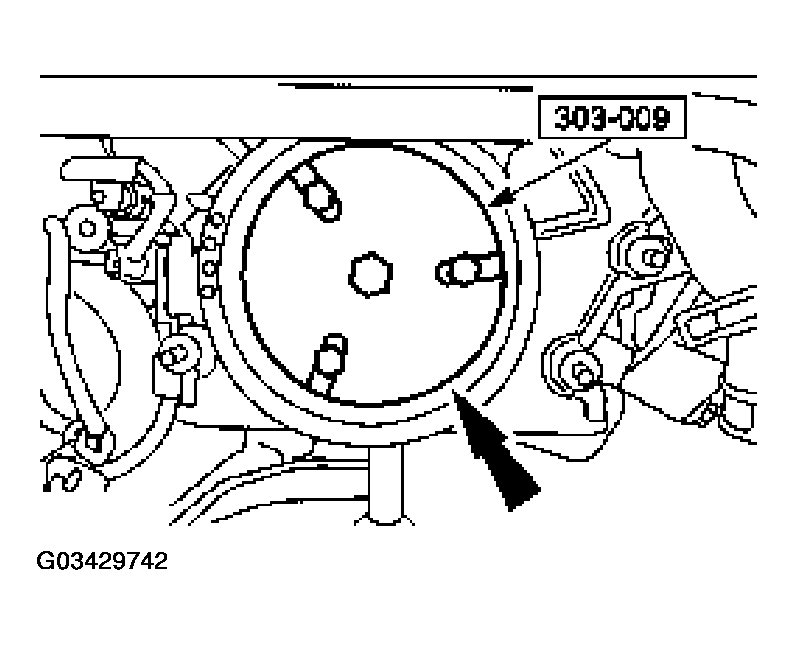

    Fig 4: Removing Crankshaft Pulley
    G03429742Courtesy of FORD MOTOR CO.
