Camshafts RH: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
    2. CAUTION: Cylinder head camshaft journal caps and cylinder heads are numbered to verify that they are assembled in their original positions.
    Fig 1: Loosening RH Camshaft Cap Bolts
    G03429699Courtesy of FORD MOTOR CO.
  2. Loosen the RH camshaft cap bolts evenly in the sequence shown to allow the camshafts to rise from the cylinder head and remove the caps.
  3. Remove the camshafts.

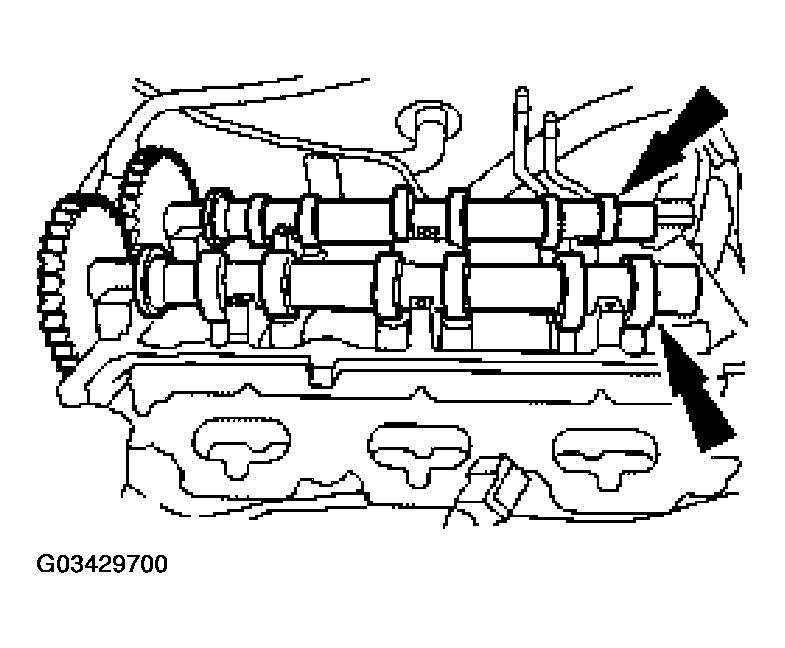

    Fig 2: Removing Camshafts
    G03429700Courtesy of FORD MOTOR CO.
