Disassembly And Assembly Of Subassemblies: Piston: Disassembly

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

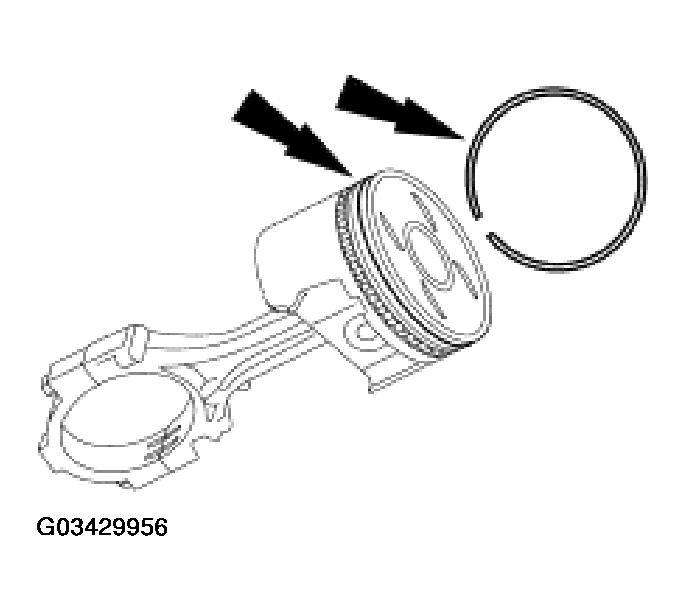

Remove the top compression ring.

Fig 1: Removing Top Compression Ring
Courtesy of FORD MOTOR CO.

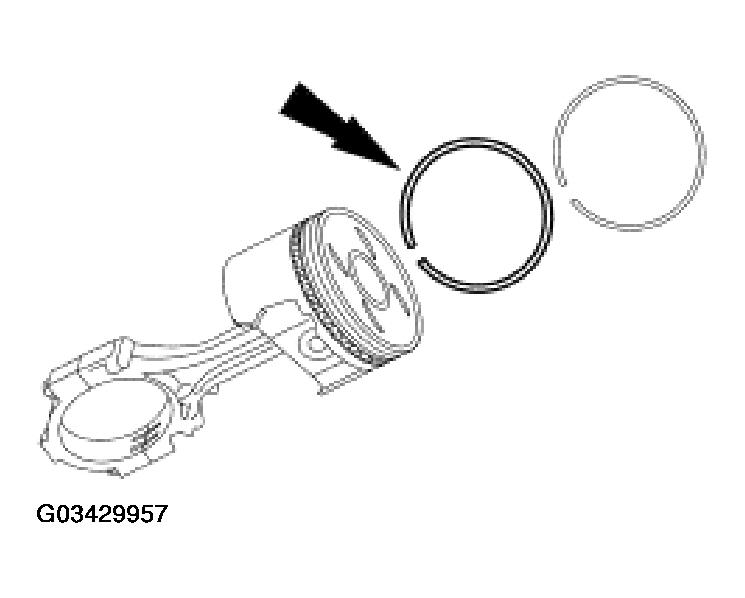

Remove the second compression ring.

Fig 2: Removing Second Compression Ring
Courtesy of FORD MOTOR CO.

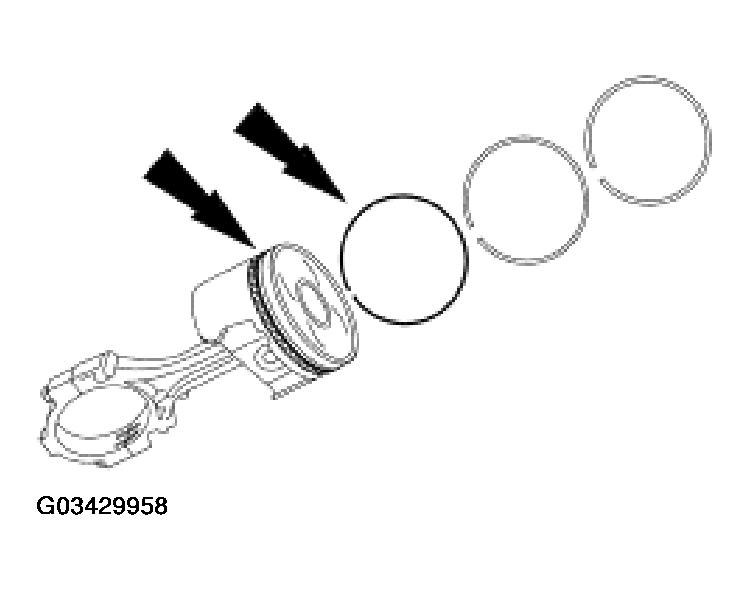

Remove the first oil control ring.

Fig 3: Removing First Oil Control Ring
Courtesy of FORD MOTOR CO.

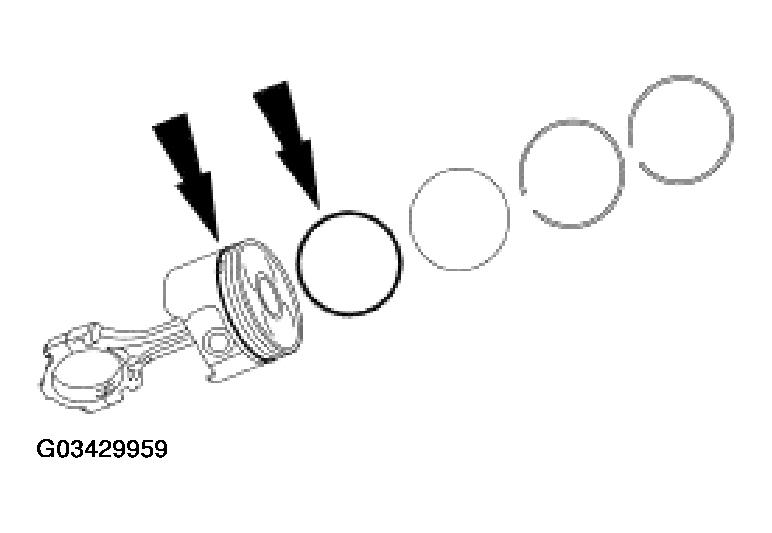

Remove the oil control spacer ring.

Fig 4: Removing Oil Control Spacer Ring
Courtesy of FORD MOTOR CO.

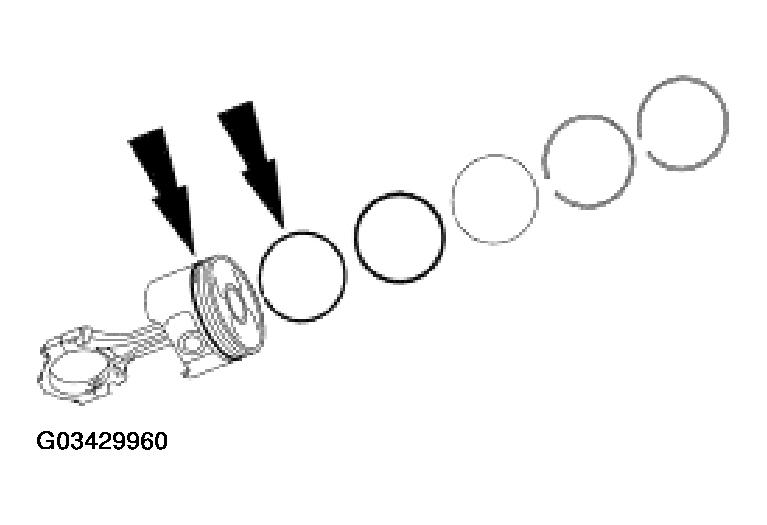

Remove the second oil control ring.

Fig 5: Removing Second Oil Control Ring
Courtesy of FORD MOTOR CO.

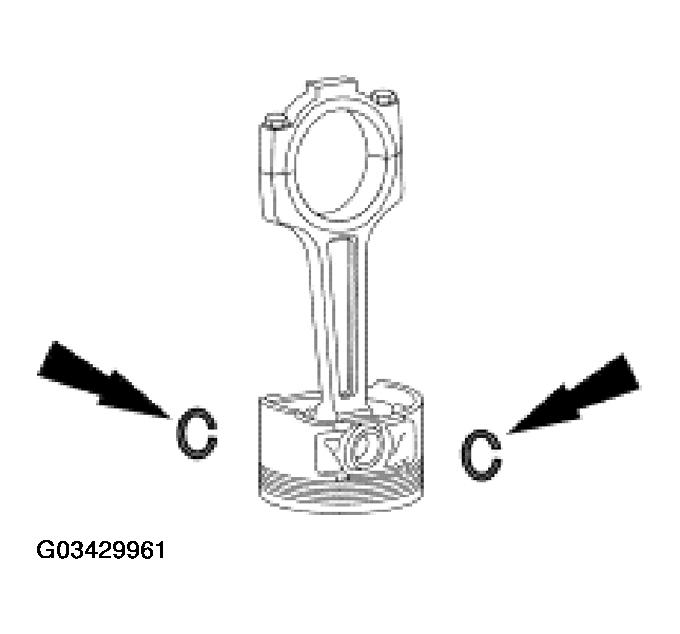

Remove the clips.

Fig 6: Removing Clips
Courtesy of FORD MOTOR CO.

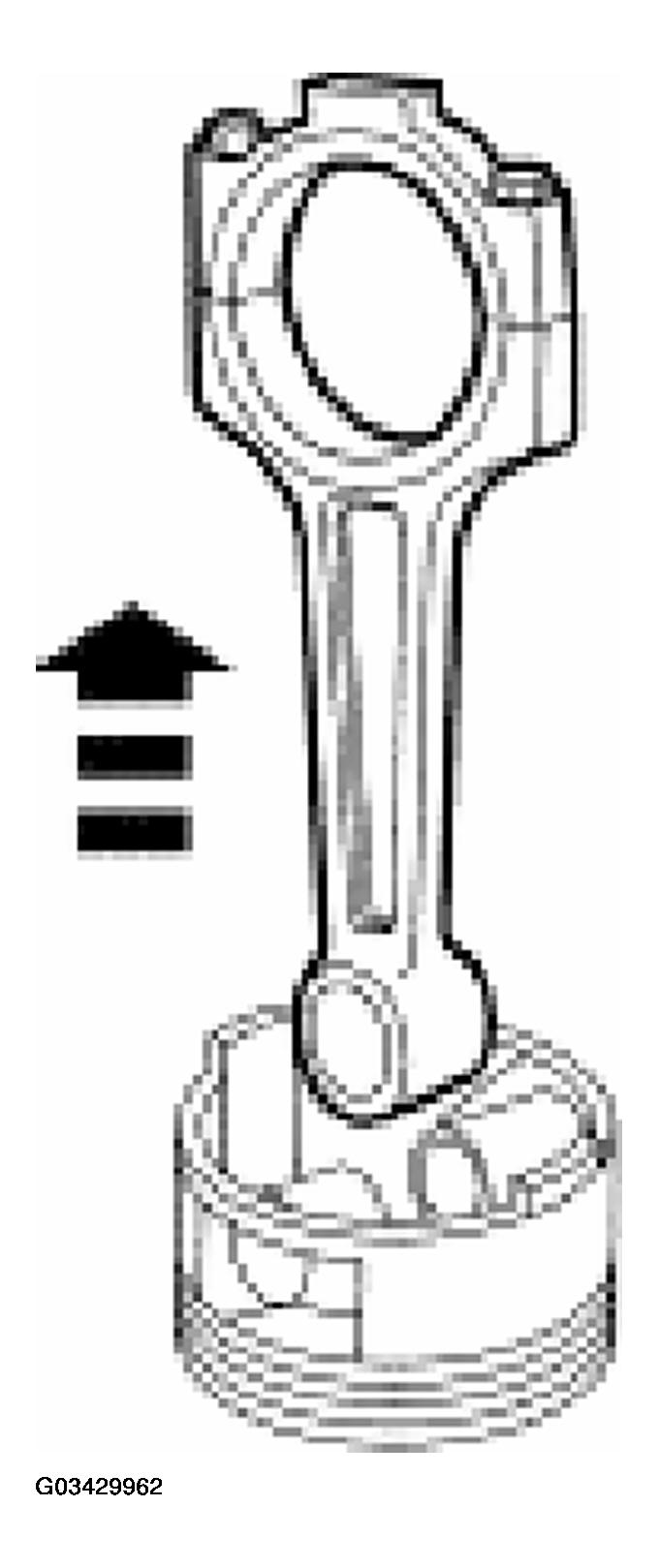

Remove the piston pin and the connecting rod from the piston.

Fig 7: Removing Piston Pin & Connecting Rod From Piston
Courtesy of FORD MOTOR CO.
Clean and inspect the connecting rod and the piston. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION for basic mechanical concerns.
