Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the piston pin and piston bore with clean engine oil and install the piston pin.

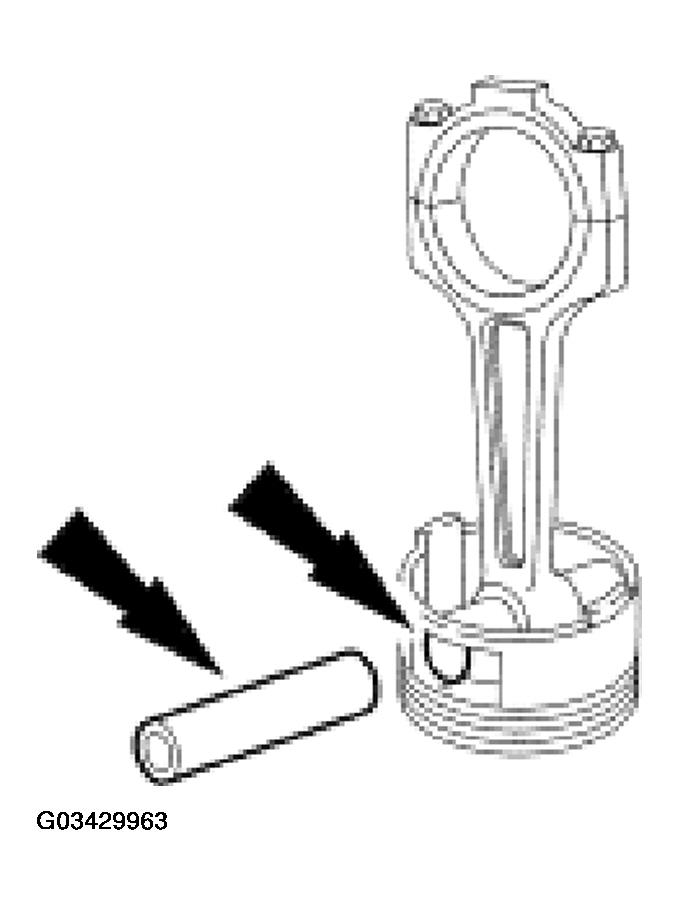

    Fig 1: Installing Piston Pin
    G03429963Courtesy of FORD MOTOR CO.
  2. Install the clips.

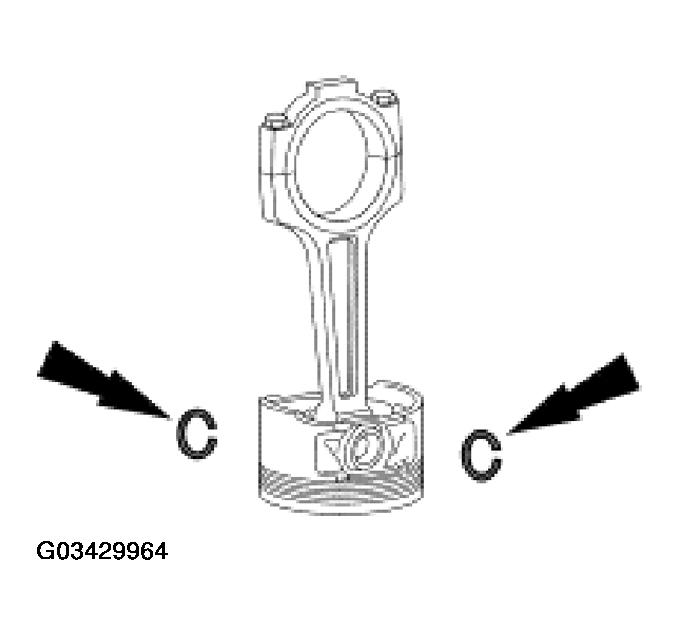

    Fig 2: Installing Clips
    G03429964Courtesy of FORD MOTOR CO.
  3. Check the piston ring end gap. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION for basic mechanical concerns.
  4. Lubricate the piston rings with clean engine oil.
  5. Install the first oil control ring.

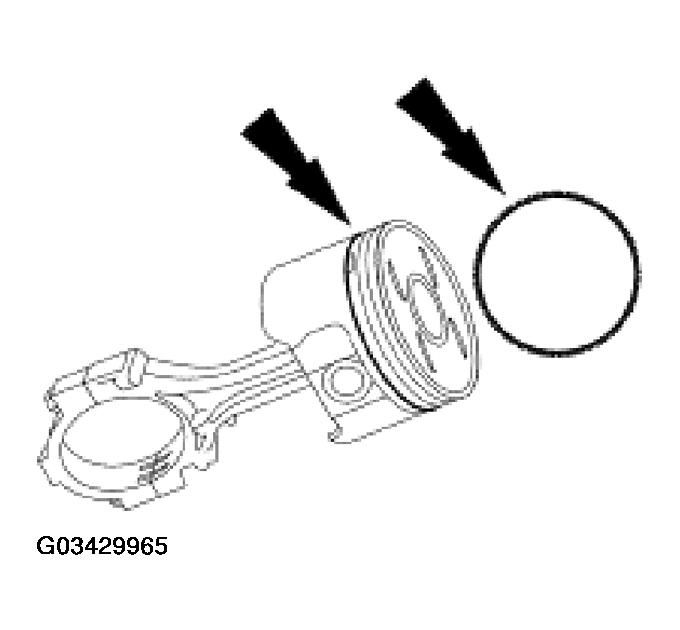

    Fig 3: Installing First Oil Control Ring
    G03429965Courtesy of FORD MOTOR CO.
  6. Install the oil control spacer ring.

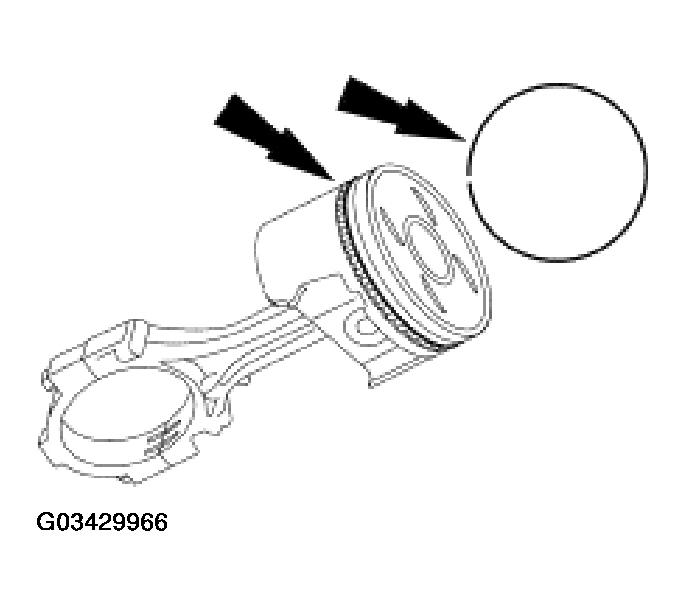

    Fig 4: Installing Oil Control Spacer Ring
    G03429966Courtesy of FORD MOTOR CO.
  7. Install the second oil control ring.

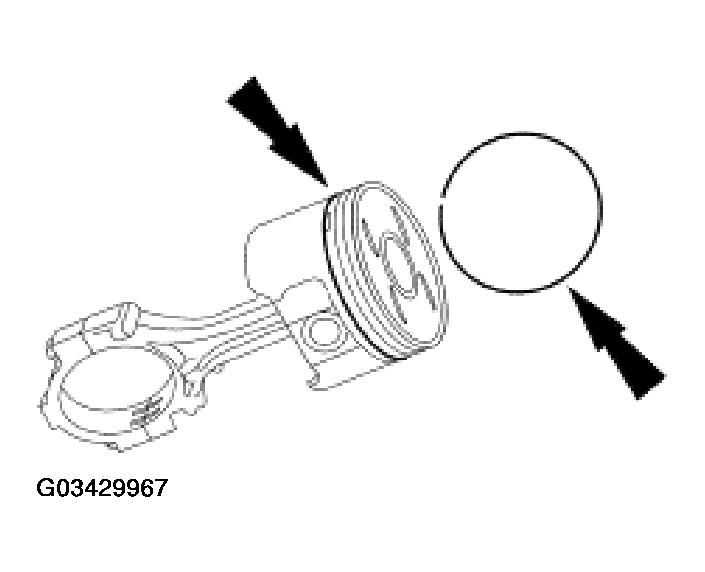

    Fig 5: Installing Second Oil Control Ring
    G03429967Courtesy of FORD MOTOR CO.
  8. Install the second compression ring.
    • The top of the second compression ring has a "0" on it. Position this side of the ring towards the top of the piston.

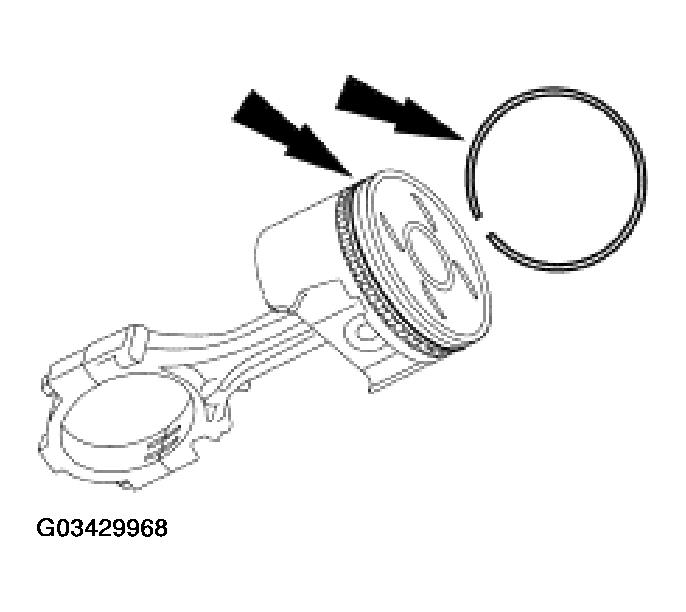

    Fig 6: Installing Second Compression Ring
    G03429968Courtesy of FORD MOTOR CO.
  9. Install the top compression ring.
    • The top compression ring can be installed with either side up.
    Fig 7: Installing Top Compression Ring
    G03429969Courtesy of FORD MOTOR CO.
