Cylinder Head: Disassembly

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If the components are to be reinstalled, they must be installed in the same position. Mark the components removed for location.
  1. Using the special tool, remove the keys, retainer, and spring.

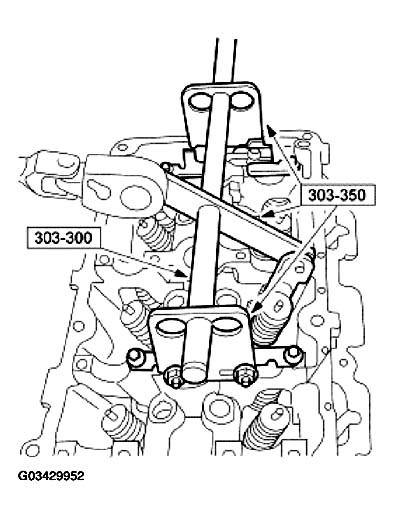

    Fig 1: Removing Keys, Retainer, & Spring Using Special Tool
    G03429952Courtesy of FORD MOTOR CO.
  2. Remove the valve from the cylinder head.
  3. Remove the valve stem seal.

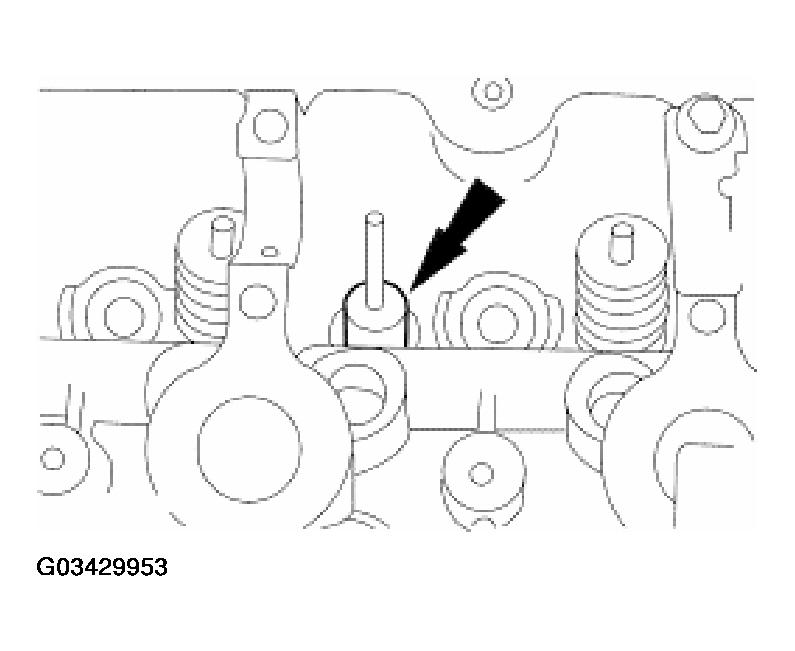

    Fig 2: Removing Valve Stem Seal
    G03429953Courtesy of FORD MOTOR CO.
