Cylinder Head: Assembly

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, install the valve stem seal.

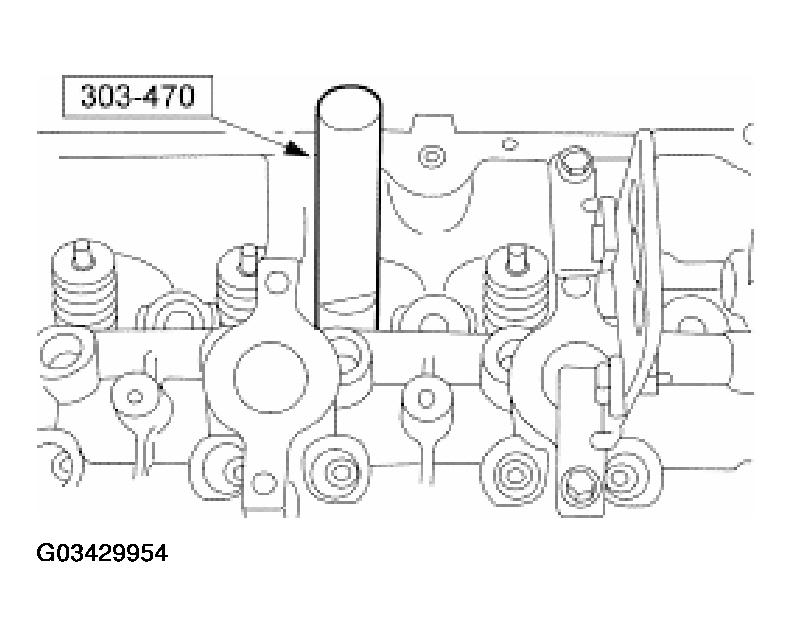

    Fig 1: Installing Valve Stem Seal Using Special Tool
    G03429954Courtesy of FORD MOTOR CO.
  2. Install the valve.
  3. Using the special tool, install the valve spring, retainer and key.

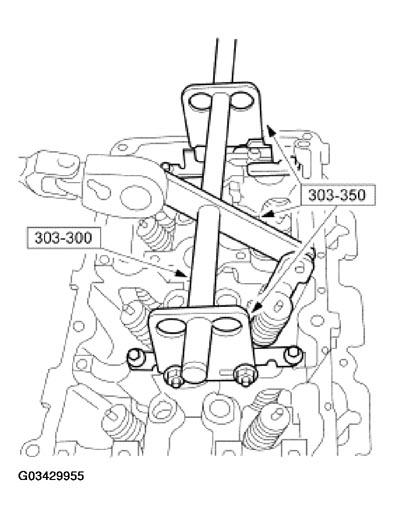

    Fig 2: Installing Valve Spring, Retainer & Key Using Special Tool
    G03429955Courtesy of FORD MOTOR CO.
