WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

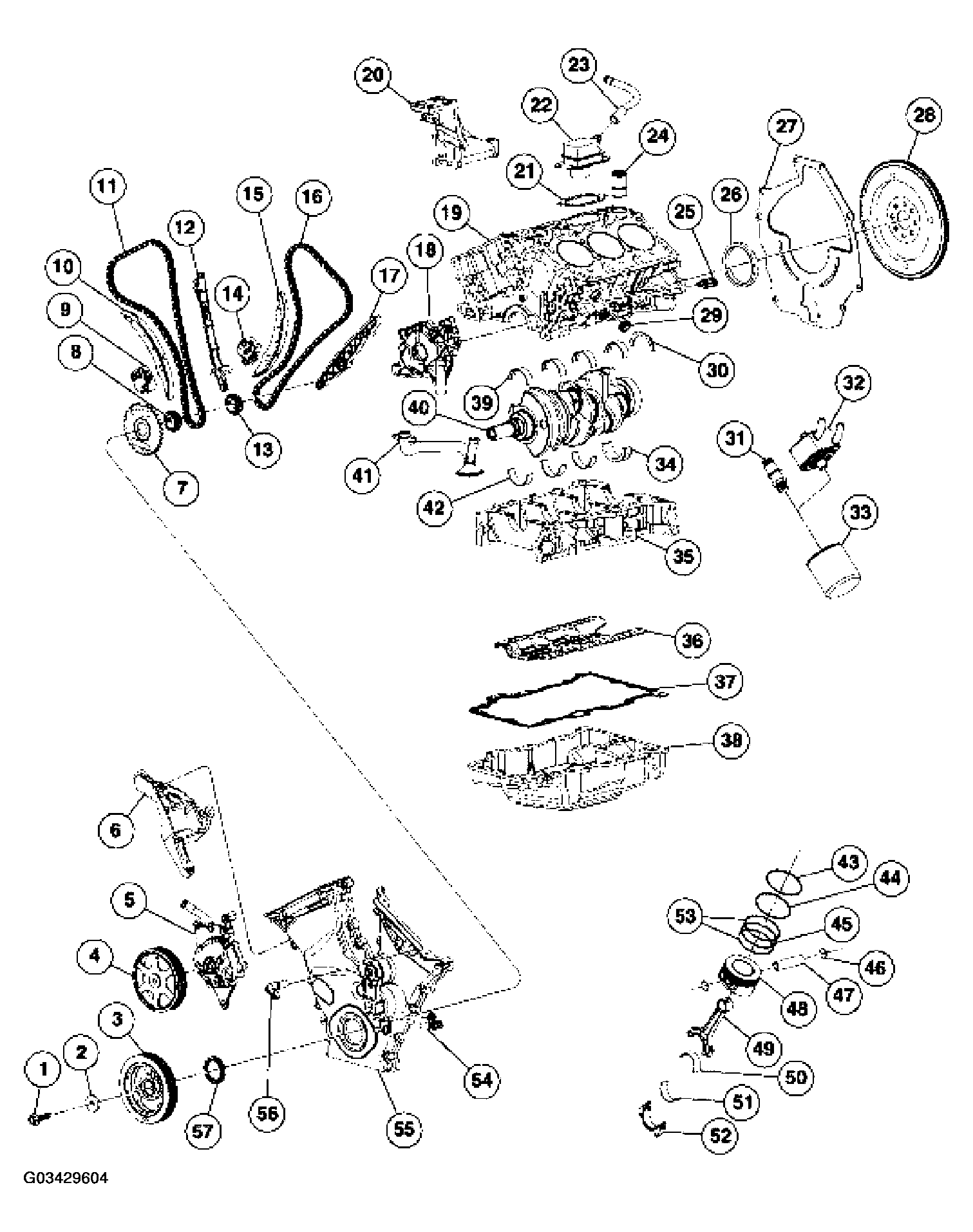

Fig 1: Exploded View Of Lower Engine Components (1 Of 2)
Courtesy of FORD MOTOR CO.

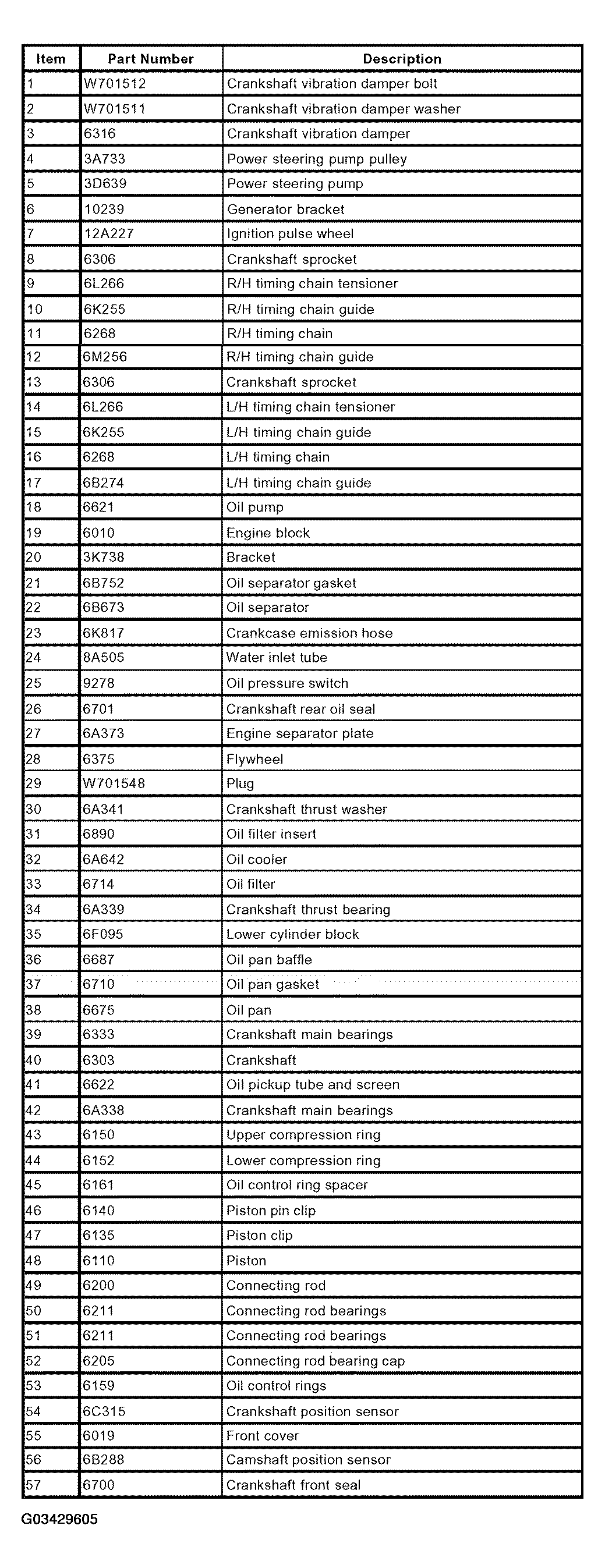

Fig 2: Exploded View Of Lower Engine Components (2 Of 2)
