Special Tool(s)

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Special Tool(s)
G03429537Courtesy of FORD MOTOR CO.
  1. Use a Dial Indicator Gauge with Holding Fixture to measure crankshaft end play.
  2. Position the crankshaft to the rear of the cylinder block.
  3. Zero the indicator.
  4. Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
    • If crankshaft end play exceeds specifications, install a new crankshaft thrust washer or crankshaft thrust main bearing. For 2.0L Zetec engine procedure see appropriate section in ENGINE - 2.0L ZETEC . For 3.0L (4V) engine procedure see appropriate section in ENGINE - 3.0L (4V) .

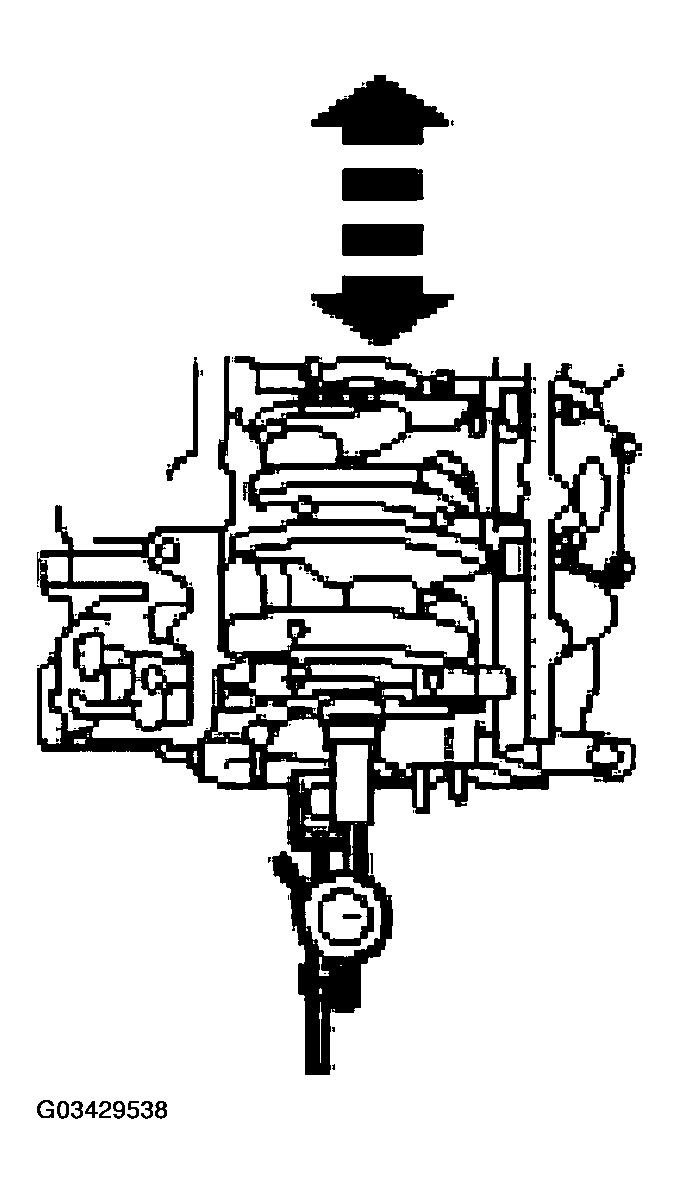

    Fig 2: Measuring Crankshaft End Play
    G03429538Courtesy of FORD MOTOR CO.
