Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clockspring. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
  2. Remove the multifunction switch.
    1. Disconnect the electrical connector.
    2. Remove the screws.
    3. Remove the multifunction switch.

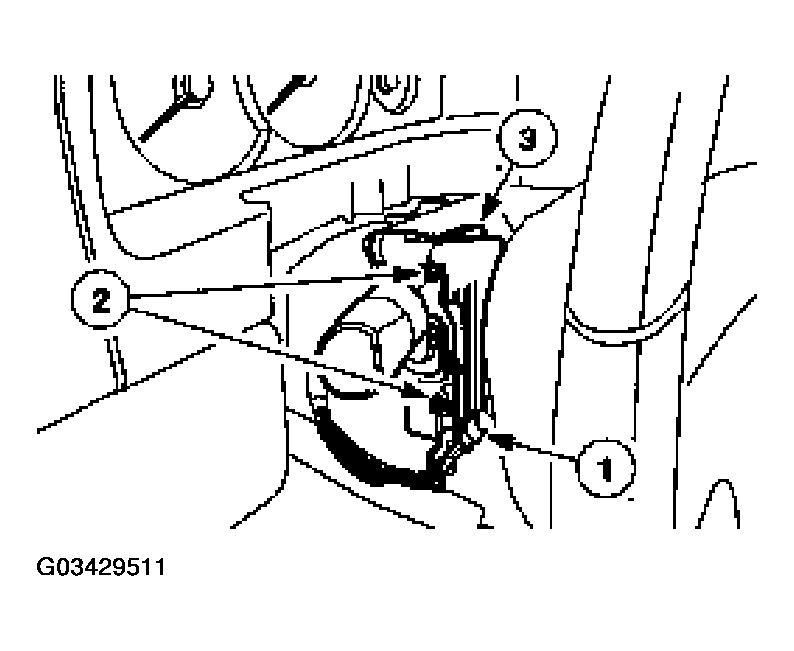

    Fig 1: Removing Multifunction Switch
    G03429511Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
