Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Depower the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
Remove the upper steering column shroud.

Fig 1: Removing Upper Steering Column Shroud
Courtesy of FORD MOTOR CO.
Remove the lower steering column shroud.
1. Remove the screws.
2. Remove the lower steering column shroud.
Fig 2: Removing Lower Steering Column Shroud
Courtesy of FORD MOTOR CO.
Disconnect the ignition switch electrical connector.

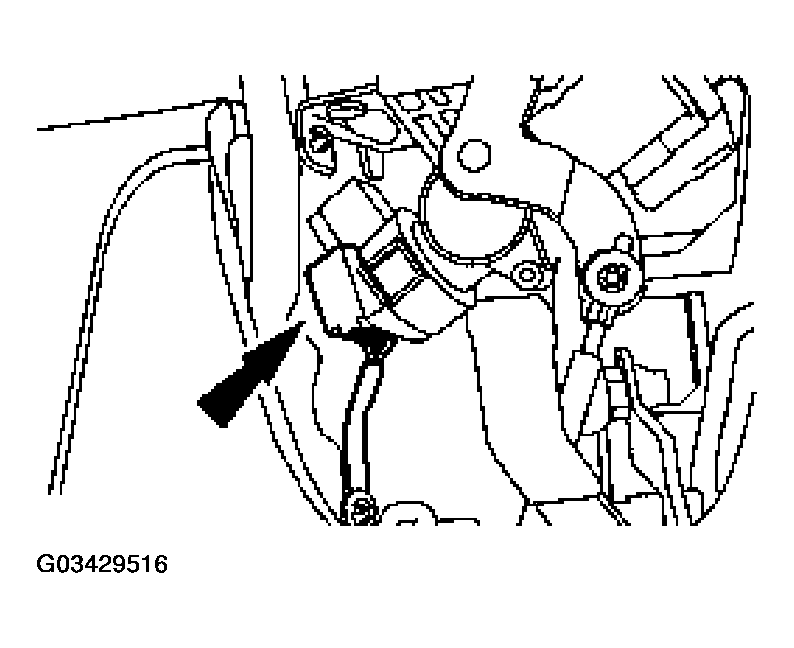

Fig 3: Disconnecting Ignition Switch Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: Lower steering column to lowest tilt position.

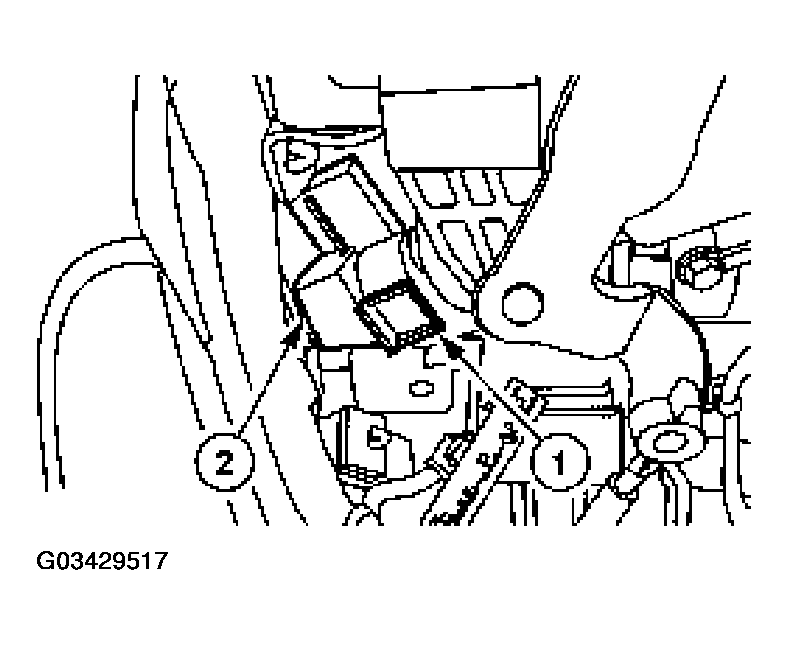

Fig 4: Removing Ignition Switch

Courtesy of FORD MOTOR CO.

Remove the ignition switch.
1. Press the two tabs.
2. Remove the ignition switch.
To install, reverse the removal procedure.
- Repower the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
