Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information refer to Section BATTERY, MOUNTING AND CABLES .
  2. Position the instrument panel center finish panel rearward from the instrument panel.

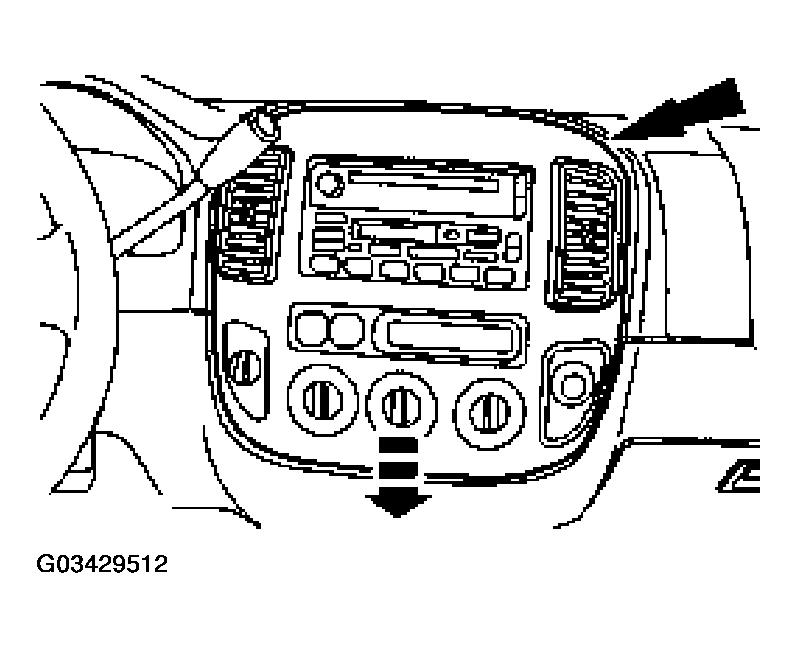

    Fig 1: Positioning Instrument Panel Center Finish Panel Rearward From Instrument Panel
    G03429512Courtesy of FORD MOTOR CO.
  3. Remove the hazard flasher switch.
    1. Disconnect electrical connector.
    2. Remove the hazard flasher switch.

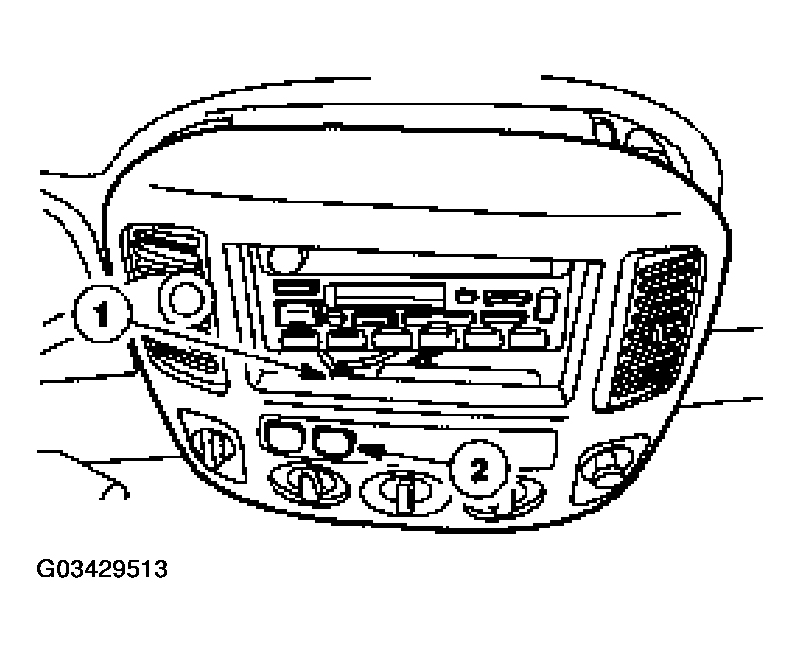

    Fig 2: Removing Hazard Flasher Switch
    G03429513Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
