Steering Wheel: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front seats rearward.
  2. Depower the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
  3. Lower the steering wheel air bag connector access cover.
    Fig 1: Lowering Steering Wheel Air Bag Connector Access Cover
    G03429464Courtesy of FORD MOTOR CO.
  4. Turn the pinion shaft to release the steering wheel from the column shaft.
    Fig 2: Releasing Steering Wheel From Column Shaft
    G03429465Courtesy of FORD MOTOR CO.
  5. Remove the steering wheel.
    1. Position the steering wheel rearward.
    2. Disconnect the electrical connector.

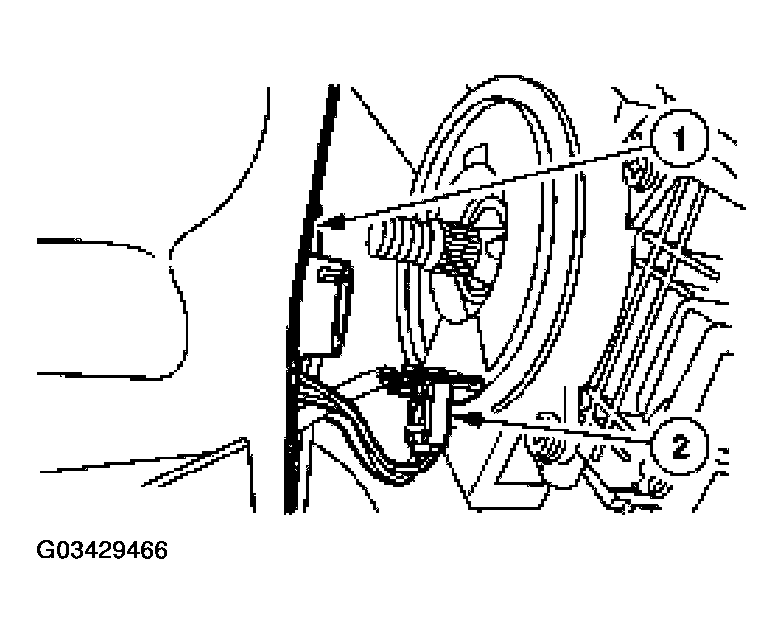

    Fig 3: Removing Steering Wheel
    G03429466Courtesy of FORD MOTOR CO.
