Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the boot aside.

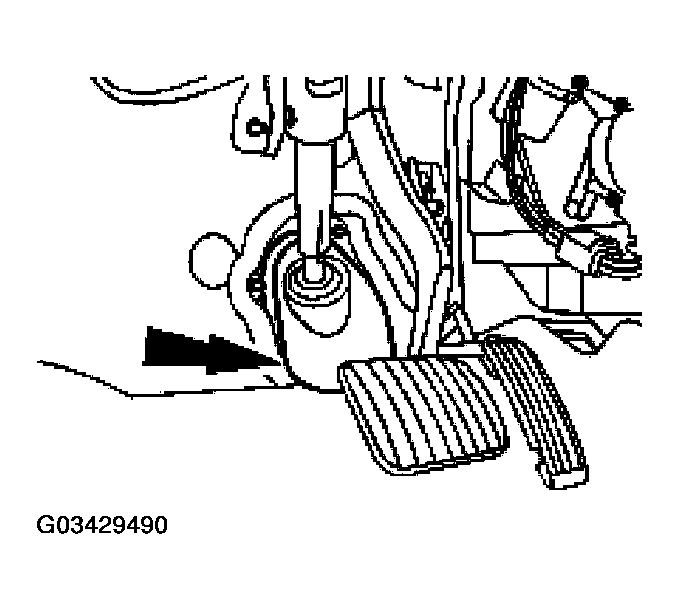

    Fig 1: Positioning Boot Aside
    G03429490Courtesy of FORD MOTOR CO.
  2. Remove and discard the pinch bolt/nut and disconnect the steering column shaft from the flexible coupling.
    Fig 2: Removing Pinch Bolt/Nut And Disconnecting Steering Column Shaft From Flexible Coupling
    G03429491Courtesy of FORD MOTOR CO.
  3. Remove the left hand front tire.
  4. Remove the steering column shaft pin.

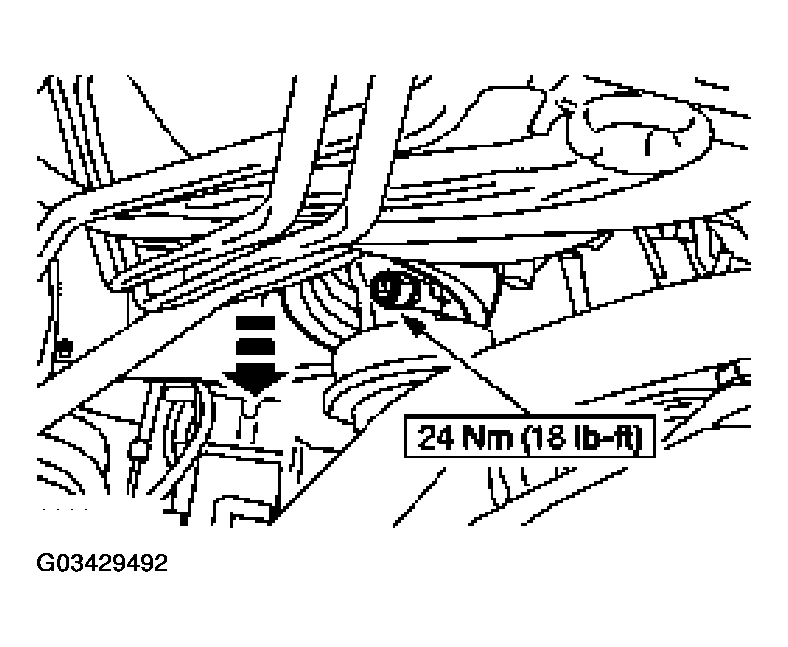

    Fig 3: Removing Steering Column Shaft Pin
    G03429492Courtesy of FORD MOTOR CO.
  5. Lower the vehicle.
  6. Remove the steering column shaft.
  7. To install, reverse the removal procedure.
