Power Steering Pump Pulley: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt and position aside. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
  2. Using the special tool, remove the power steering pump pulley.

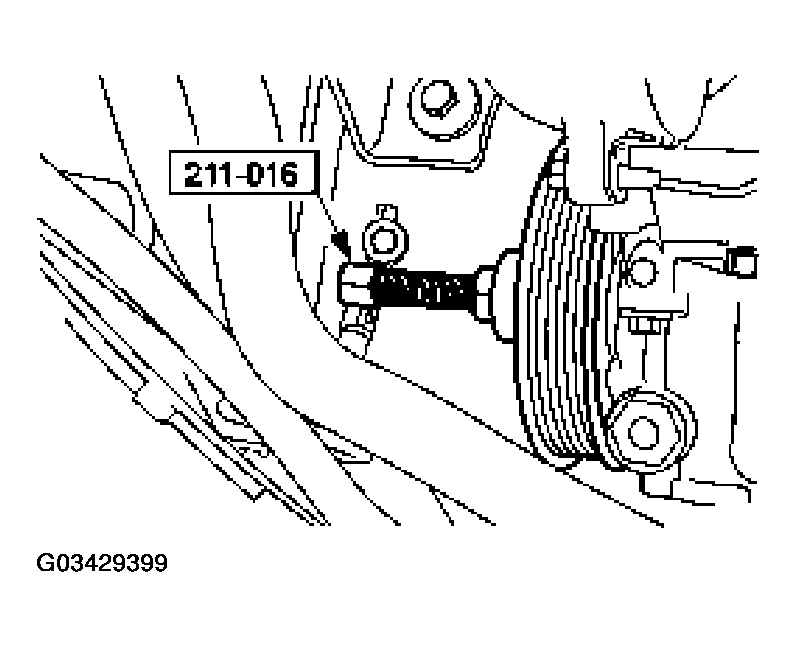

    Fig 1: Removing Power Steering Pump Pulley
    G03429399Courtesy of FORD MOTOR CO.
