Power Steering Pump - 2.0L Zetec: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Rotate the tensioner clockwise and remove the belt from the power steering pump pulley. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
Disconnect the electrical connector.

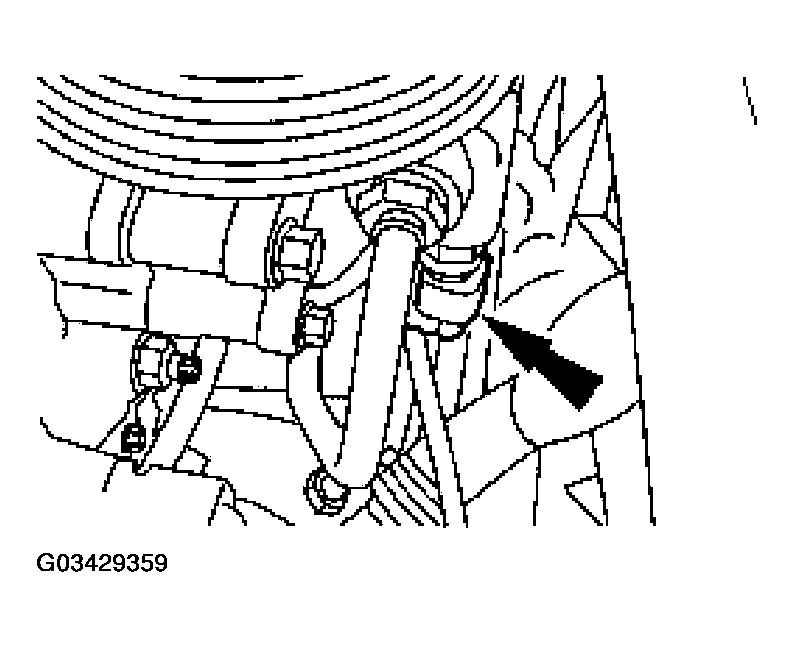

Fig 1: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: Drain the power steering fluid into a suitable drain pan.

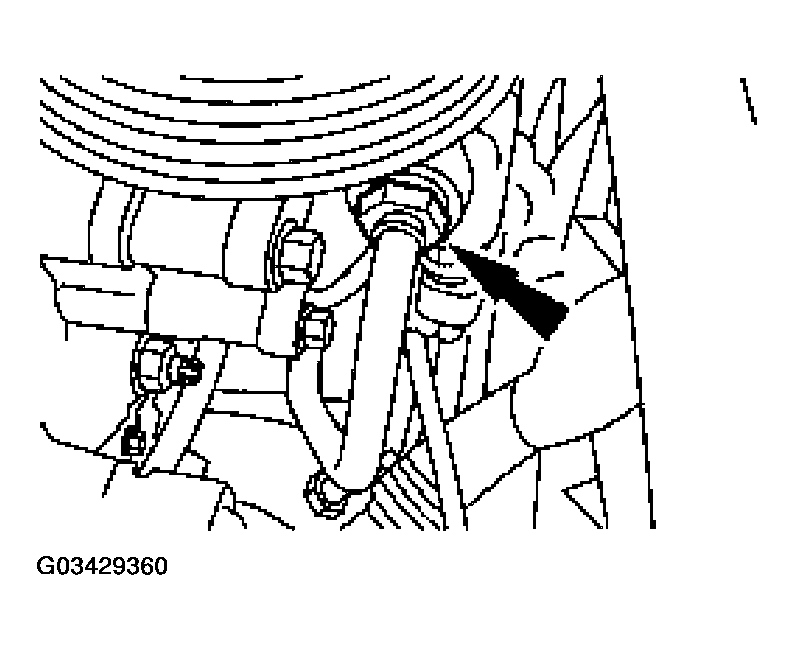

Fig 2: Disconnecting Power Steering Pressure Line

Courtesy of FORD MOTOR CO.

Disconnect the power steering pressure line.
Remove the lower power steering pump bolts.

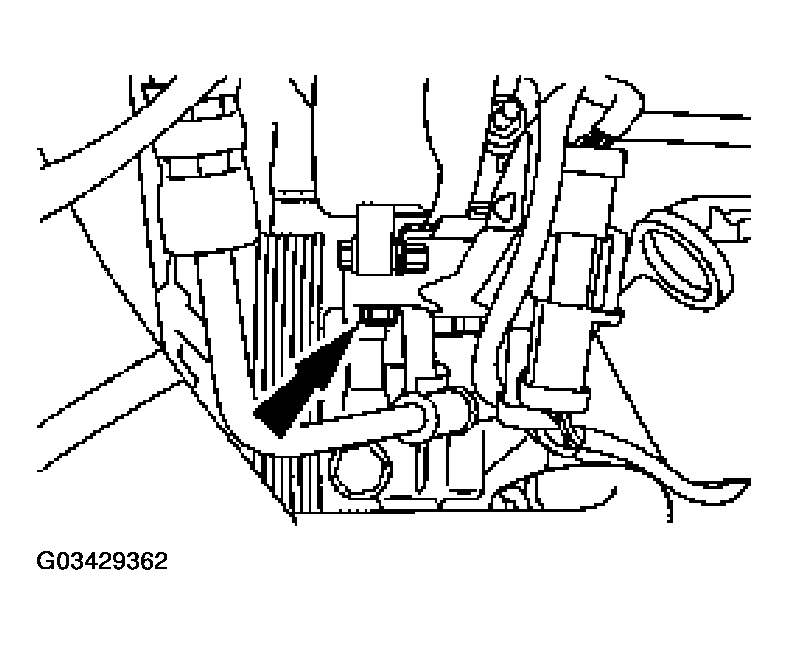

Fig 3: Removing Lower Power Steering Pump Bolts
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Remove the power steering pressure line bracket bolt.

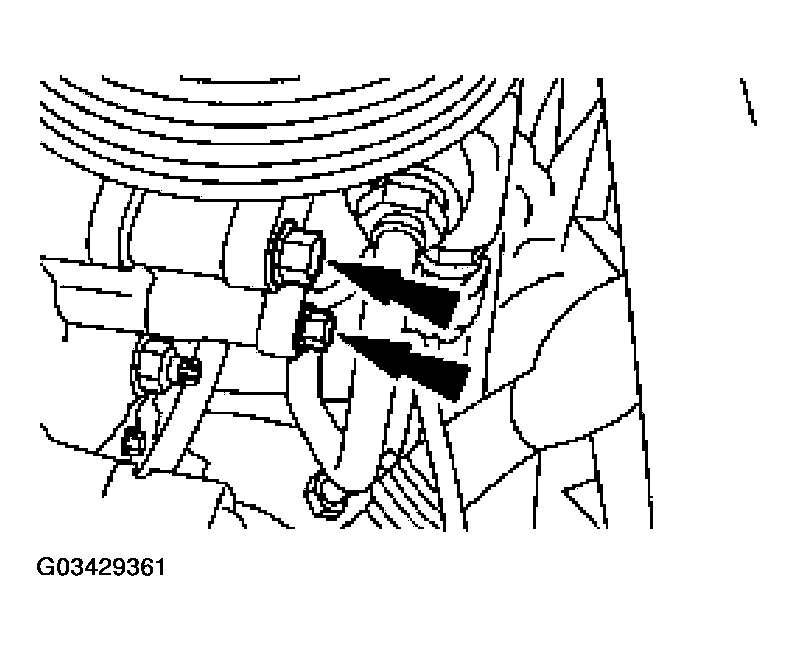

Fig 4: Removing Power Steering Pressure Line Bracket Bolt
Courtesy of FORD MOTOR CO.
Disconnect the power steering low pressure hose.

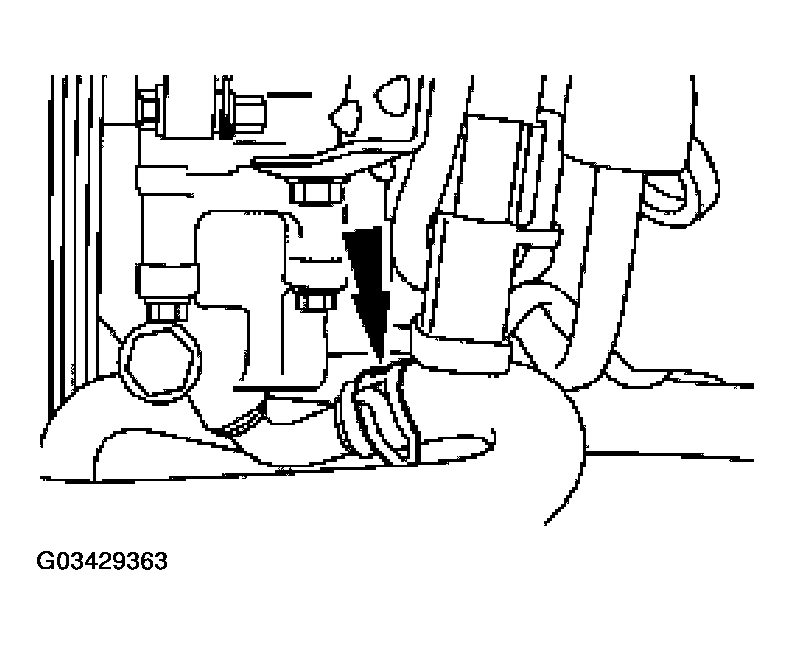

Fig 5: Disconnecting Power Steering Low Pressure Hose
Courtesy of FORD MOTOR CO.
Remove the bolts and the power steering pump.

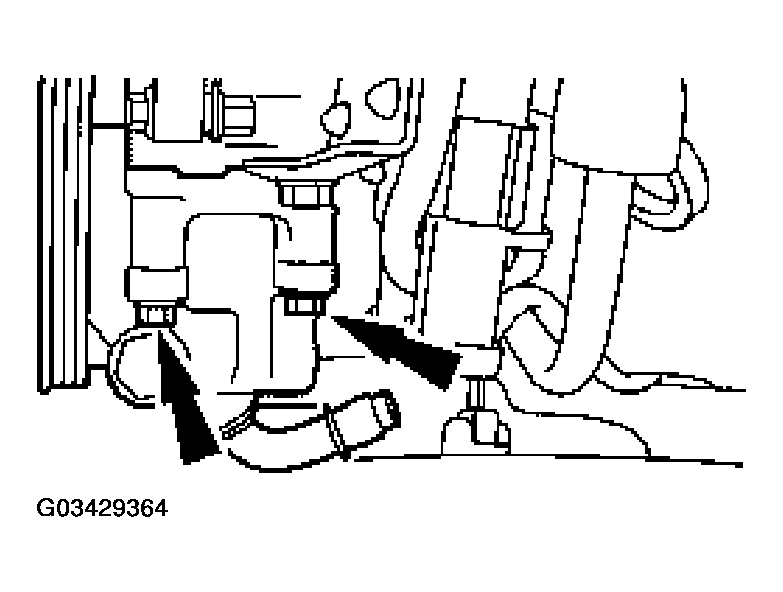

Fig 6: Removing Bolts And Power Steering Pump
Courtesy of FORD MOTOR CO.
Using the special tool, remove the power steering pump pulley.

Fig 7: Removing Power Steering Pump Pulley
Courtesy of FORD MOTOR CO.
