Transaxle Support Insulator - Rear: Removal

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. .
  2. Support the transaxle using a suitable jack.
  3. Remove the lower rear transaxle support insulator nuts.

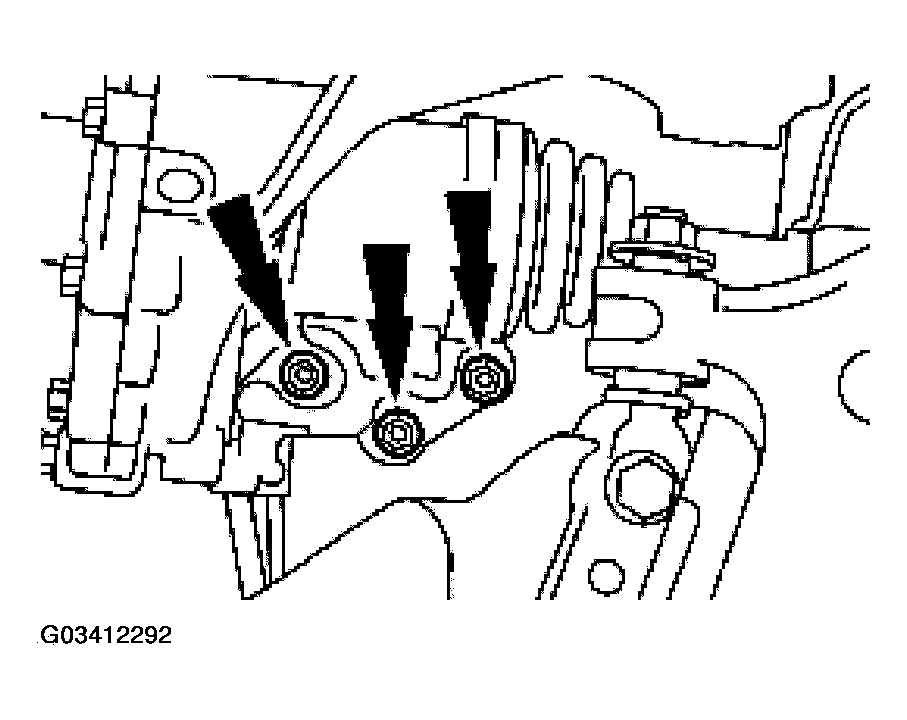

    Fig 1: Removing Lower Rear Transaxle Support Insulator Nuts
    G03412292Courtesy of FORD MOTOR CO.
    4. NOTE: The transaxle may have to be lowered to gain clearance to remove the support insulator.
  4. Remove the lower rear transaxle support insulator.
    1. Remove the through bolt.
    2. Remove the insulator.

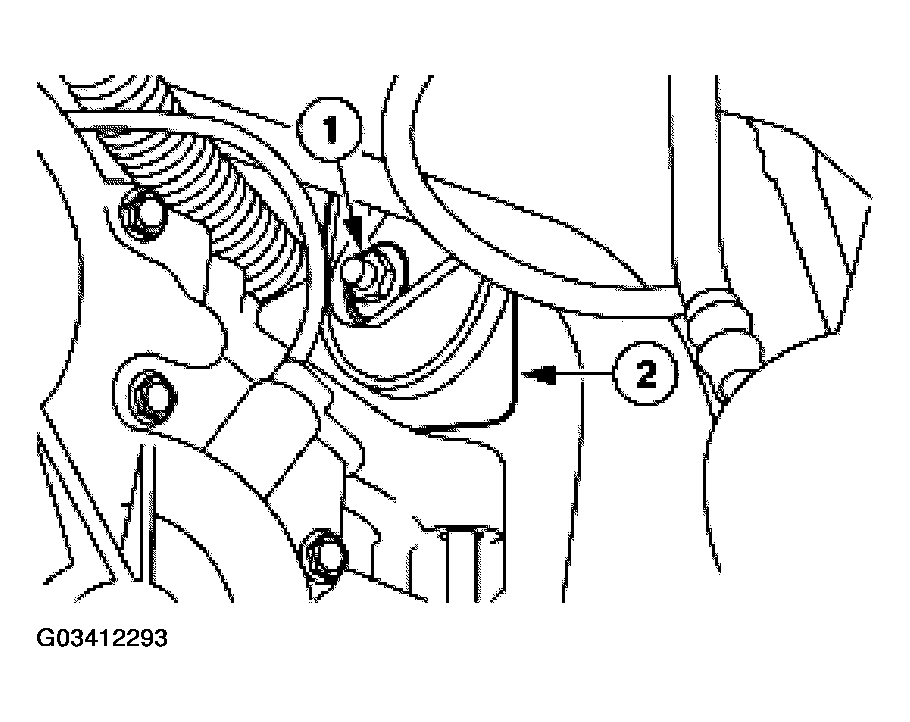

      Fig 2: Removing Through Bolt
      G03412293Courtesy of FORD MOTOR CO.
