Shift Solenoids (SS): Removal

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the main control valve body. Refer to MAIN CONTROL VALVE BODY .
  2. Remove the line pressure solenoid.
    1. Remove the bolt.
    2. Remove the solenoid from the valve body.

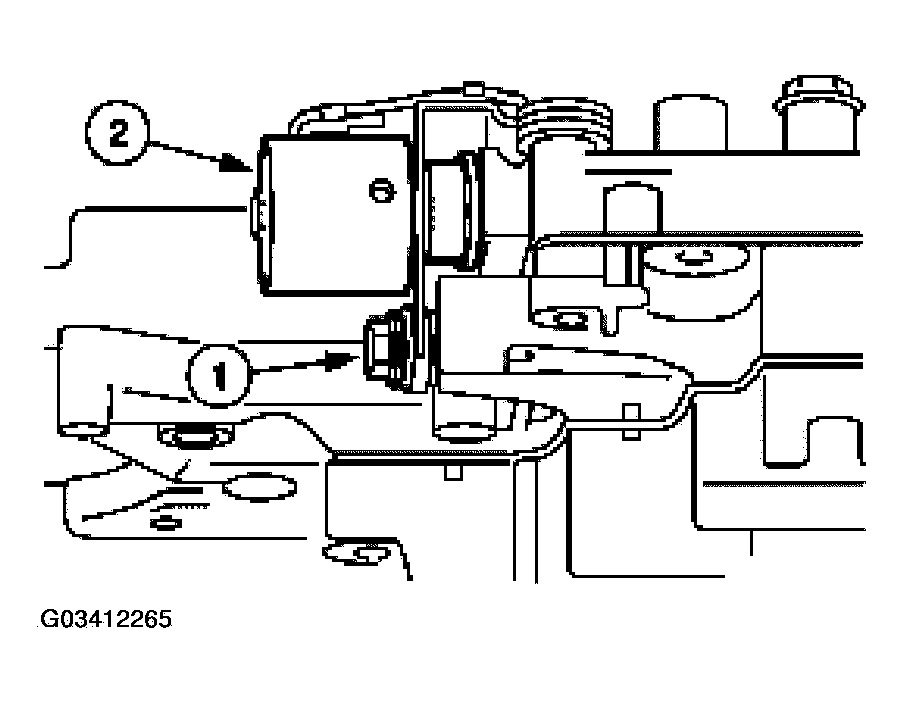

      Fig 1: Removing Solenoid From Valve Body
      G03412265Courtesy of FORD MOTOR CO.
  3. Remove the solenoids.
    1. Remove the bolts.
    2. Remove the solenoids from the valve body.
      Fig 2: Removing Bolts
      G03412266Courtesy of FORD MOTOR CO.
  4. Remove the solenoid harness.
    1. Remove the bolts.
    2. Remove the harness.

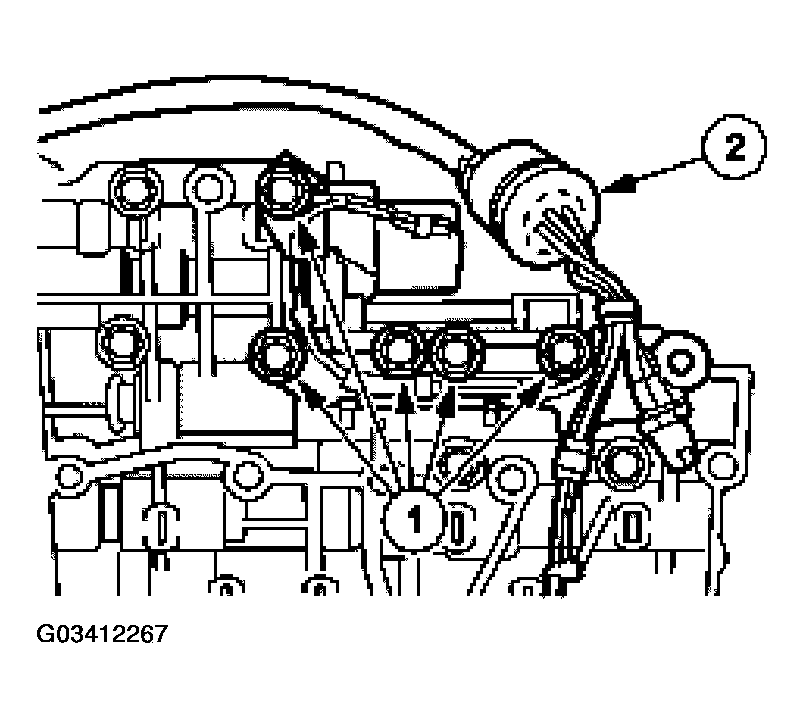

      Fig 3: Removing Solenoid Harness
      G03412267Courtesy of FORD MOTOR CO.
  5. Remove and discard the solenoid O-rings.
    Fig 4: Removing And Discarding Solenoid O-Rings
    G03412268Courtesy of FORD MOTOR CO.
