Shift Solenoids (SS): Installation

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

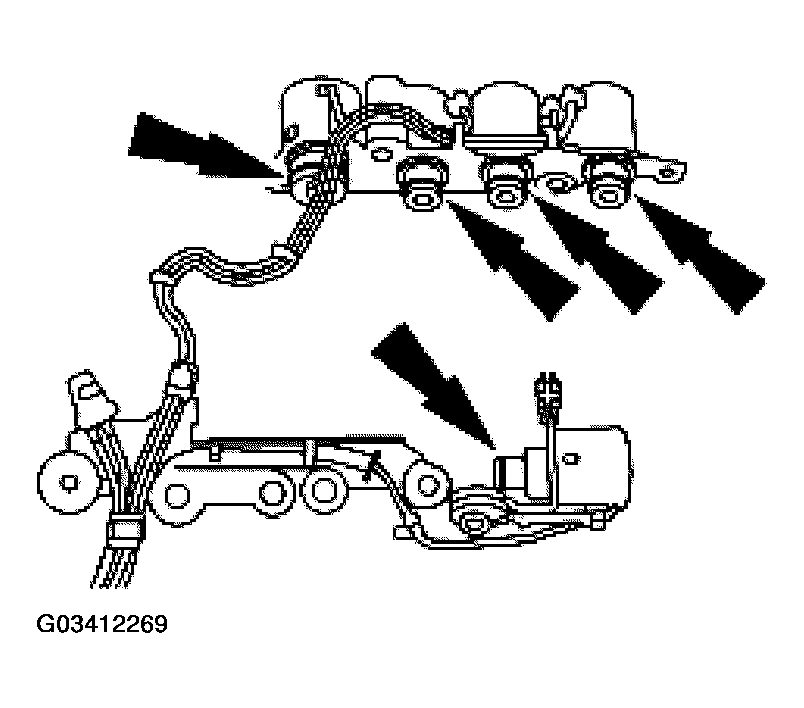

  1. Install new O-rings on the solenoids.
    Fig 1: Installing O-Rings On The Solenoids
    G03412269Courtesy of FORD MOTOR CO.

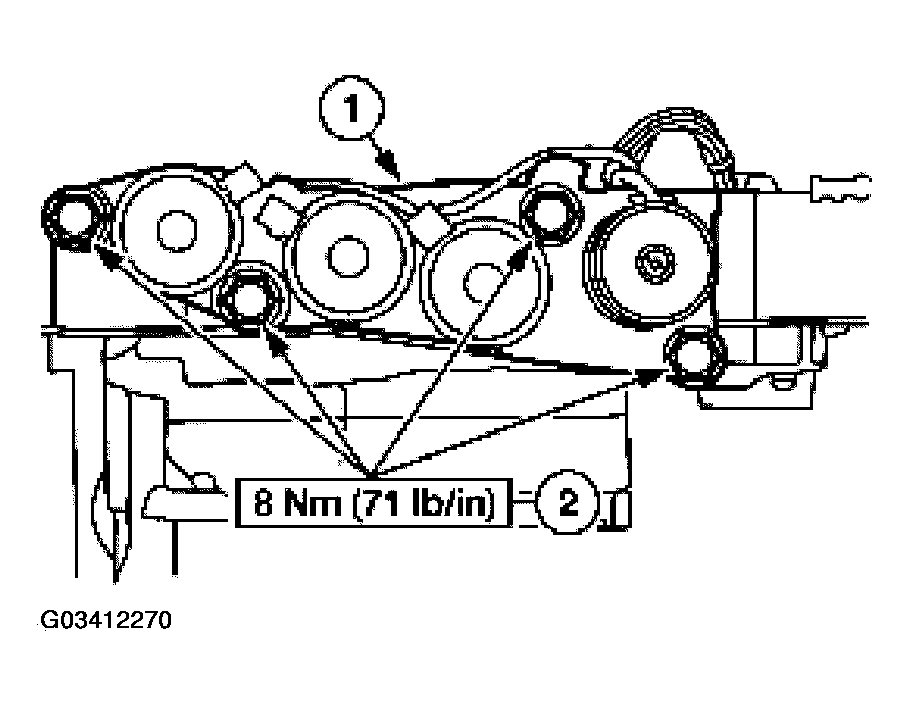

  2. Install the valve body solenoids.
    1. Position the solenoids.
    2. Install the bolts.
      Fig 2: Installing Valve Body Solenoids
      G03412270Courtesy of FORD MOTOR CO.

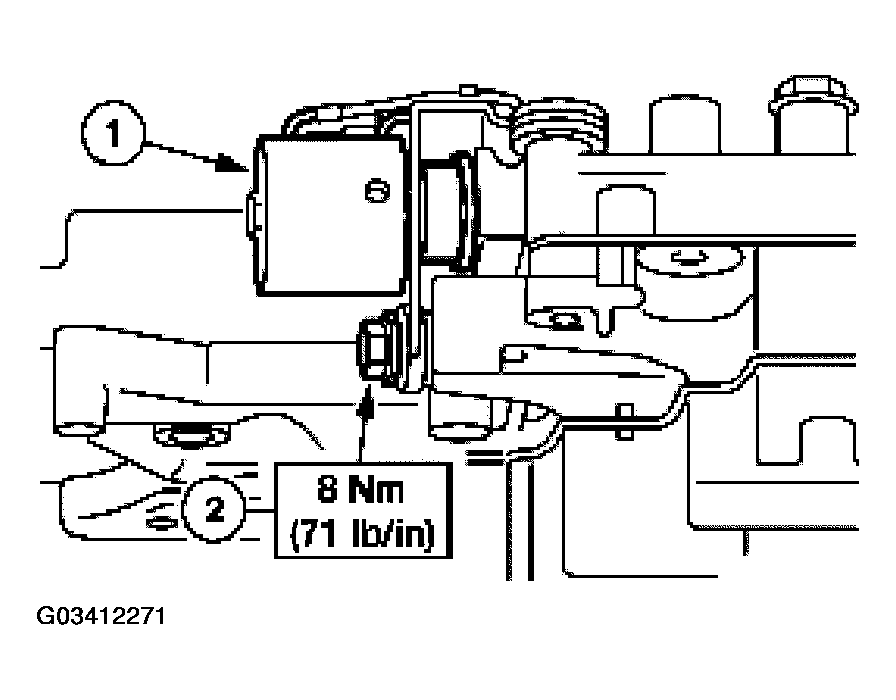

  3. Install the line pressure solenoid.
    1. Position the solenoid.
    2. Install the bolt.
      Fig 3: Installing Bolt
      G03412271Courtesy of FORD MOTOR CO.

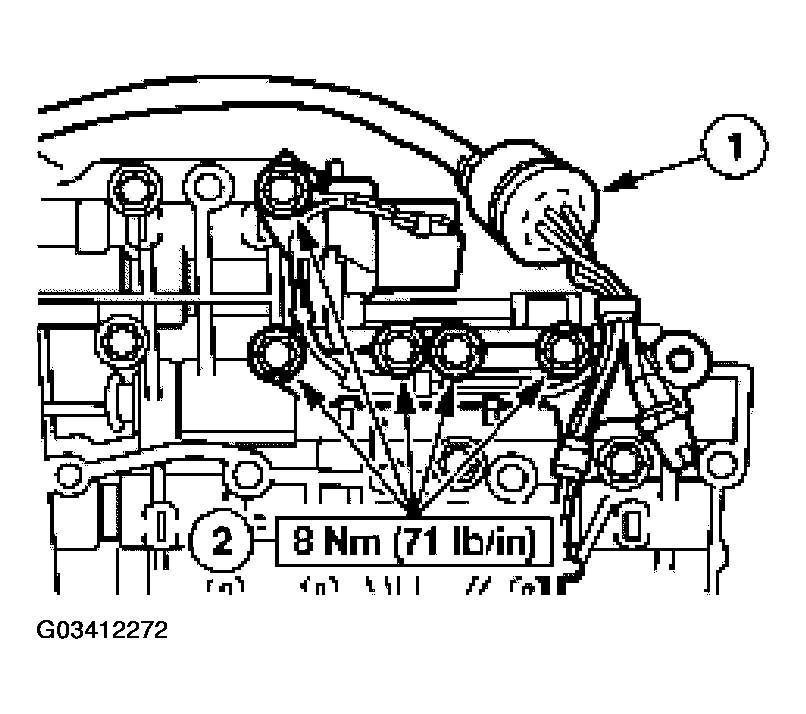

  4. Install the solenoid harness.
    1. Position the harness.
    2. Install the bolts.
      Fig 4: Installing Solenoid Harness
      G03412272Courtesy of FORD MOTOR CO.
